Issued 4/98
4
O1EN–OPC–[3V–237532]–12

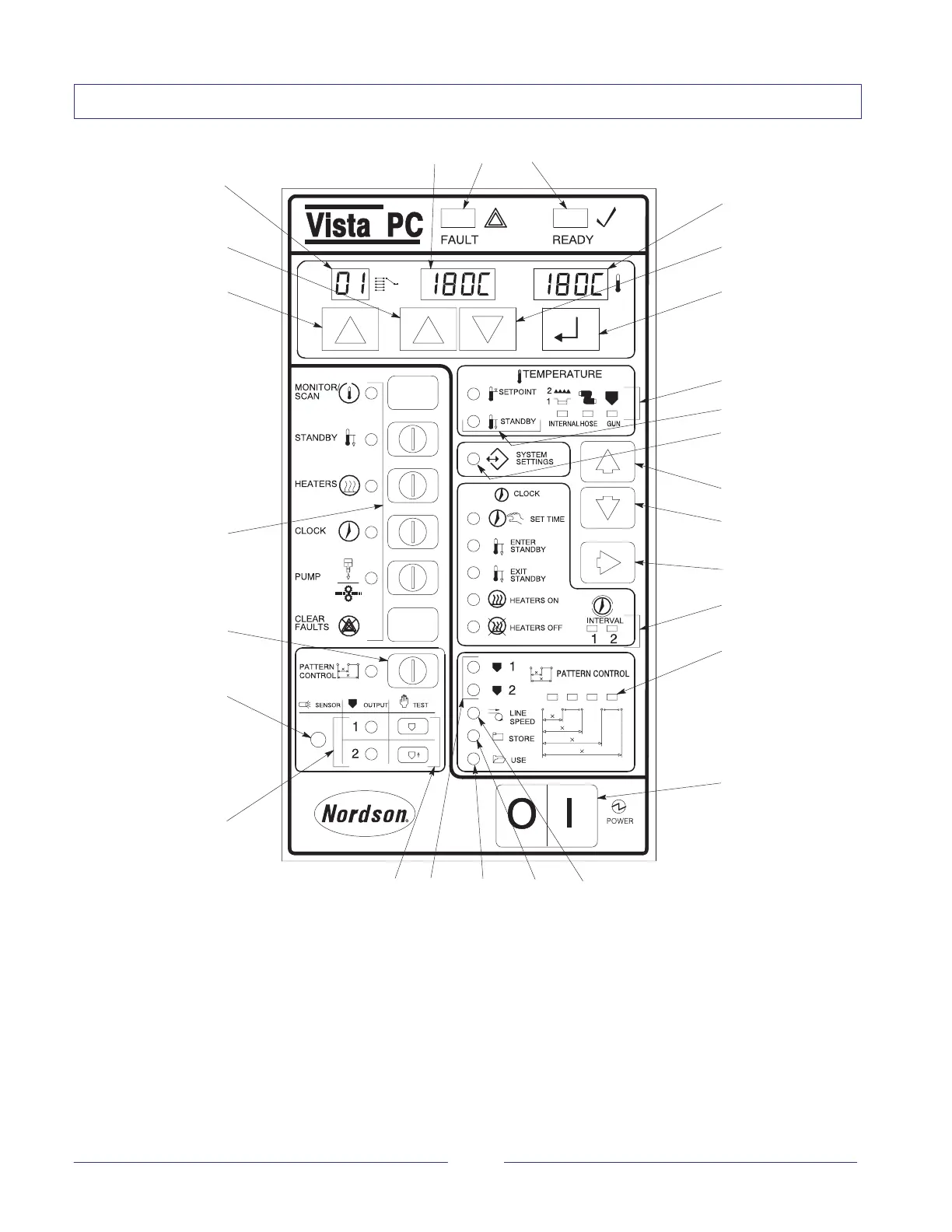

Vista Control Panel
3
2
1
27
25
24
18
17
16
15
14
13
11
10
9
8
7
4 5 6
23 22
20
19
21
12
26
1. Up key for selector display
2. Up key for multipurpose display
3. Selector display
4. Multipurpose display
5. FAULT light
6. READY light
7. Actual temperature display
8. Down key for multipurpose display
9. Enter key
10. Zone indicator lights
11. STANDBY or SETPOINT
temperature light
12. SYSTEM SETTINGS light
13. Up key for system settings
14. Down key for system settings
15. Move right key
16. Clock INTERVAL lights
17. Bead position 1 through 4 lights
18. POWER switch
19. LINE SPEED light
20. STORE light
21. USE light
22. Output lights
23. Test output keys
24. Output lights
25. SENSOR light
26. PATTERN CONTROL On/Off key
27. Control keys
