In almost all applications, the material flowability is essential for a good dispensing result.
Make sure, that the pumps cavities are completely filled at max. dosing speed. The material
flowability is crucial for the pumps speed therefore do not just start the pump without thinking
about the rheology* of the product. The suction side pressure and pressure side back
pressure together with the dosing velocity are key for the long-life time of your ASYMTEK
pump.
* fluid science and flowability according molecular structure
4. Assembling and disassembling
your aCCura-Mix has been developed for dispensing. Each unit is tested in the factory. The
design is easy, and you do not need special tools. Hex keys M3, M2,5 and M2
Important notice: please note, that the rotor assembly is 1 piece and cannot be
disassembled.

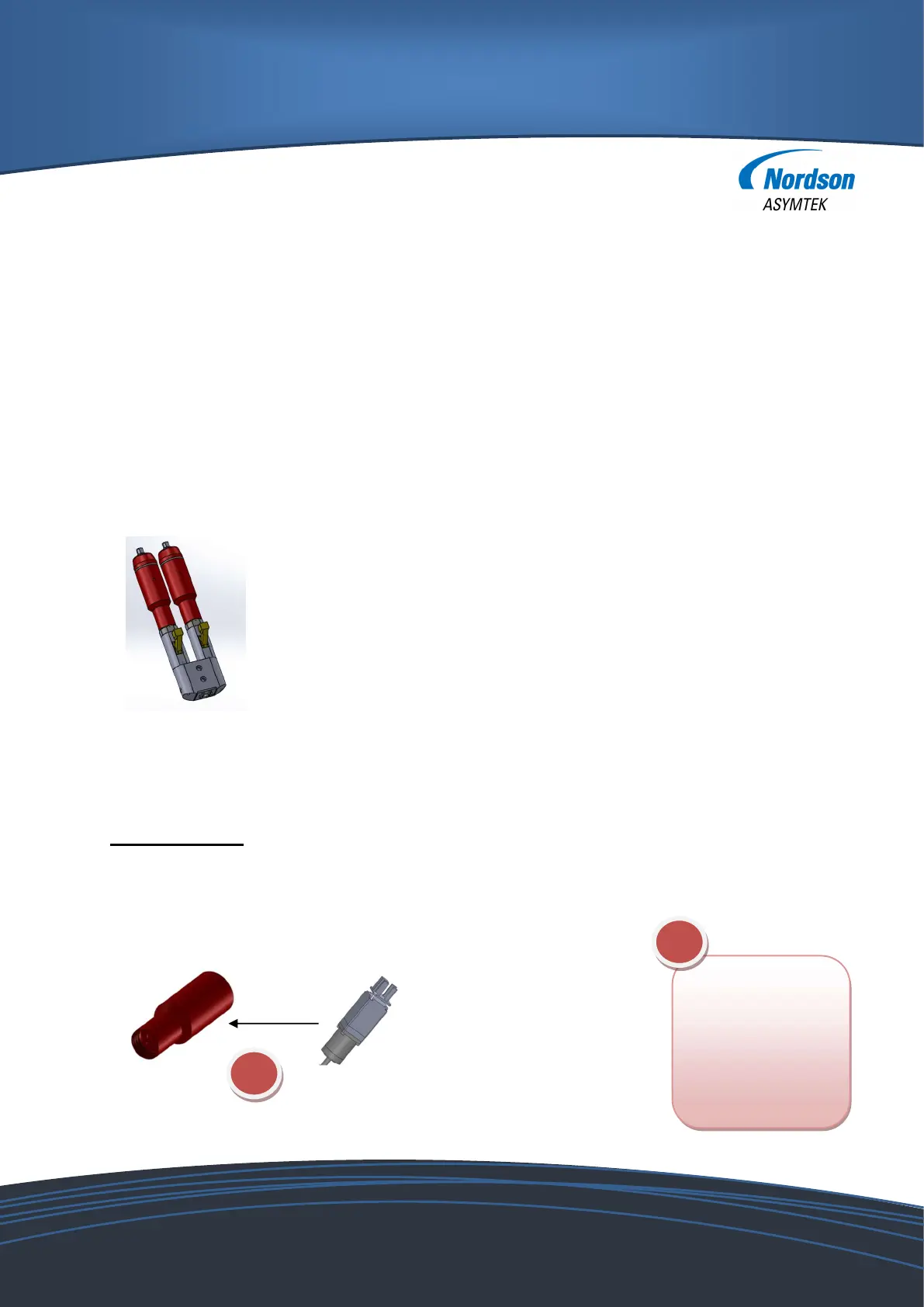

4.1 Assembly (pictures may show similar items)
A
2 M
otor housing
1 Motor
4 x M3x8 DIN912
are needed for
assembly.
A

Nordson ASYMTEK Specifications

General

Fluid Types	Adhesives, underfills
Dispensing Technologies	Jet, needle
Work Area	Varies by model
Vision System	High-resolution cameras for alignment and inspection
Applications	Underfill, encapsulation, solder paste dispensing, adhesive dispensing
Material Compatibility	Compatible with a wide range of materials, including those with high viscosity or abrasive properties
