4.6 Installing the Plug-On Relay Board
The Plug-On relay board contains the alarm shunt, propped door,
and forced door relays.
Output Relay Connector
Alarm Shunt K2 P1
Propped Door K3 P2
Forced Door K4 P3
Use the wire harnesses supplied with the relay board to connect
totherelays.Thewirecolorsareshowninthetablebelow.
Wire Color Relay Connection
Green Normally Open
Blue Common
Gray Normally Closed

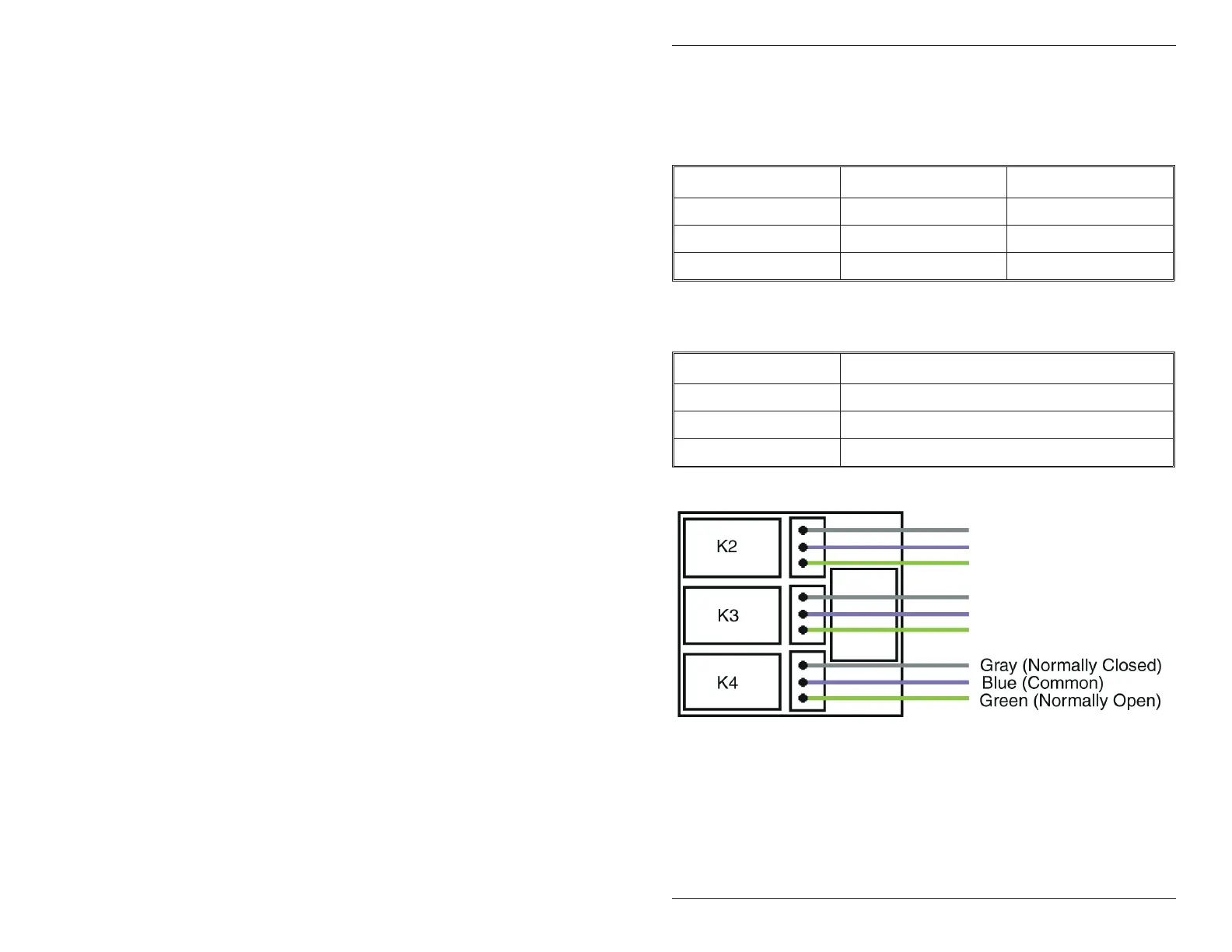

Figure 9 Wiring an Accessory Relay Board
IEI 232e Standalone Installation/Programming Manual
Document # 6054004, Rev. 2.1 11
