Nortek IEI 232e Standalone User Manual

4.4 Shunting a Normally Closed Zone
Usethefollowingstepstoemploythe232ekeypadtoshuntanor-
mally closed zone:
1. Connect the blue wire (common) to the common connection
on the door position switch.
2. Connect the green wire (normally open) to the normally
closed connection on the door position switch.

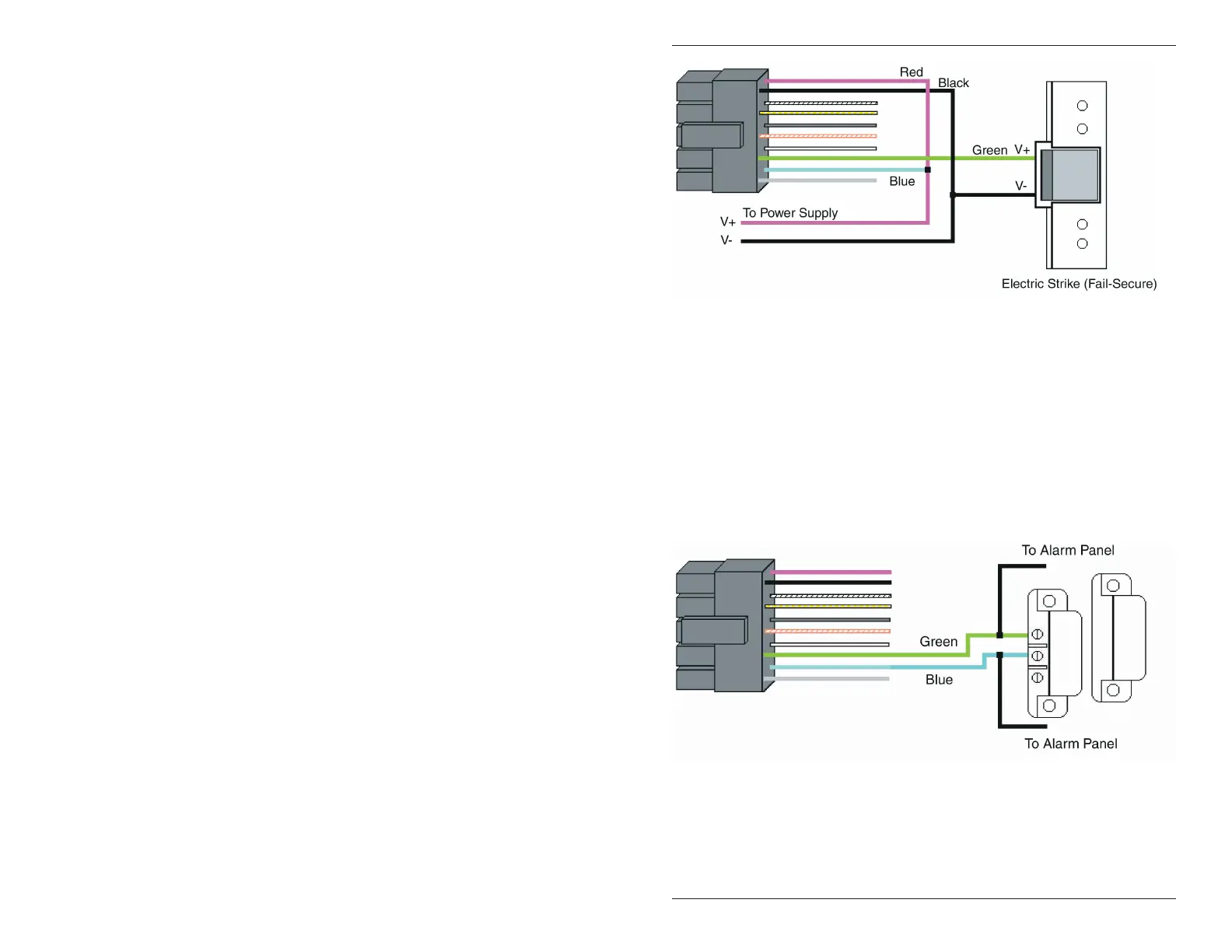

Figure 6 Wiring 232e Keypad to Electric Strike
Figure 7 Shunting a Normally Closed Zone
IEI 232e Standalone Installation/Programming Manual
Document # 6054004, Rev. 2.1 9
