Installing the 8010co chassis into the rack 17

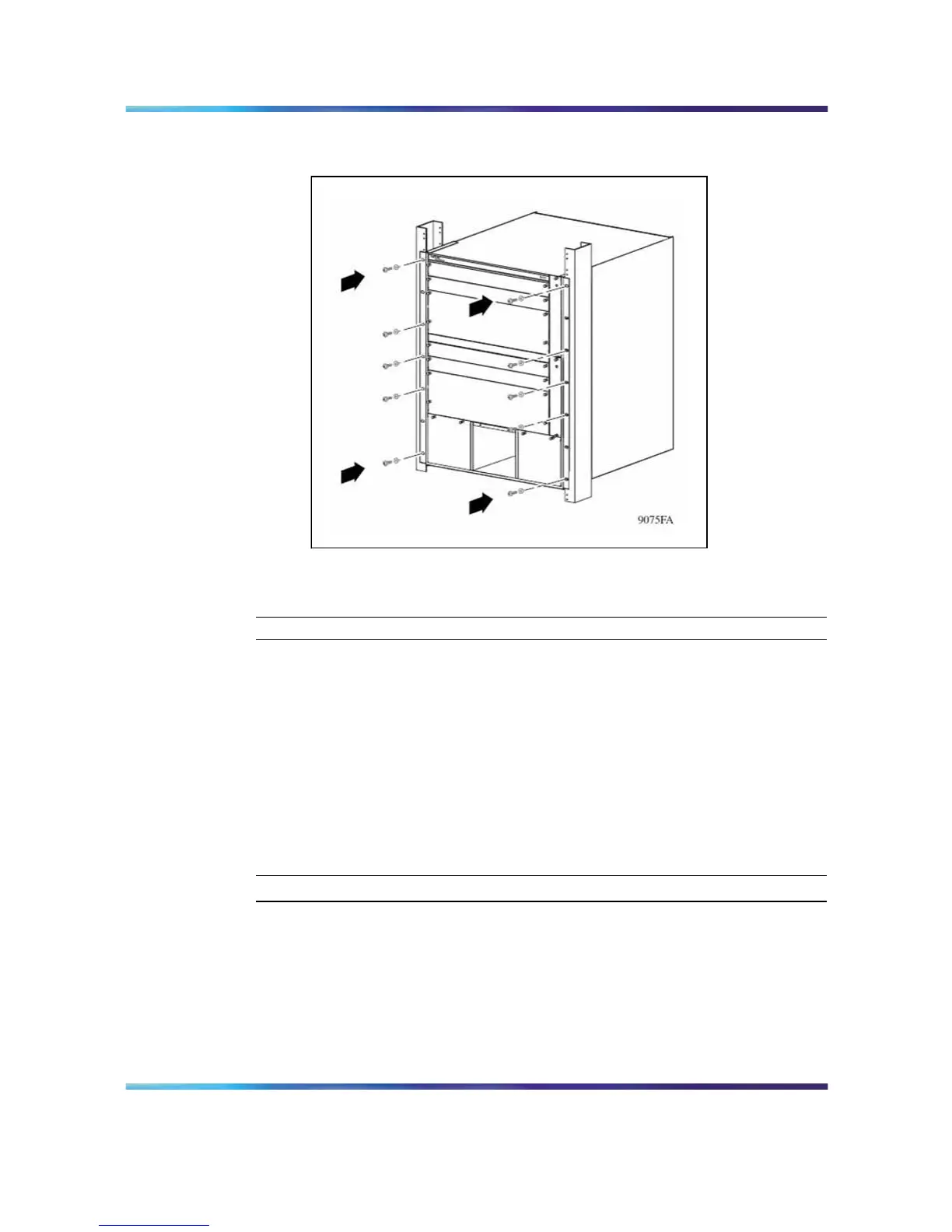

Figure 4
Installing the 8010 chassis in an equipment rack
4
Insert and tighten the rack-mounting screws with a Phillips
screwdriver.
—End—
Installing the 8010co chassis into the rack
The hardware required for mounting the chassis in a rack depends on
whether the rack type is a 19-inch two-post rack or a Hendry rack.
Installing the 8010co chassis in a 19-inch two-post rack
Use the 12 Phillips screws and a Phillips screwdriver to install the chassis in
a standard 19-inch two-post rack.
To install the 8010co chassis in a 19-inch two-post rack:
Step Action
1
Place the installation shelf at the bottom of the rack inside the rails.
2 Holding the installation shelf in position, align the shelf’s mounting
rail with the two holes on each side of the vertical rack support.
3
Insert a Phillips screw through each installation shelf mounting hole
and into the corresponding hole in the rack (Figure 5 "Installing the
shelf in a 19-inch equipment rack: 8010co chassis" (page 18)).
Nortel Ethernet Routing Switch 8600
Quick Start
NN46205-310 01.01 Standard
4.1 21 December 2006
Copyright © 2006 , Nortel Networks Nortel Networks Confidential
.
