20 Installing the chassis

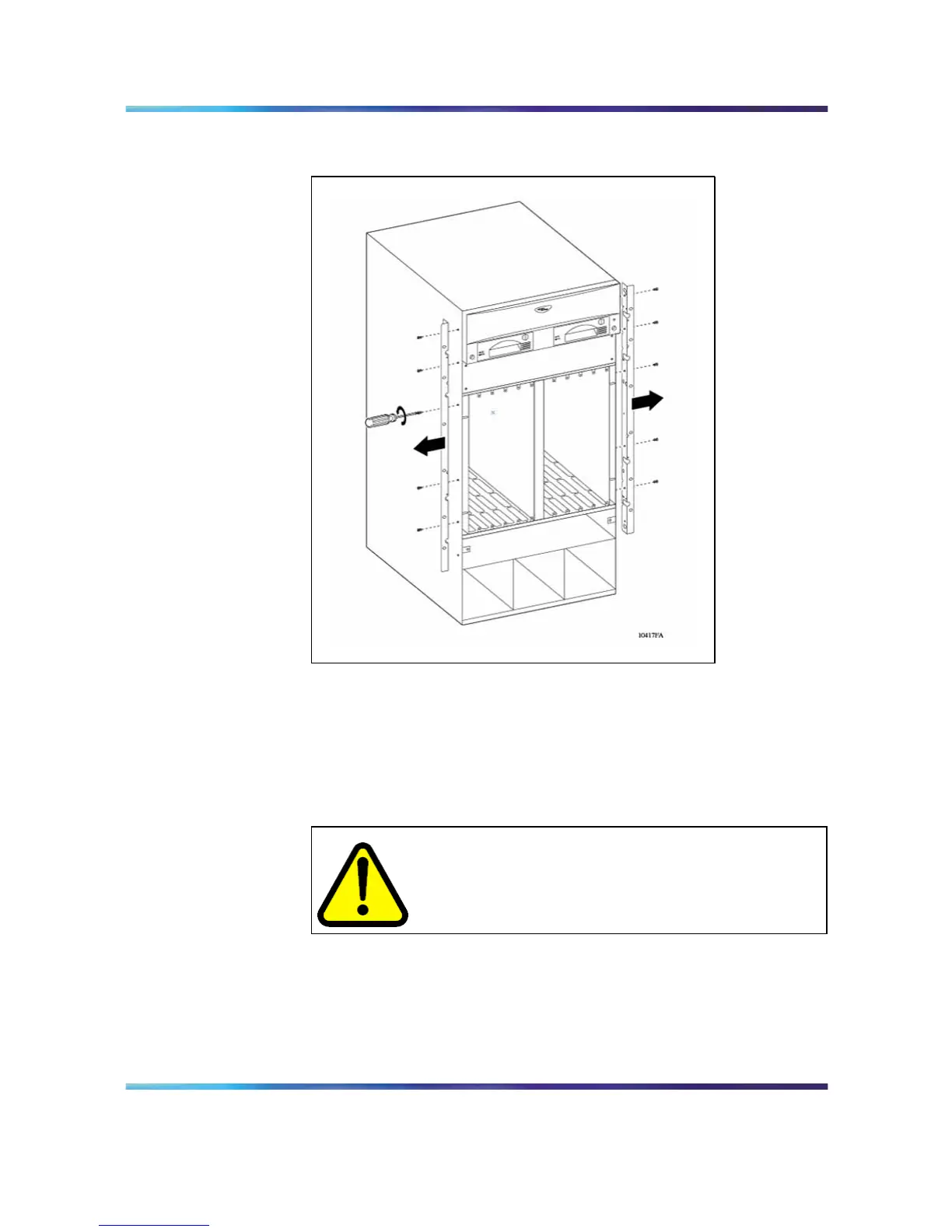

Figure 7
Removing the mounting rails from the 8010co chassis
6
Using the 10 screws that you removed from the two mounting rails,
reinstall the mounting rails.
7
If the holes in the rack’s vertical supports require clip nuts, insert a
clip nut in each of the 12 locations.
8
Lift the 8010co chassis onto the installation shelf.
CAUTION
Risk of injury
It requires three people to lift the 8010co chassis. To
make the chassis lighter, remove the I/O modules and
power supplies before lifting .
9
Holding the 8010co chassis in position, align the flanged end of the
chassis mounting rail with the six holes on each side of the vertical
rack support.
Make sure that the hole pairs on either side of the vertical support
match horizontally.
