32 Installing the chassis

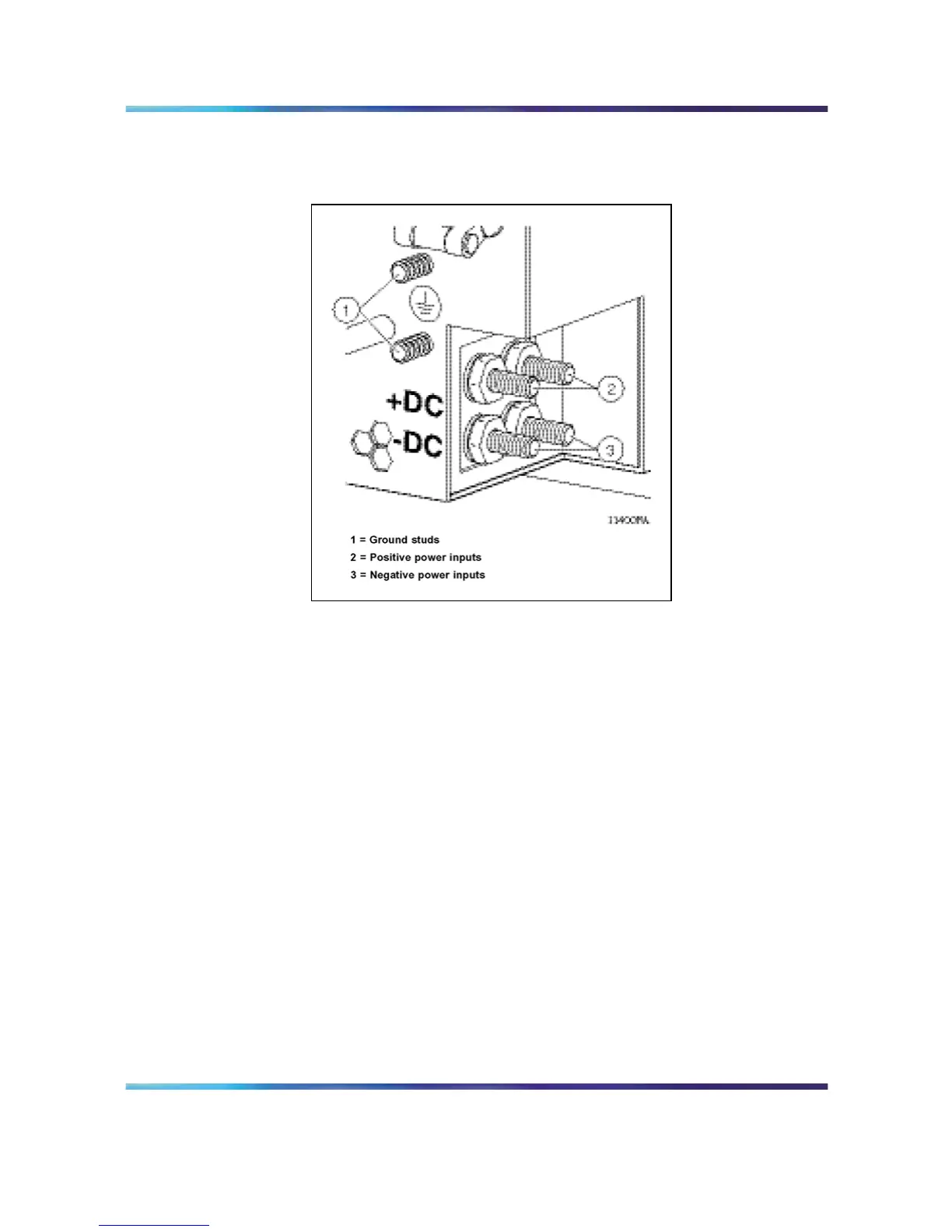

Figure 16
DC power supply input and ground stud location 8005DC
7
Attach the earth ground lead to the ground stud on the power supply.
Use the washers in the following order:
• Flat washer
• Crimp lug
• Lock washer
• Hex nut
Figure 17 "Attaching earth ground lead to ground stud 8004DC"
(page 33) shows where to attach the earth ground lead to the ground
stud for the 8004DC power supply.
