Installing a power module 33

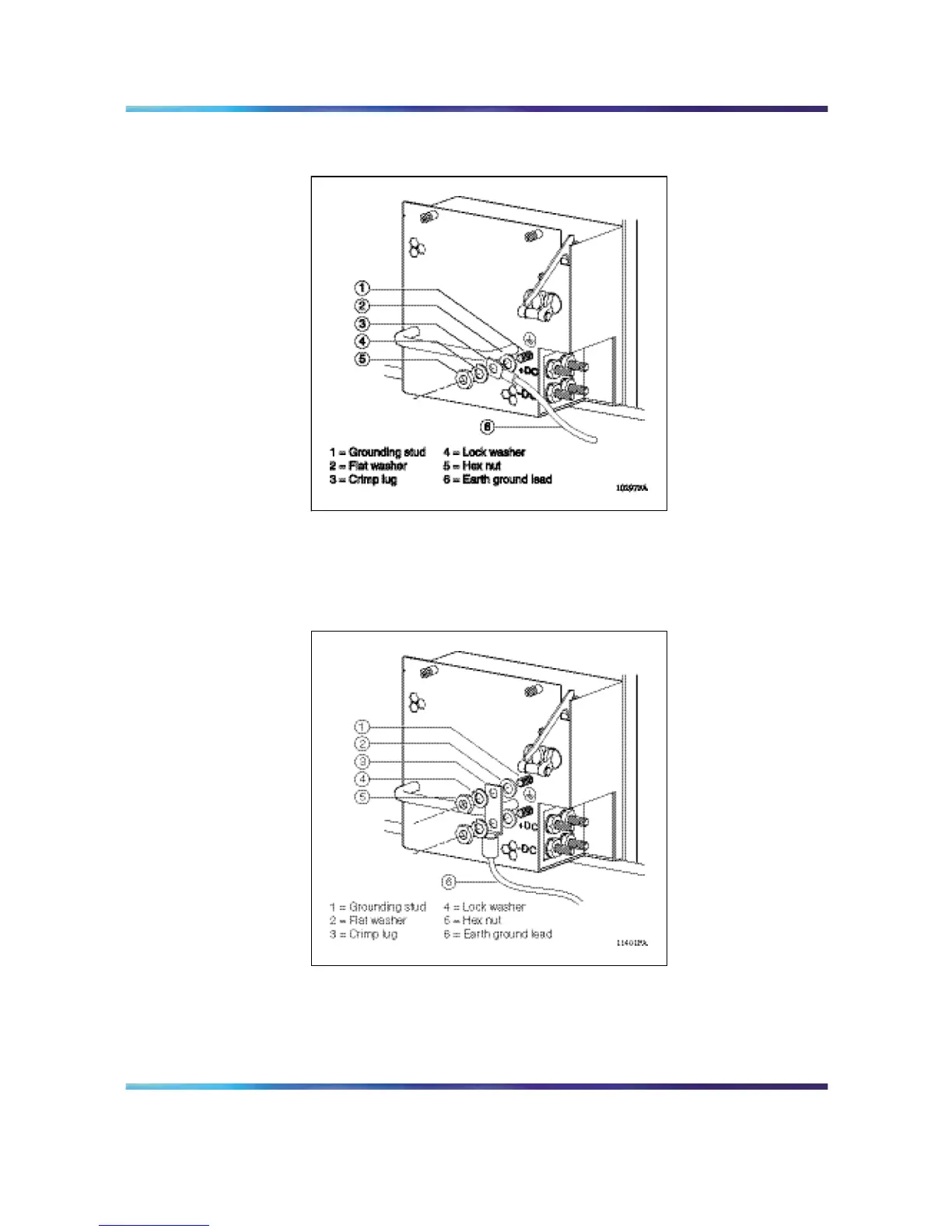

Figure 17
Attaching earth ground lead to ground stud 8004DC
Figure 18 "Attaching earth ground lead to ground stud 8005DC"
(page 33) shows where to attach the earth ground lead to the ground
stud for the 8005DC power supply.
Figure 18
Attaching earth ground lead to ground stud 8005DC
8
Attach the positive voltage lead to the positive terminal on the power
supply, inserting a lock washer between the crimp lug and each hex
nut (Figure 19 "Attaching voltage leads to power supply terminals"
(page 34)).
