Northstar Explorer 660 Installation and Operation Manual 35
1 minute ago
30 seconds ago
Now

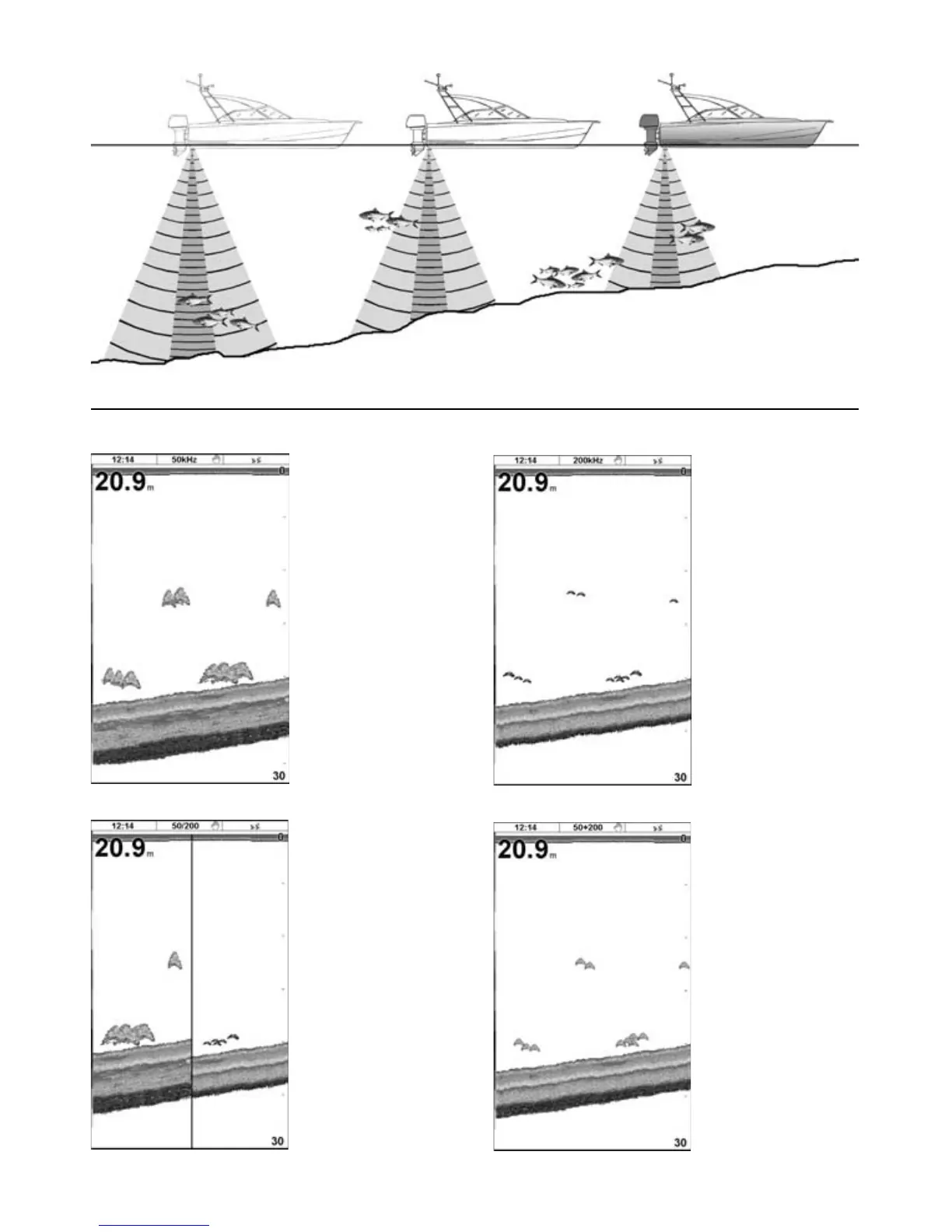

Comparison of the same fish scenario displayed at different frequencies:
50 kHz display
Dual sceen
200 kHz display
50/200 kHz display 50+200 display
Note the wider
bottom trace
Note the
smaller, defined
fish arches and
more bottom
detail.
