Northstar Explorer 660 Installation and Operation Manual42

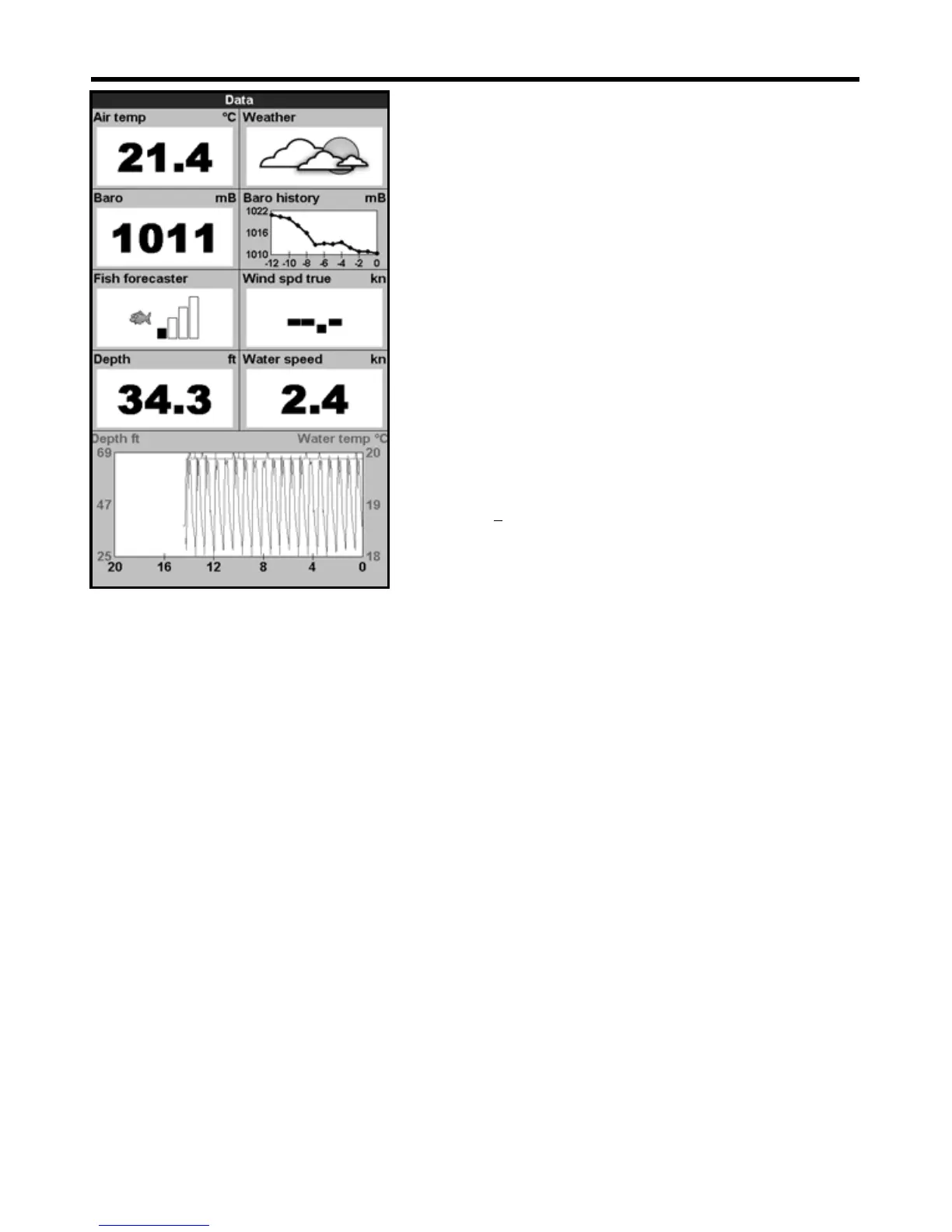

10 Data display
The data display has eight large numeric data
fields, four lines with two fields per line, plus a
graph of the water temperature and depth over
the last 20 minutes.
To show the data display, press DISPLAY, select
Other, then select Data.
To select what data is displayed:
1 Press MENU and select Data setup.
2 Change a data field:
i Press the cursor keys to highlight the
field.
ii Press ENTER to display a menu of the
data that can be shown in the field.
iii Select the data to show in the field; select
None to leave the field empty.
3 Repeat the above step to set the other data
fields.
4 Press ESC.
