Norton BBL547 - Page 12

12

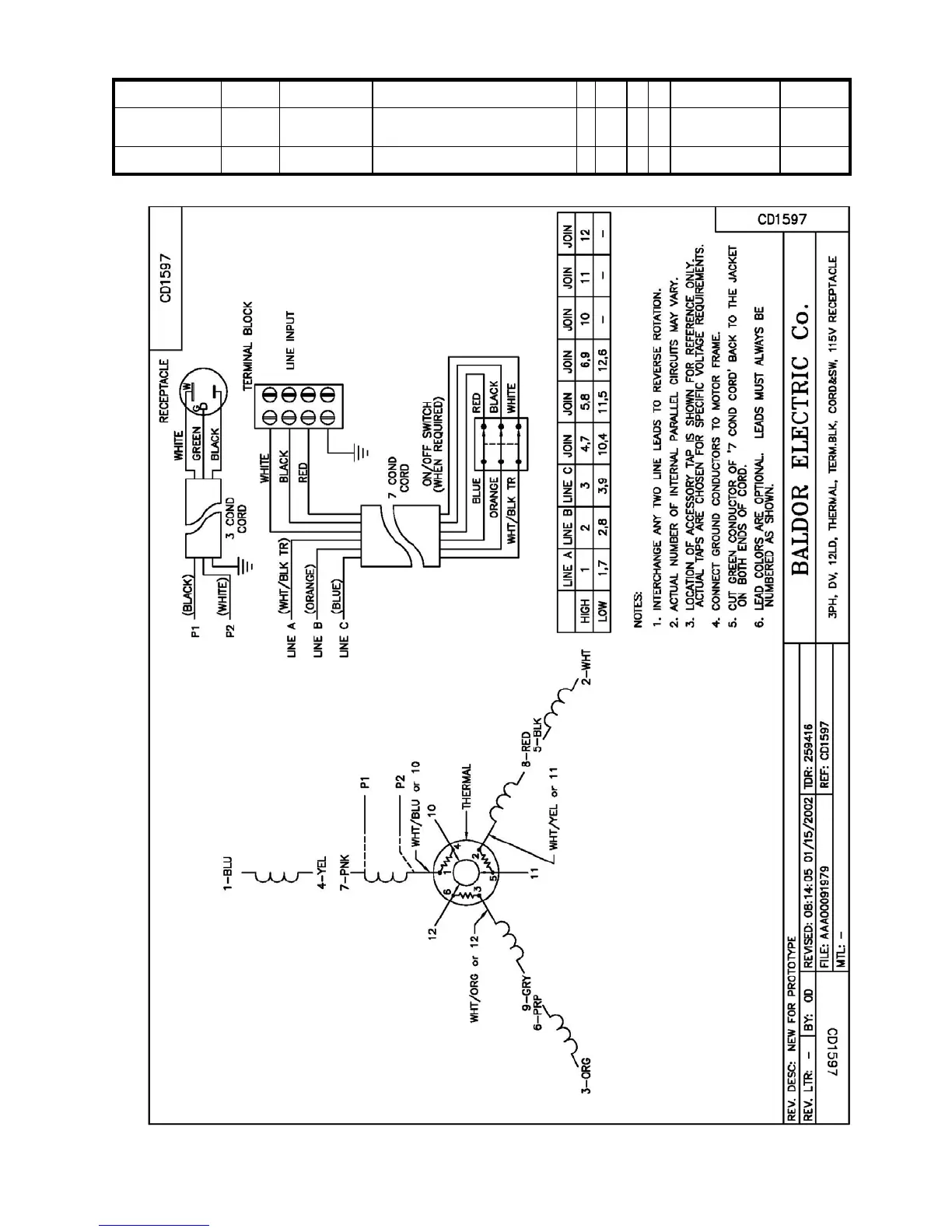

Wiring Diagram 5HP & 7-1/2 HP 230-460v/60Hz/3 Phase
Model Motor
Part#
Motor UPC# Description HP Volts Hz PH Baldor
Specification
Baldor
Drawing
BBL527 3PHASE
BBL547 3PHASE
BBL5247 3PHASE
232099 70184683437 MOT 5HP 230-460/60/3 W/Switch
5
230-
460v 60 3 36H968W189G1
CD1597
BBL727 3PHASE
BBL7247 3PHASE
232100 70184683438
MOT 7.5HP 230-460/60/3 W/Switch
7.5 230-
460v
60 3 36K167T227 CD1597
NOTE: High Voltage = 460v, Low Voltage =230v. Unit normally ship configured for low voltage (230v).
