Operation Description
15
2.1 Product Description
The following information will help you use, maintain, and troubleshoot the NorTrac 35XT series tractor.
The NorTrac 35XT tractor is a medium-sized tractor that can be used on a variety of types of land. The tractor has a compact
structure and is easy to control with responsive steering, a high lift capacity and low maintenance.
2.2 Tractor Operating Controls and Instrumentation
2.2.1 Tractor Operation Controls
16 15 14 13 12 11 10 9
1 2 3 4 5 6 7 8

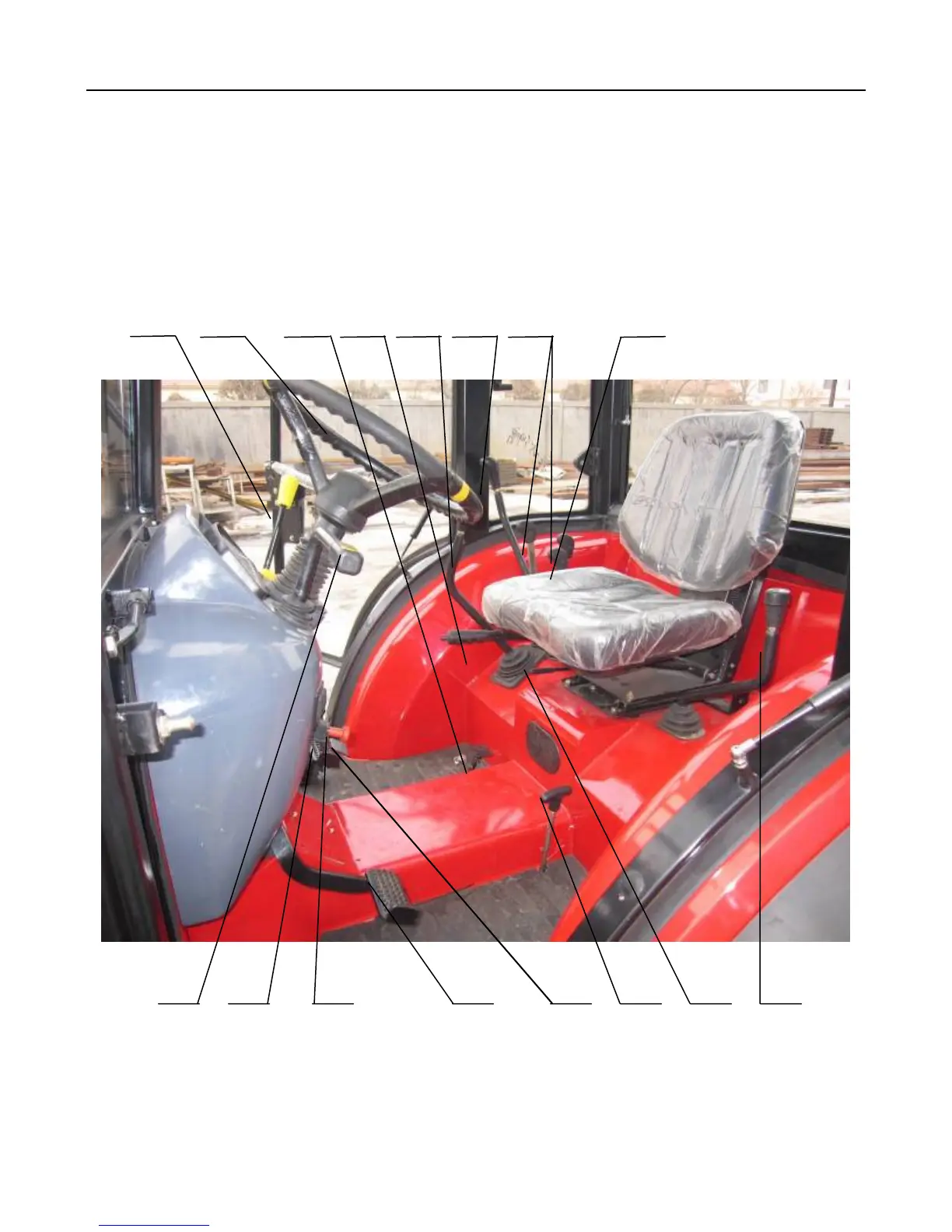

Figure 2-1 Tractor Operation Controls
1. Shuttle-Type Gear Shift 2. Brake Pedal 3. Shut Down Cable 4.Clutch Pedal
5. Foot Accelerator Pedal 6. Front Drive Axle Engage/Disengage Lever
7.Seat Adjustment Handle 8. Power Take off (PTO) Gear Shift Handle
9. Distributor Control Handle 10. Multiple Unit Valve Control Handles 11.Auxiliary
Gear Lever12. Main Gear Lever 13. Parking Brake Handle 14.Differential
Lock Pedal 15. Steering Wheel 16. Throttle Control Handle
