4.6 Front Drive Axle Adjustment
4.6.1 Front Drive Axle Side Drive Adjustment
Adjustment of the side clearance between the drive gear and driven gear of the first level intermediate
drive of the side drive of the front drive axle can be done by adjusting the adjusting shim (1).
Adjustment of the side clearance between the drive gear and the driven gear of the second level and
drive can be accomplished by adjusting the adjusting shim (5). Clearance of the tow meshing-teeth side
clearances should be 0.25 – 0.45mm.

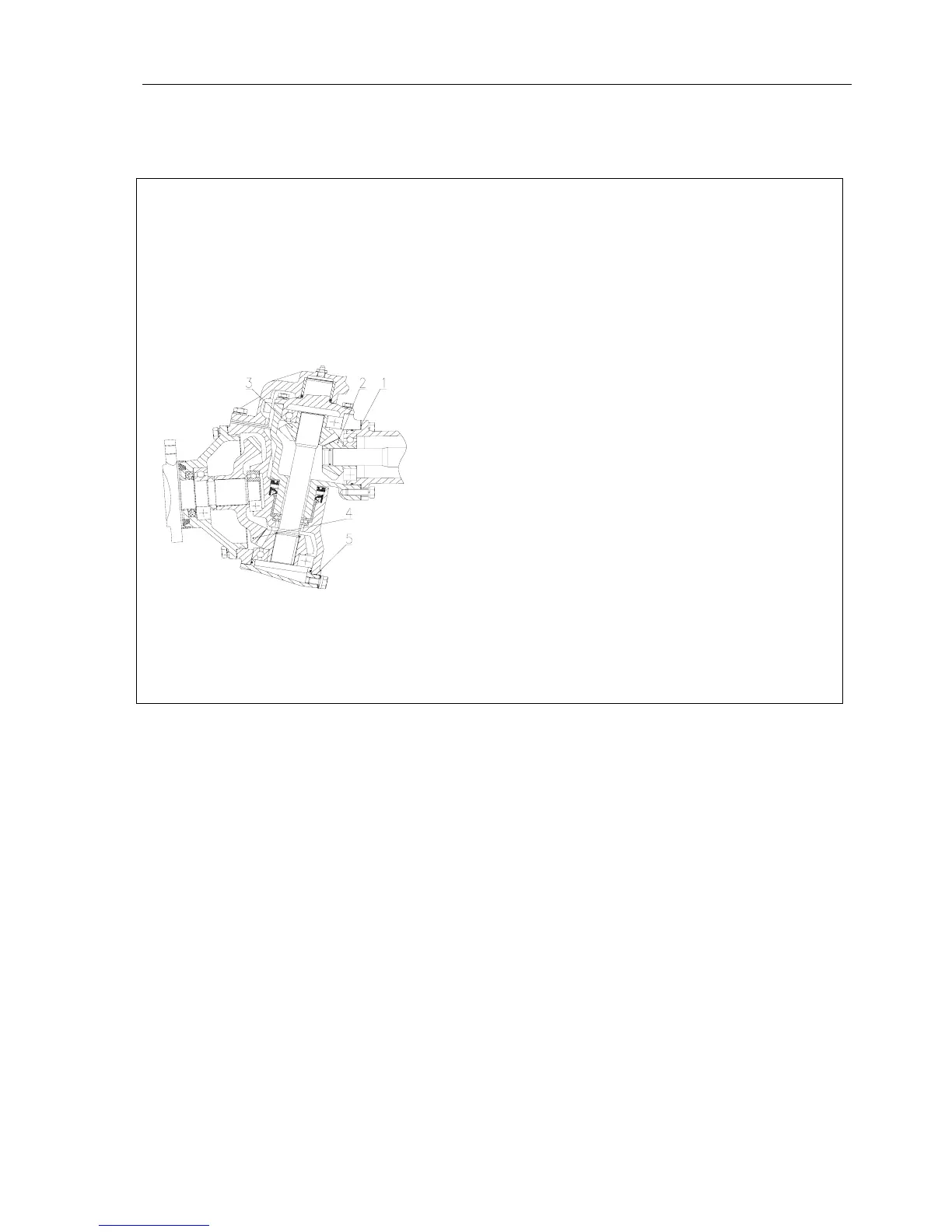

Figure 4-9 Front Axle Drive Side Drive Adjustment
1. Adjusting Shim
2. Driving Gear or Intermediate Drive
3. Driven Gear or Intermediate Drive
4. Final Gear Drive
5. Adjusting Shim
