DN-6862 08/07/01 Page 3 of 3
ABF-1DB/ABF-2DB/ABS-4D: The ABF-1DB, ABF-2DB
and ABS-4D are semi-flush-mount backboxes for NOTIFIER
ACS Series Annunciators. The ABF-1DB mounts one an-
nunciator module and the ABF-2DB mounts two modules or
an NCA. The ABS-4D mounts up to four annunciators or two
annunciators with an NCA. Black with an attractive smoked
glass door with NOTIFIER keylock. The ABS-4D is hinged
on the bottom for stability.
DIMENSIONS, ABF-1DB: Box only: 9-15/16" (25.24 cm)
high x 4-5/8" (11.75 cm) wide x 2-1/2" (6.35 cm) deep.
Door: 10.713" (27.21 cm) high x 6" (15.24 cm) wide x
0.75" (1.9 cm) deep.
DIMENSIONS, ABF-2DB: Box only: 9-15/16" (25.24 cm)
high x 9-3/16" (23.34 cm) wide x 3" (7.62 cm) deep.
Door: 10.713" (27.21 cm) high x 10.375" (26.35 cm)
wide x 0.75" (1.9 cm) deep.
DIMENSIONS, ABS-4D: Box only: 11.97" (30.40 cm)
high x 19.87" (50.47cm) wide x 3.50" (8.89 cm) deep.
Door: 11.97" (30.40 cm) high x 19.87" (50.47 cm) wide
x 1.25" (3.18 cm) deep.
ADP-4B: The Annunciator Dress Panel-4B (black) pro-
vides for the cabinet mounting of one to four modules. The
ADP-4B hinge-mounts to a CAB-4 Series cabinet. Mod-
ules mount directly to threaded studs on the ADP-4B.
DP-DISP: The Dress Panel-Display provides for the cabi-
net mounting of one to four modules in the top row of a
CAB-4 Series backbox. Modules mount directly to threaded
studs on the DP-DISP (see illustration below).
BMP-1: Annunciator Blank Module is a flat black dress
plate that covers unused module positions in the annun-
ciator backbox or in the ADP-4B. 8-3/8" (21.27 cm) high x
4-3/8" (11.11 cm) wide. Studs for a variety of module mount-
ing options are available.
AKS-1B: The Annunciator Key Switch-1B (black) provides
access security for the control switches on the
ACM/AEM-24AT. The key switch kit includes a key and
hardware for mounting to the ABF-1B. Also included is an
adhesive-backed annunciator label for use with the key
switch/dress plate assembly. NOTE: The AKS-1B can
only be employed with the ABS-1TB.
APJ-1B: Annunciator Phone Jack- 1B (black) for Fire Fight-
ers Telephone (FFT-7). Includes mounting hardware and
adhesive-backed label.
Agency Listings and Approvals
See the first page of this data sheet for listing agencies
and file numbers. These listings and approvals apply to
the ACM/AEM-24AT and the ACM/AEM-48A. In some cases,
certain modules or applications may not be listed by cer-
tain approval agencies, or listing may be in process. Con-
sult factory for latest listing status.
Architectural/Engineering
Specifications
For specifications on ACS Series Annunciation & Control
Systems, contact NOTIFIER.

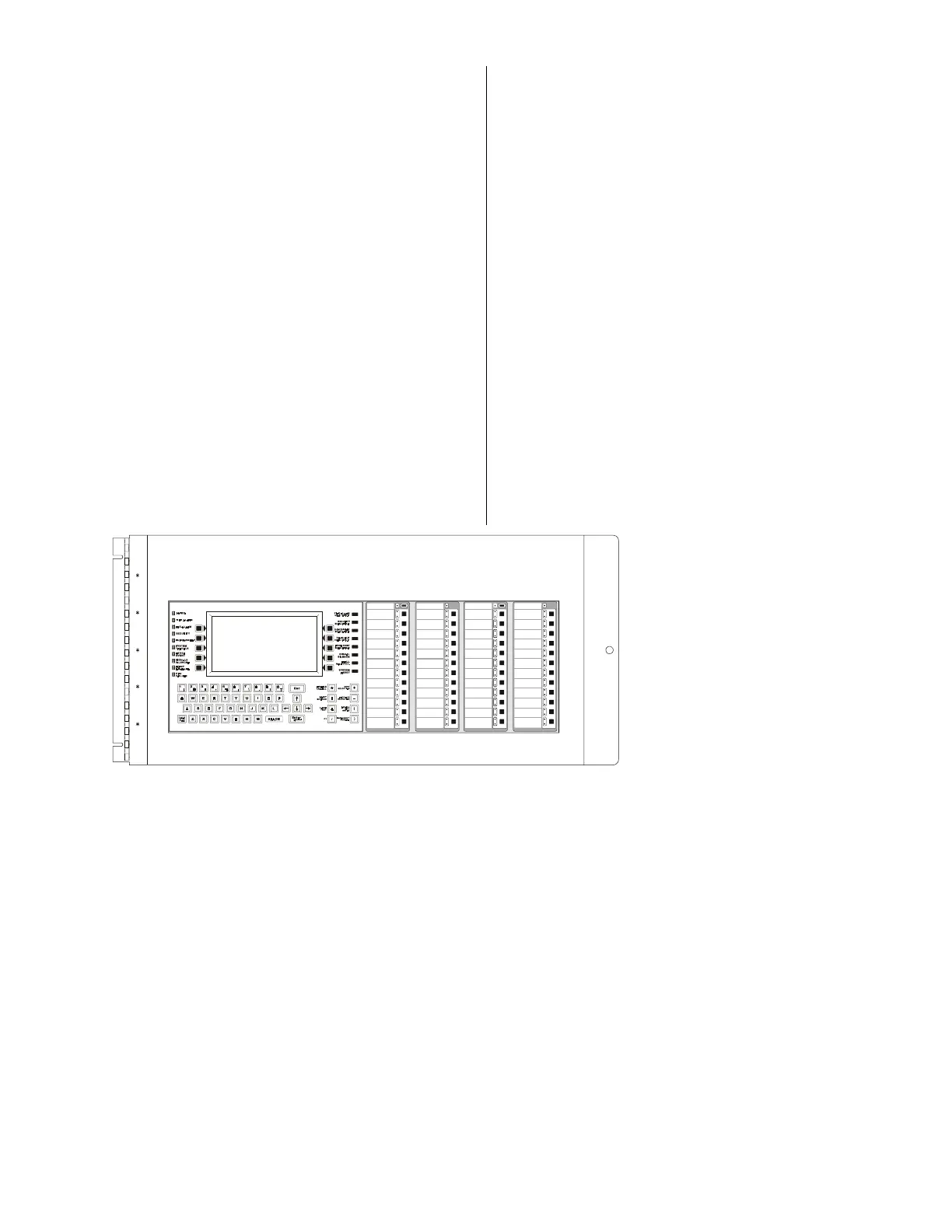

DP-DISP Dress Panel with NCA Network Control Annunciator
in left two positions, and two ACM-24AT Annunciators at right.
6858disp.wmf
