Installing the Charger
CHG-120 Instruction Manual 11/06/2002 PN 50641:B1 15
Mounting the Charger into a BB-55 Battery Box You can also mount a charger into a
BB-55 battery box, as long as the BB-55 is within 20 feet of the load. Note that a charger
takes up half the space of the BB-55. This means you only have room left for two 25 AH
batteries in the BB-55. Figure 8 shows the mounting position of a charger in a BB-55.

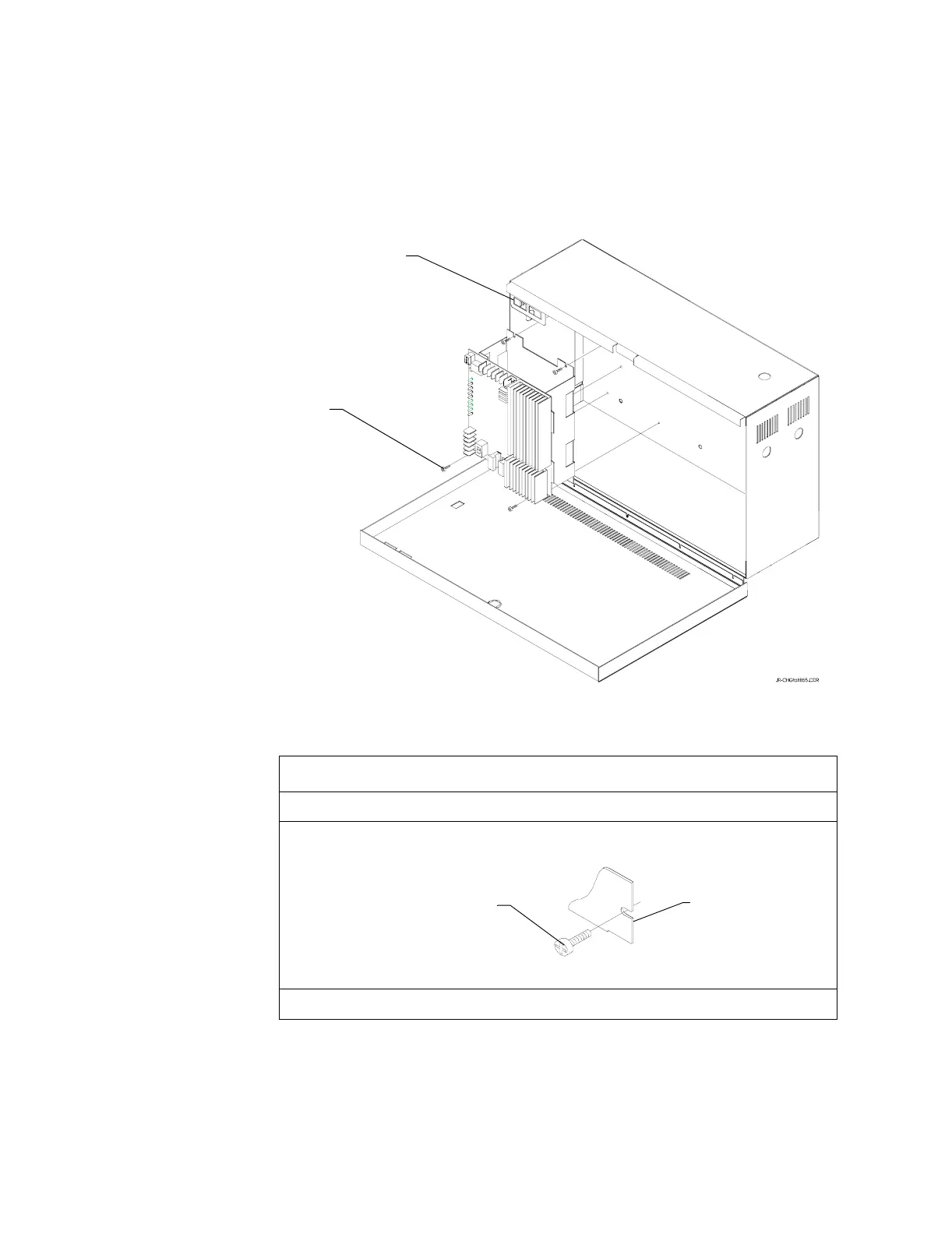

Figure 8 Mounting a Charger into a BB-55
To mount a charger into a BB-55 battery box, follow these instructions:
Optional bracket for
mounting an optional
AM-1 or VM-1
Self-tapping screws
Step Action
1 Place the charger chassis mounting slots in line with the mounting holes in the BB-55.
2 Insert the self-tapping screws through the charger chassis mounting slots and into the
mounting holes in the BB-55.
3 Tighten the self-tapping screws.
Self-tapping screw
Chassis mounting
slot
