FDU-80 Annunciator
Components & Wiring
8
Document 51264 Rev A2 6/14/00 P/N 51264:A2
1.2 Components & Wiring
SW1
J3
J2
J1

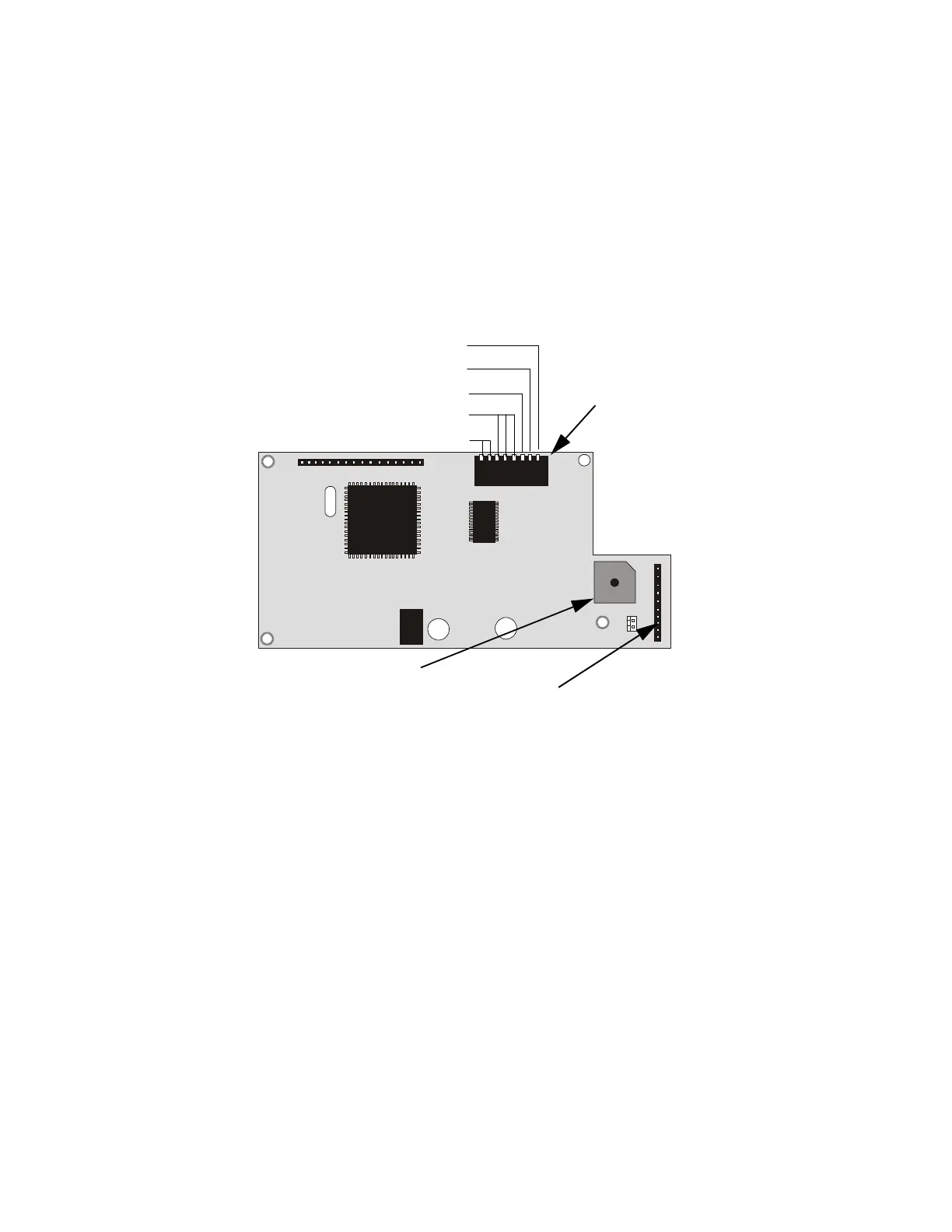

Figure 1-1: Components
Future use
ON = Piezo Enable
OFF = Key-switch Enabled
OFF = Receive only
Top view
Note: See “DIP
Switch Settings
Example” on
page 12.
The FDU-80 sounder, if enabled, will be
activated when any new alarm or trouble is
received from the panel. It is silenced by an
Acknowledge switch. Piezo must not be
disabled without approval of the LAHJ
(Local Authority Having Jurisdiction).
Piezo Sounder
Membrane Connector
Cable connection to membrane switches
for Acknowledge, Silence, Drill and Reset.
FDU80brd.cdr
