Notifier FDU-80

Mounting
Semi-flush Mount Backbox
20
Document 51264 Rev A2 6/14/00 P/N 51264:A2
3.2 Semi-flush Mount Backbox
Mounting in SBB-3 Three Gang Electrical Box
Remove the plug-in terminal blocks from the FDU-80 circuit board.
Connect the EIA-485 and power wiring into the terminal block positions
illustrated in Figure 1-2 on page 9, Figure 4-1 on page 23 and Figure 4-
2 on page 24. Plug the terminal blocks back into the P2 and P1 connec-
tors on the back of the annunciator. Set DIP switch SW1 for the desired
options. Refer to Figure 1-3 on page 12.
Carefully insert the FDU-80 into the three-gang electrical box P/N:
10103 or three electrical boxes ganged together and attach it using the
four mounting holes on the FDU-80 flange and the four screws provided
for this purpose. Replace the trim ring and secure with the two screws
which were previously loosened. Adjust the plastic trim ring to the sur-
face of the wall before tightening the screws.
Do not overtighten.
Ack/Step
Silence Reset
Drill
Hold 2 sec.
FIRE ALARM ANNUNCIATOR
A lm . S ilen ce dSupervisoryTr ou bl eAlarmAC Power

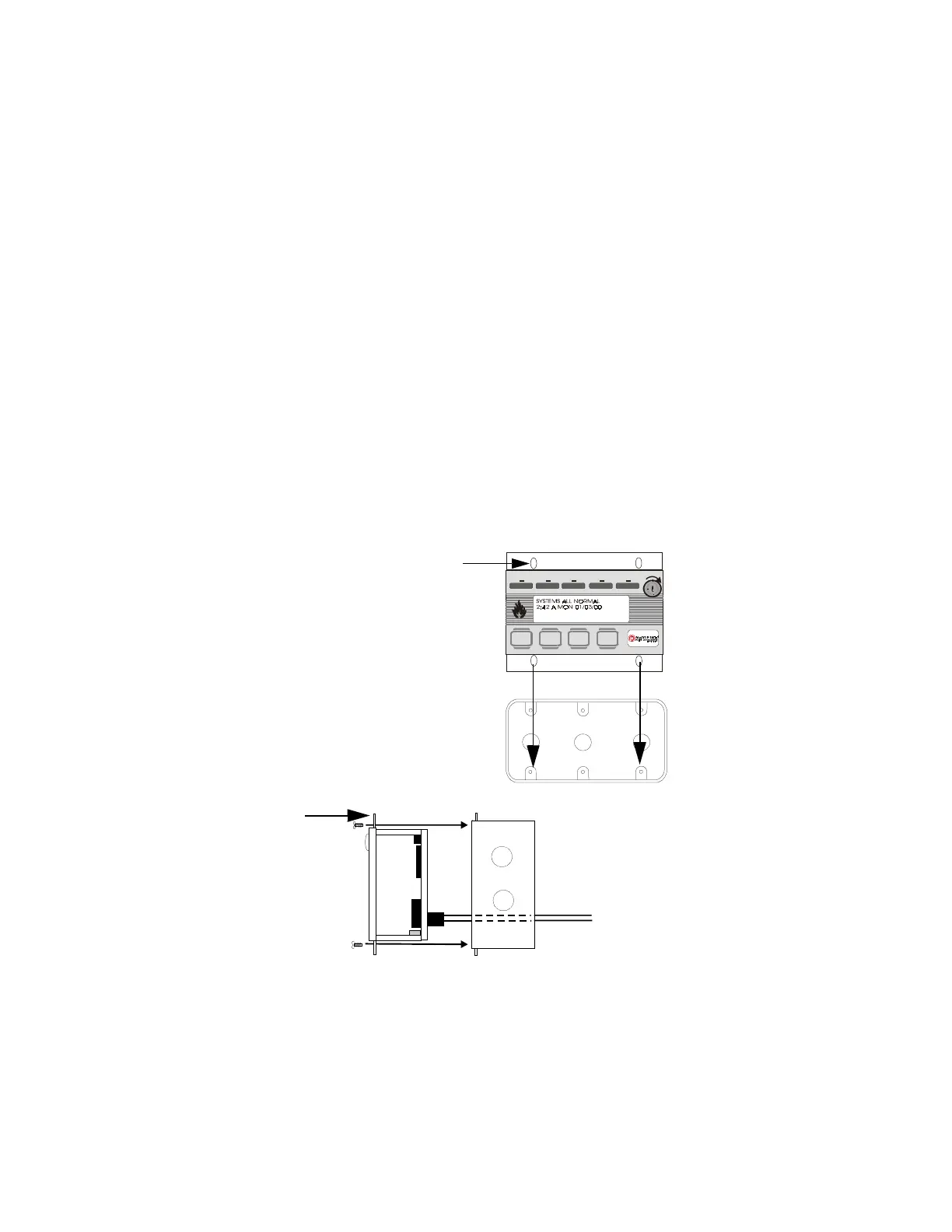

Figure 3-3: Mounting in SBB-3 Box
FDU-80 flange
3-gang electrical box P/N 10103
FDU-80 Three-gang electrical box P/N 10103
flange
EIA-485 and power wiring
FDU80flg.cdr
10103box.cdr
Lcd40box.cdr
The FDU-80 can be semi-flush mounted
in a three-gang electrical box,
P/N 10103 or equivalent, with a minimum
depth of 2 3/16". The FDU-80 can also be
mounted in three gangable electrical
switch boxes connected together as illus-
trated in Figure 3-4 on page 21.
mounting holes (4)
Important!
When installing conduit in a
3-gang electrical box, use knockouts on
the top or bottom. Installing conduit on
the sides or back of some boxes may
interfere with mounting of the FDU-80 in
the box.
