Notifier ID50 SERIES

ID50 Series Panel - Operating Manual
Operator Actions at Panel
29 997-264-000-8, Issue 8
January 2007

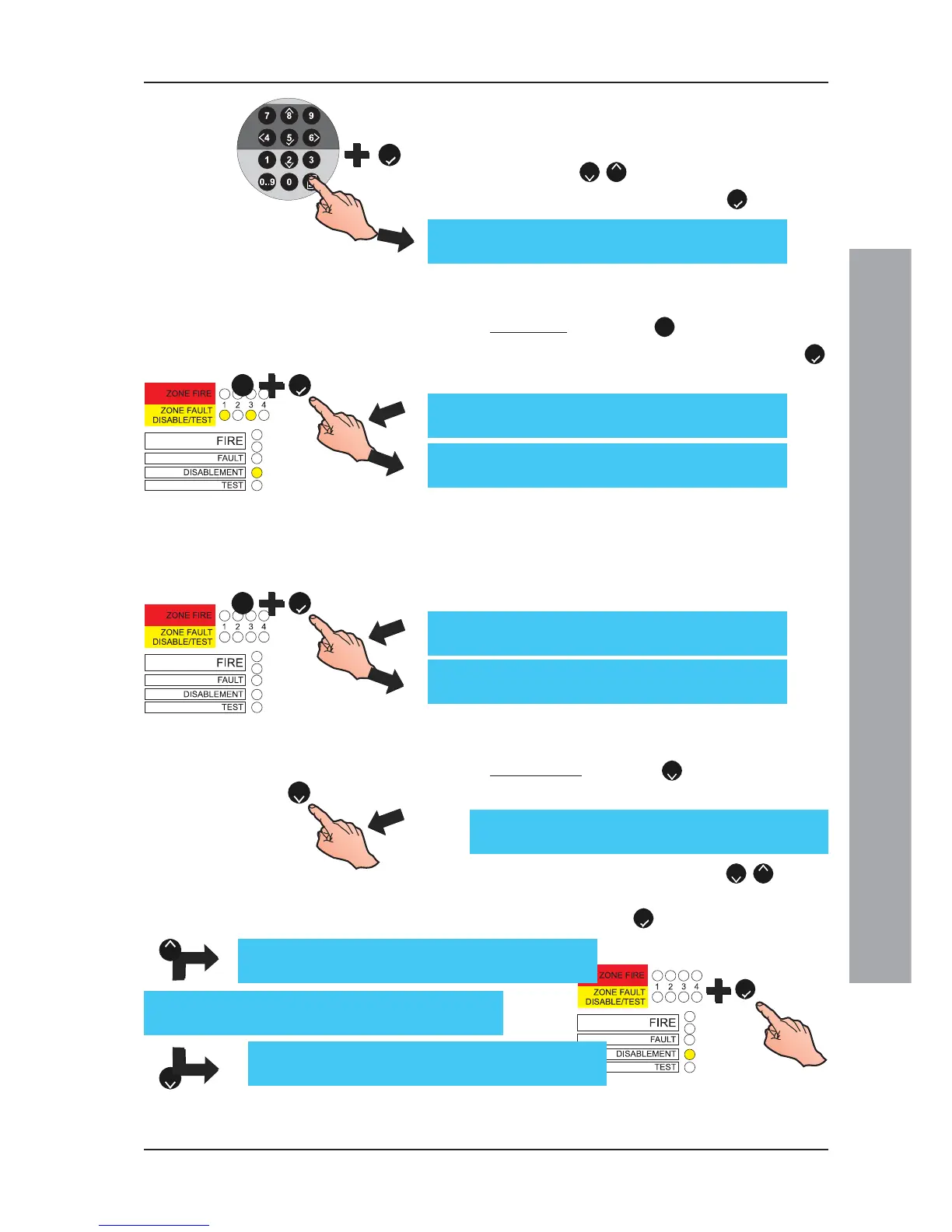

3 The LCD then displays the current state of the zone
(Fully enabled, Fully disabled or Part disabled) and
prompts for selection of Full Zone or Devices in zone:
Note: Press the ‘
2
/
8
’ buttons to step to the previous/
next zone and confirm using the ‘
5
’ button.
4 To disable:
a. A Full Zone - Press the ‘
1
’ button on the numeric
keypad to select the Full Zone option, and the ‘
5
’
button to confirm.
The DISABLEMENT and relevant ZONE FAULT/
DISABLE/TEST LEDs illuminate, indicating that the
selected zone(s) are now disabled. The LCD returns
to the Disable/Enable menu.
To enable a Full Zone:
The DISABLEMENT and relevant ZONE FAULT/
DISABLE/TEST LEDs extinguish.
b. A Partial Zone - Press the ‘
2
’ button on the numeric
keypad to select the Device in Zone option:
5 To select individual devices use the ‘
2
/
8
’ buttons
to display the required device(s). Confirm selection of
each by pressing the ‘
5
’ button.
[Disable/Enable] Zone 0 1 (Fully enabled)
1:Full Zone 2:Device in Zone ↕ : More
[Disable/Enable] Zone 0 1 Disable fully ?
Press ✓ to Confirm <:Cancel
[Disable/Enable] Zone 0 1 Fully disabled
1:Full Zone 2:Device in Zone ↕ : More
[Disable/Enable] Zone 0 1 Enable fully ?
Press ✓ to Confirm <:Cancel
[Disable/Enable] Zone 0 1 Fully enabled
1:Full Zone 2:Device in Zone ↕ : More
5
5 1
5 1
[Disable/Enable] Zone 0 1 Part disabled
1:Full Zone 2:Device in Zone ↕ : More
[Enable] Zone 0 1 - Enable S02 ?
Press ✓ to confirm <:Cancel
[Disable] Zone 0 1 - Disable S01 ?
Press ✓ to confirm <:Cancel
[Disable] Zone 0 1 - Disable M99 ?
Press ✓ to confirm <:Cancel
5
2
8
2
