1.7 SYSTEM ARCHITECTURE
There are three network options for the NFN Web Server:
• Internet or Intranet connection
• Using a dial-up modem
• Direct panel interface to an NFS-640 or NFS-3030
The following diagrams show architecture options for a system using the NFN Web Server.
INTERNET/INTRANET CONNECTION
The NFN Web Server can uses an Internet/Intranet connection via IP over Ethernet.
Internet or
Intranet
FACP
NCS
UniNet®/NFN NION
BACnet Gateway
FACP
NCS
UniNet®/NFN NION
BACnet Gateway

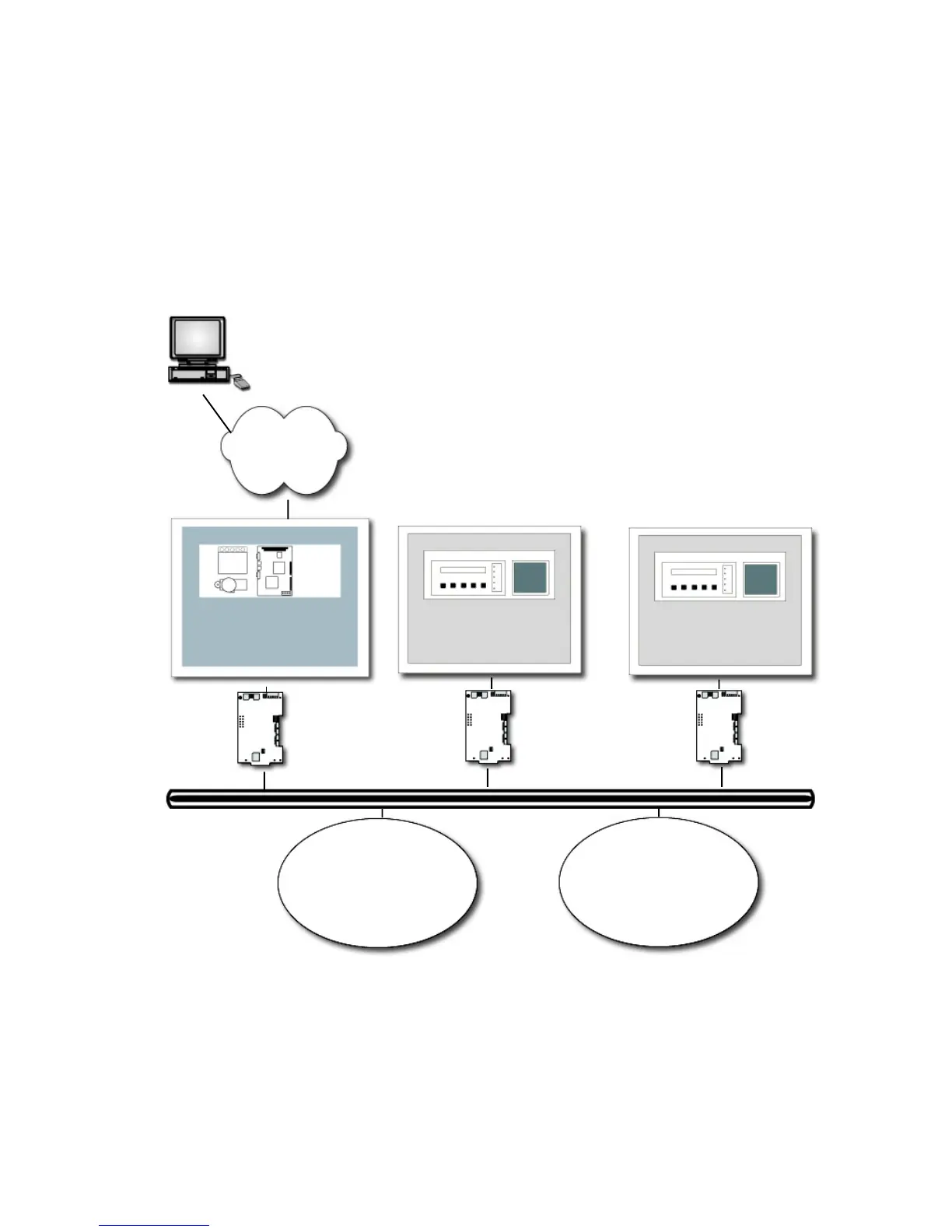

Figure 1.7-1: NFN Web Server Network Architecture
NCM-W/F
PC Browser
Interface
NWS
NOTI•FIRE•NET™
