About the Network Interface Card Installation NFN Gateway PC Configuration
17NFN Gateway Installation & Operation Manual - P/N: 52307:Rev: D 06/01/07
2.2.3 Network Interface Card Cable Connections
Network Interface Card EIA-232 Connection
The Network Interface Card is connected to an available Workstation Comm Port.

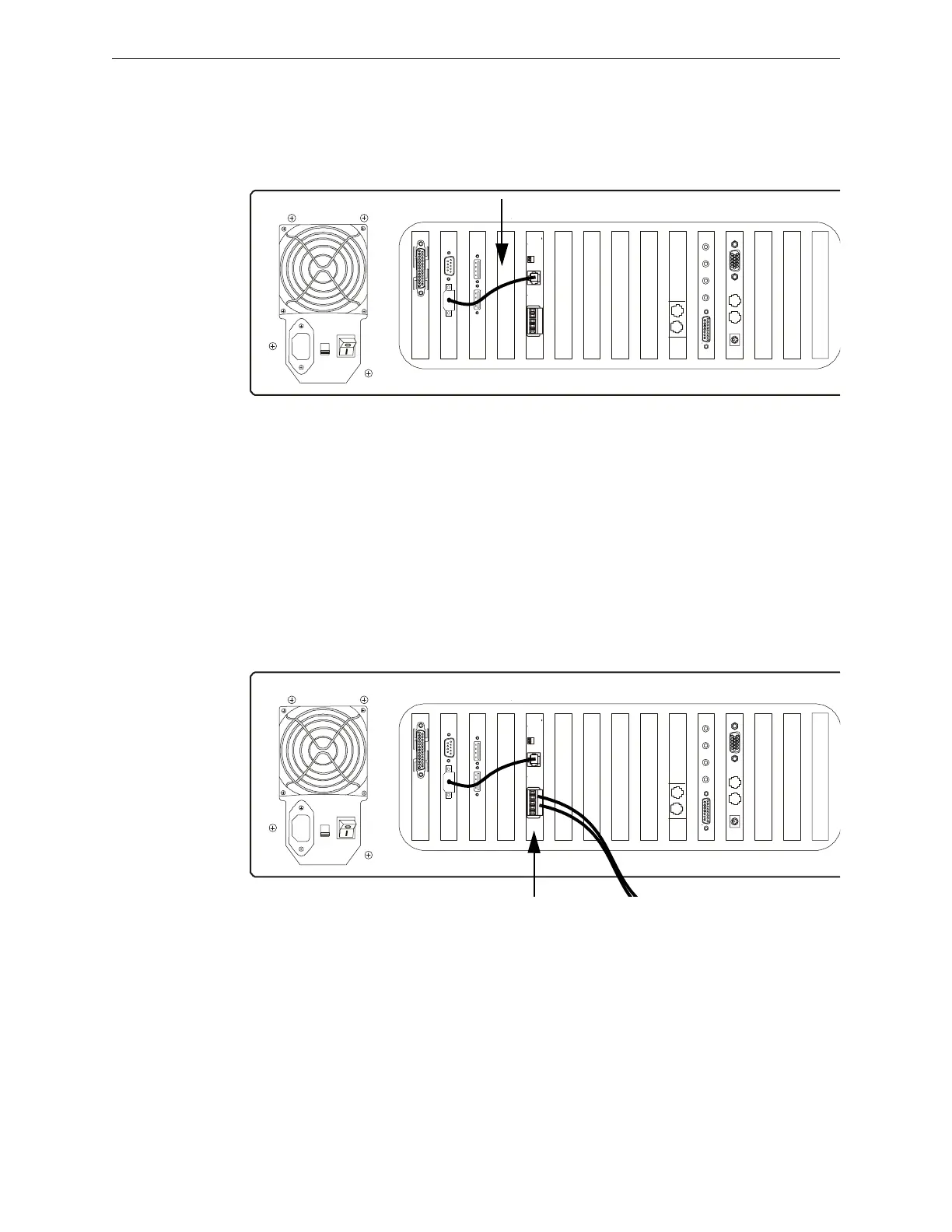

Figure 2.3 Workstation to IP Connection
NFN Network Connection
The Network Interface Card is connected to NFN network through its network port using one of the
following methods:
• NFN-GW-PC-F is the fiber network interface card that is connected to the transmit
(TX)/Receive (RX) pins of one channel to the corresponding pins on the next network
interface card.
• NFN-GW-PC-W is the card that uses a twisted media pair or wires are used for the
connection. One wire connects to one of the CH A pins, the other to the other CH A pin.
When using Style 4 and 7, use CH A and CH B pins. The wires connect to the NFN network.
Figure 2.4 Workstation to NFN Network Connection
