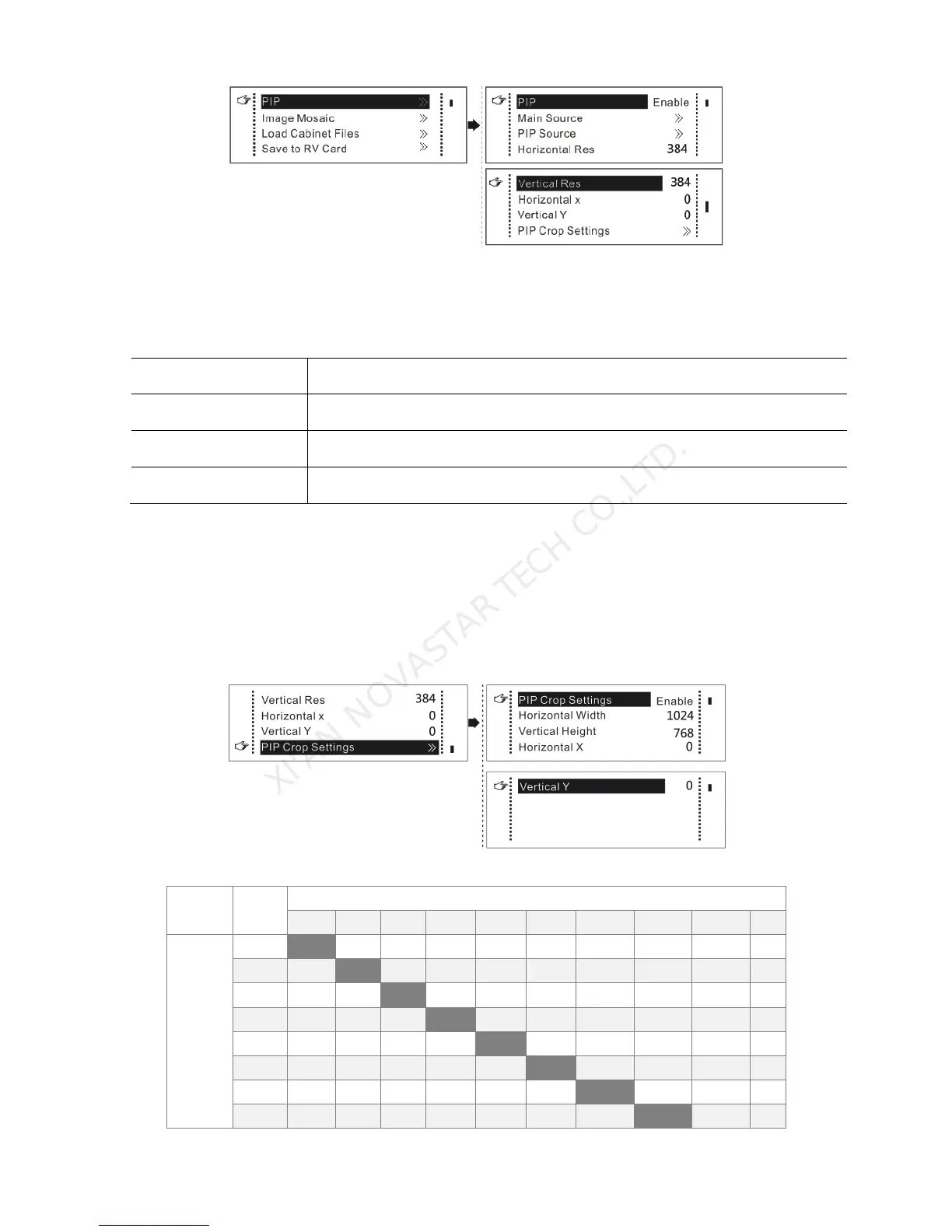

Main source/PIP source: Input source switching of main picture and PIP is the same as the role of input
source switching on the front panel.
Horizontal X
Horizontal width of PIP
Vertical Y
Vertical height of PIP
Horizontal Res
Horizontal offset of PIP
Vertical Res
Vertical offset of PIP
PIP Crop Settings
Picture is cropped from the set starting position and is displayed on PIP and its size is set horizontal width
and vertical height.
Enable this function and then set horizontal width, vertical height, horizontal X and vertical Y.
The Conflict List of PIP Signal Source(VX4)
Input Source of Main Channel
HDMI
DVI1
DVI2
VGA1
VGA2
VGA3
CVBS1
CVBS2
CVBS3
DP
PIP
Input
Source
HDMI
√
×
√
√
√
√
√
√
√
DVI1
√
√
×
√
√
×
√
√
√
DVI2
×
√
√
√
√
√
√
√
√
VGA1
√
×
√
√
√
×
√
√
√
VGA2
√
√
√
√
×
√
√
√
√
VAG3
√
√
√
√
×
√
√
√
√
CVBS1
√
×
√
×
√
√
√
√
√
CVBS2
√
√
√
√
√
√
√
×
√
