User's Manual of Led Display Video Controller VX4S/VX4
www.novastar-led.com 5
: Flat mouth (Type A, female USB) is USB interface, which connects U disk;
Square mouth (Type B female USB) is USB controlling interface, Communication with PC.

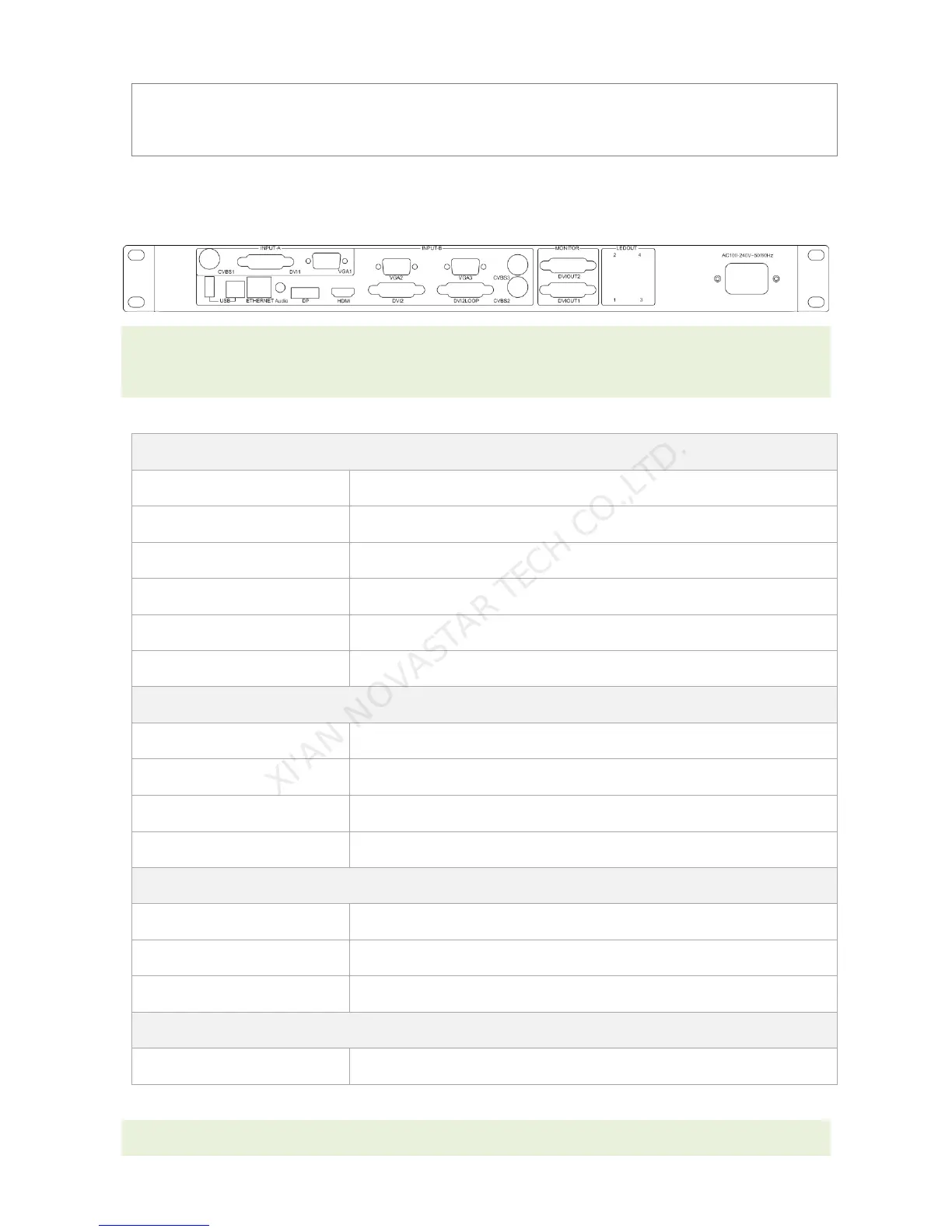

5.2 Rear panel
Tips: In order to improve the user’s experience, the layout of interface may be adjusted a little, The picture
is only for reference.
Input Source
Audio
Audio Input
DP
DP Input
HDMI
HDMI Input
CVBS1~CVBS3
3-Channel PAL/NTSC TV composite video Inputs
DVI -1~DVI-2
2-Channel DVI Inputs
VGA1~VGA3
3-Channel VGA Inputs
Output Interface
DVI LOOP
DVI LOOP Output
Monitor -DVI OUT1
DVI Monitoring Interface 1
Monitor -DVI OUT2
DVI Monitoring Interface 2
LED Out 1234
4-Channel LED Outputs
Controlling Interface
ETHERNET
Network Control (Communication with PC, or Access Network)
Type B, female USB
USB Control (Communication with PC, or Cascade IN)
Type A, female USB
USB Cascade OUT
Power
AC 100-250V50/60HZ
AC Power Interface
TipsThe two USB ( typeA) on front panel and rear panel are both forbidden to connect with PC directly.
