2.0 PHYSICAL CONSTRUCTION & MOUNTING
The M66x are packaged in rugged aluminum case specifically designed to meet the
harsh conditions found in utility and industrial applications.
The Front panel view for the M660 and M663 (19” rack mount version) and the
mounting plate view for the M661 are shown in Figure 1. The mechanical dimensions
are shown in Figures 2A and 2B.

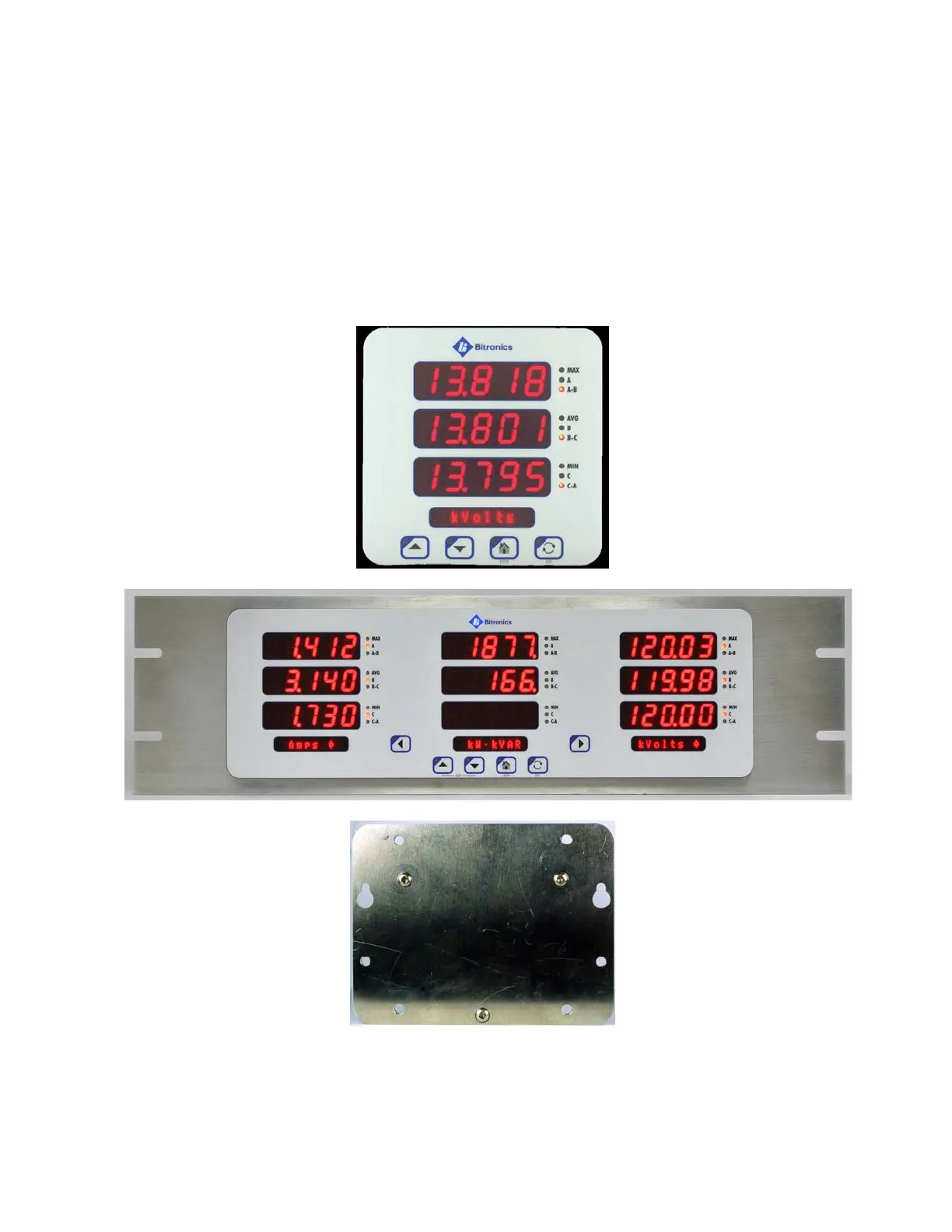

Figure 1 – M660/M663 Front View and M661 Mounting Plate View
