29
ML0044B October 15, 2019 Copyright 2019 Bitronics, LLC
3.0 BACK PANEL & WIRING
The rear view of the M66x is shown in figure 3A with the fiber option port shown,
however, it is also possible to have a meter with a serial port or without this option
port.
See Appendix A1 for detailed wiring diagrams covering the CT/VT measurement
inputs. Refer to the appropriate section in this user manual when wiring either the
serial communication option, or either analog transducer output option, whichever
applies to the option port for your meter.

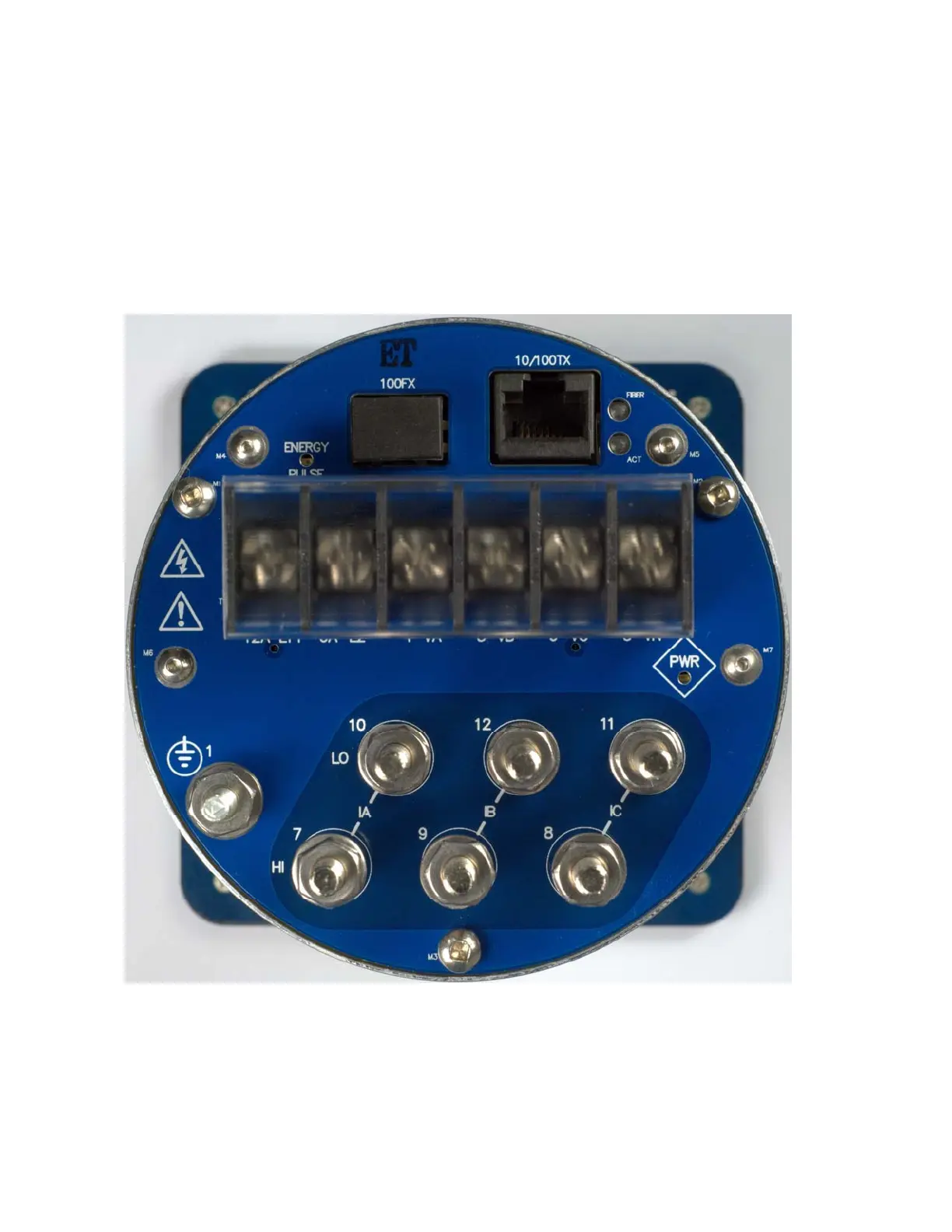

Figure 3A – Rear View M66x
