Status Page:

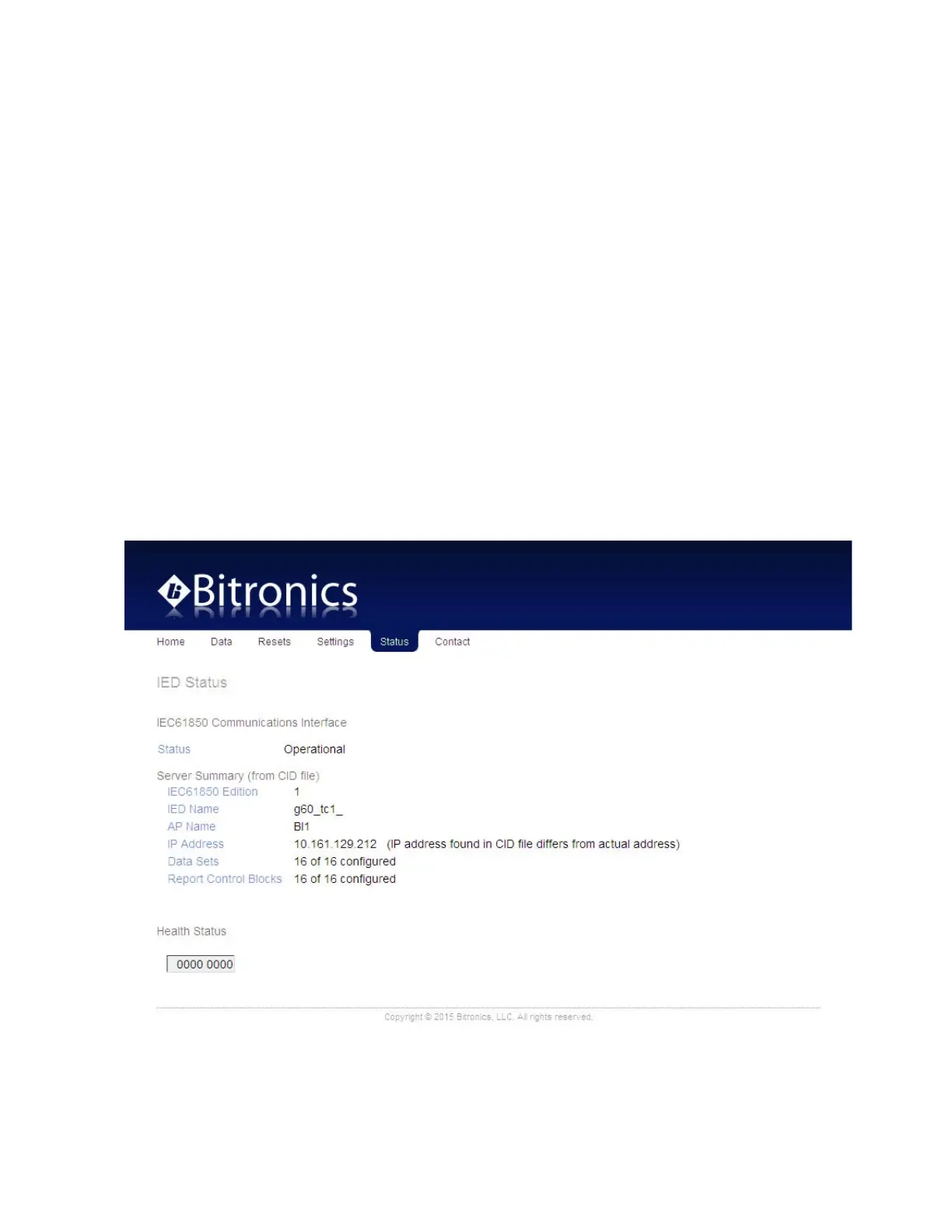

The IED Status page shows the status of the IEC61850 communications interface and
the health status. The IEC61850 status states are Operational and Not Running.
When the 61850 stack is not running, the reason is displayed. When the 61850 stack
is not able to start due to an error, the startup log is displayed for additional detail.
In the M66x, the firmware upgrade and measurements offline bits have been
separated. A protocol configuration error bit has also been added.
0, "Analog output calibration error"
2, "Gain calibration error"
4, "Phase calibration error"
12, "Firmware upgrade in progress"
13, "Measurements offline"
15, "Protocol configuration error"
