ML0042 October 15, 2019 - 94 - Copyright 2019 Bitronics, LLC

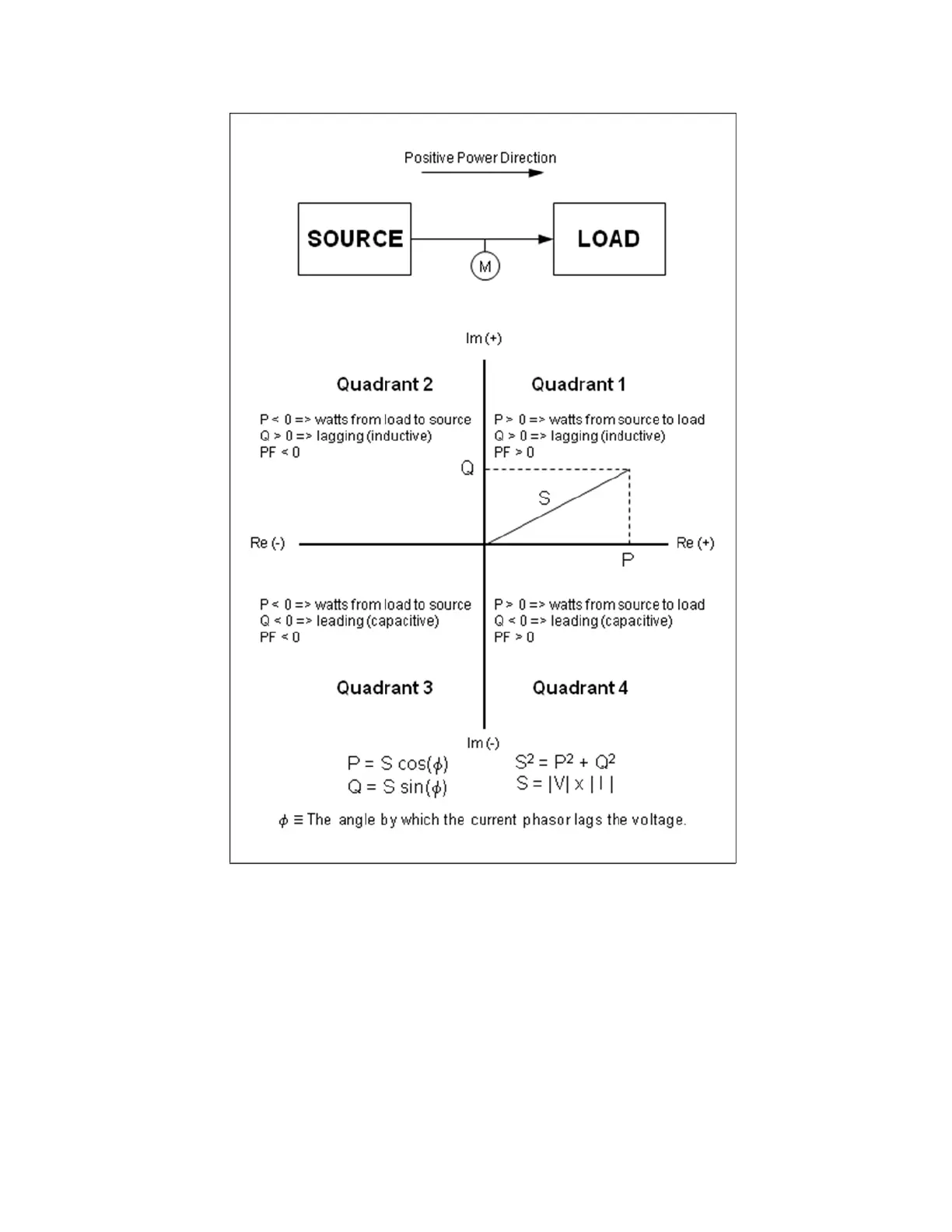

Figure 10 - Sign Conventions for Power Measurements
(P is Power, Q is VARS and S is VA)
