Novation LaunchPad Mini User Manual

LED Settings

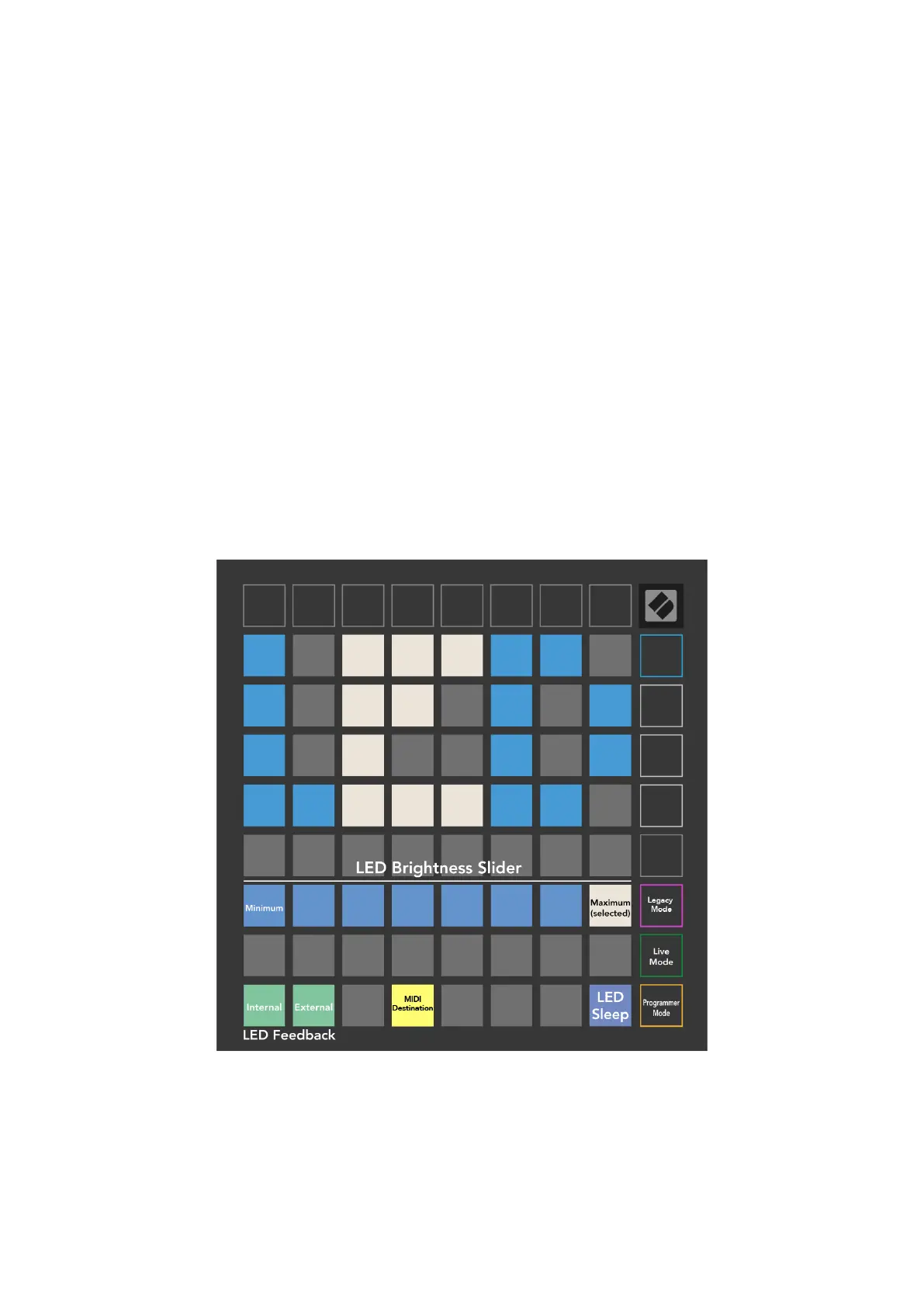

The first Scene Launch button accesses the LED settings for Launchpad Mini. Here you can change LED
brightness, LED feedback, and enter LED sleep.
The LED brightness level slider has 8 levels, from minimum to maximum brightness. The brightly lit white
pad indicates which level is currently selected.
LED feedback (internal) toggles whether pads on the 8×8 grid light up when pressed in Custom Modes. Bright
green indicates that LED feedback (internal) is enabled, whereas dim red indicates that it is disabled. The
setting is enabled by default. LED feedback (external) toggles whether pads on the 8×8 grid light up when
MIDI is received externally in Custom Modes and Programmer Mode. Bright green indicates that LED feedback
(external) is enabled, whereas dim red indicates that it is disabled. The setting is enabled by default.
MIDI Destination toggles MIDI data sent to both USB MIDI ports (brightly lit) or only the second USB MIDI port
(dim). This setting is ignored in Session mode where no Note or Custom data is sent to the first USB MIDI port.
LED sleep may be pressed to turn o all LEDs on Launchpad Mini. Press any button or pad to wake up the
device. This is useful for when you are not using Launchpad Mini, but you do not want to unplug it.
19

Novation LaunchPad Mini Specifications

General

Connectivity	USB
Type	MIDI controller
Grid	8x8 RGB LED pads
Pads	64 RGB Backlit Pads
Compatibility	Ableton Live
Dimensions	180mm x 180mm x 14.2mm
Software	Ableton Live Lite
Power	USB bus powered
Controls	Buttons
