OPERATION 9. HOW TO USE APPLIED FUNCTIONS (SWITCH OUTPUT)
9-4-2. Deletes by the Switch Units
The deletion method by the switch unit that the all dog setting values in selected switch No. is deleted.
The following procedures perform deletion.
The deletion is set in the switch setting (SET) mode.
For mode selection methods, refer to the “7-6-1. Selects the Switch Setting (SET) Mode”.

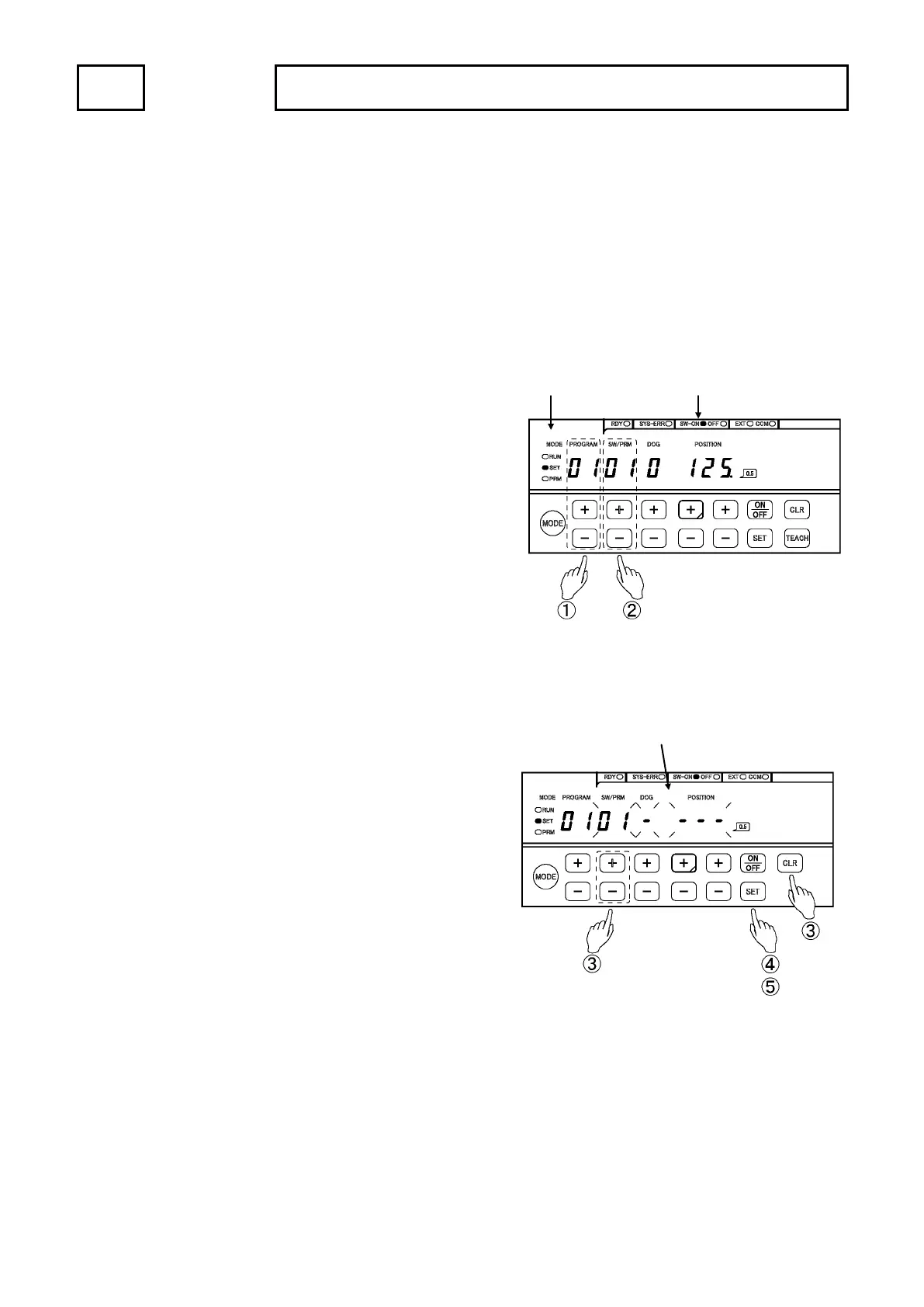

Selects the program number.
Selects the program number by
pressing [+] or [-] key of PROGRAM.
VS-5F and VS-5F-1 don’t have any program
function. Starts the operation from ②.
Selects the switch number.
Selects the switch number by
pressing [+] or [-] key of SW / PRM.
Changes the deletion mode.
Hold down [CLR] key and press [+] or [-] key
of the SW/ PRM.
SW / PRM, DOG, and POSITION display
areas are blinking.
If [CLR] key is pressed in this timing, a deletion by
the switch unit will be canceled.
Confirms the deletion.
Presses [SET] key.
SW / PRM, DOG, and POSITION display
areas are blinking faster.
Reconfirm the setting value of selected
switch numbers should be deleted.
If [CLR] key is pressed in this timing, a deletion by
the switch unit will be canceled.
Deletion
Presses [SET] key again.
SW / PRM, DOG, and POSITION display
areas turn ON.
The setting value of selected switch number
is deleted.
The display area blinks by ③ operation.
The display area blinks fast by ④ operation.
SW-ON LED
is ON
SET LED
To Next Page
