NSK TiMax Z User Manual

Push Button
4
ENGLISH GERMAN FRENCH SPANISH ITALIAN
5
2-2 Disconnecting
Hold the motor and the handpiece, and pull it out.

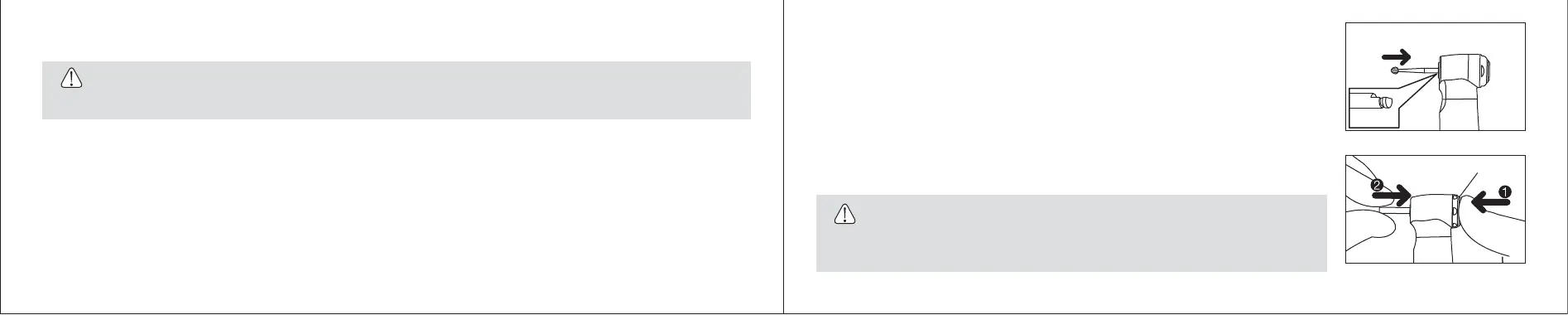

4. Mounting/ Removing the Bur
4-1 Mounting the Bur
4-1-1 Mounting the Bur
(
Contra Bur
)
to Z10,Z10L,Z15,Z15L,Z25,Z25L
1
)
Connect handpiece and motor.
2
)
Insert and llightly turn the bur until it engages with the latch mechanism.
(
Fig. 1
)
3
)
Push the bur further inwards until it clicks into place.
4-1-2 Mounting the Bur
(
FG Bur
)
to Z85,Z85L,Z95,Z95L
1) Connect handpiece and motor.
2) Depressing the push button and insert the bur into the chuck.
(
Fig. 2
)
CAUTION
Connect ONLY E type motor
(
ISO3964
)
and do not exceed maximum motor speed such as shown on the specification.
CAUTION
· After the Bur is locked in place, lightly pull out the Bur to make sure the Bur is locked.
· If the Bur is not correctly secured it may release during operation and can cause injury.
3. Check before treatment
Follow the check below, before use. If any abnormalities are found, stop using the handpiece immediately and contact the authorized NSK dealer
1
)
Insert the Bur.
(
Do not exceed maximum rotation speed for any item.
)
2
)
Check that there is no abnormal rotation, vibration, noise and overheating.
3
)
If there are no immediate apparent abnormalities, continue to rotate the handpiece for about 1 minute. Then check that there is no abnormal
heating on the outer surface.
4
)
Operate it if there are not abnormalities above.
Fig. 2
Fig. 1
D-shape
