3
Wiring Combination Alarm Condition Output State
No alarm Open
Alarm Closed
N.O.—COM
Lose power Open
No alarm Closed
Alarm Open
N.C.—COM
Lose Power Closed
Lead Wire Connections for Water Sensor Cable

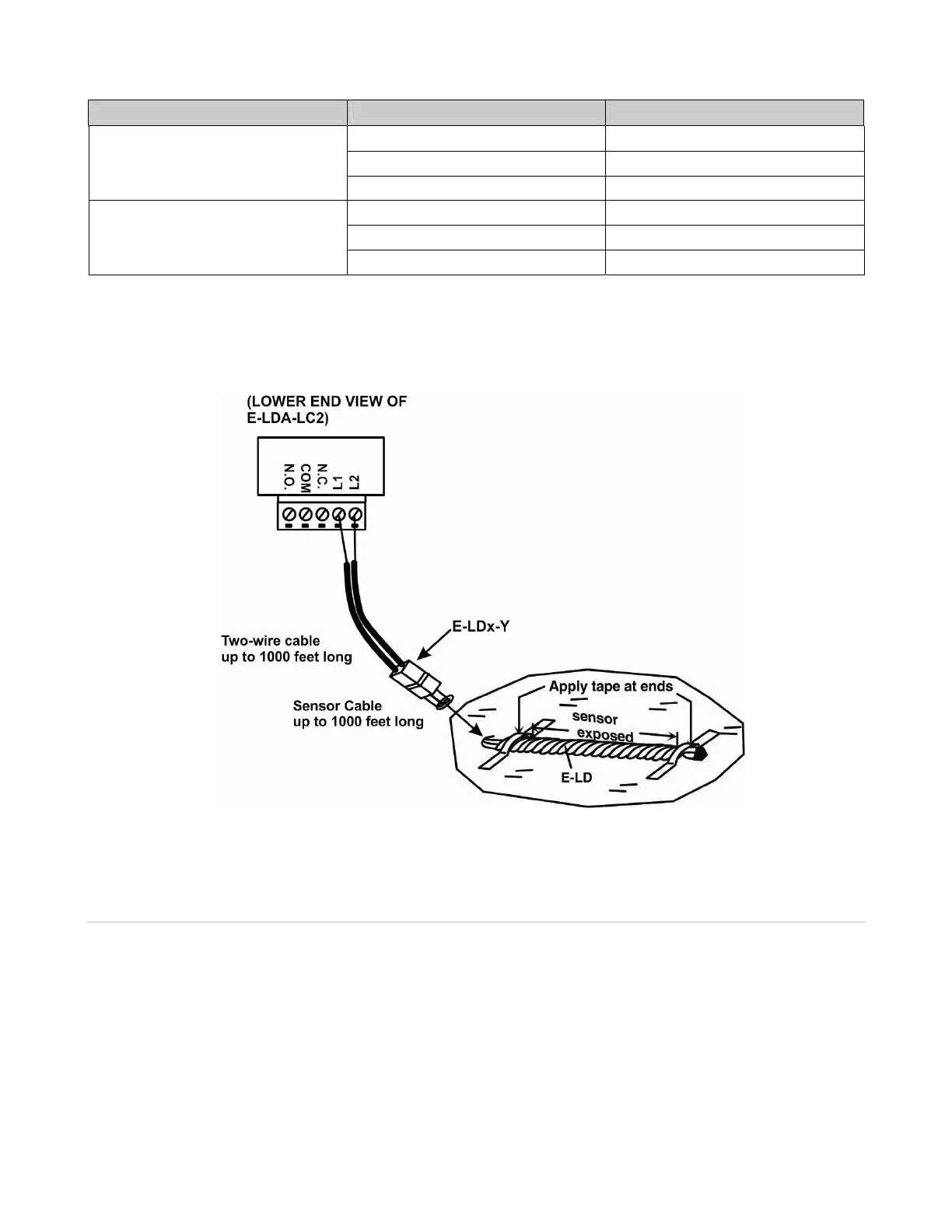

The E-LDA-LC2 can use the E-LDx-y sensor cables or any other similar sensing cables. Connect the cable as shown below:
Figure 3: Connect sensing cable
Note: When used with the E-LD-LCx-y Low-Cost Liquid Detection sensor cable the maximum sensor cable length is
limited to 600 feet.
