Trinity Lx │Installation and Operation Instructions Lx Series
24

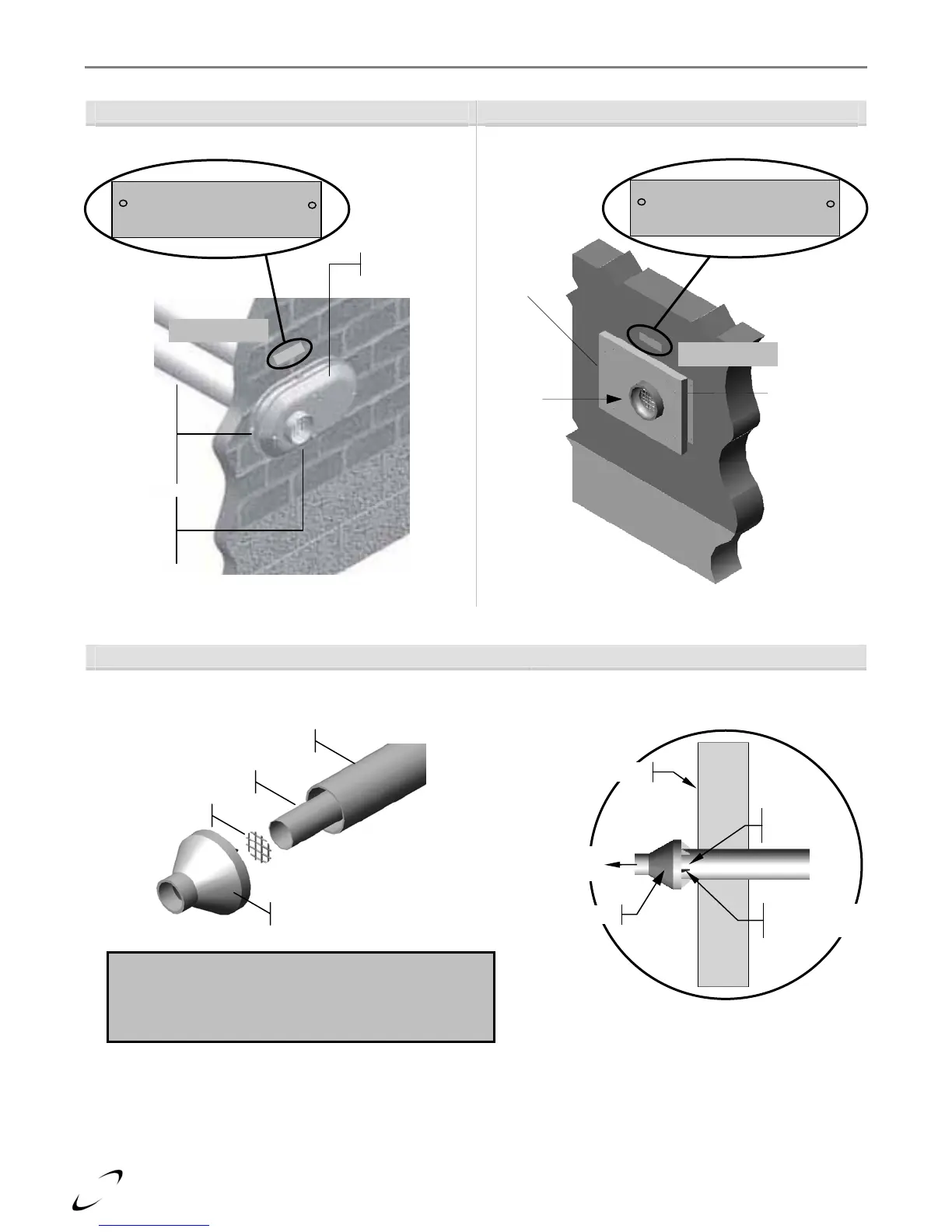

Figure 4-14 All Models Figure 4-15 Lx300-800 Only
Low Profile Wall Termination (Optional Kit) Side Wall Termination (Optional Kit)
Labeling and Identification – Optional Vent Termination Kits
Figure 4-16 Lx150-800
Concentric Vent Termination Kit
Concentric Vent Termination Kit
Insert vent screen between exhaust vent and the end cap as
shown. Vent screen included with kit. The End Cap must be
secured to the vent pipe via cement or stainless steel
screws. Refer to Figure 4-14 for more details.
Air Inlet Pipe
Exhaust Vent
Vent Screen
End Cap
Combustion
Air-Inlet
(between
back of vent
terminal and
exterior wall)
Gas Vent Directly Below
Keep Free of Obstructions
Exhaust
Vent with
Vent Screen
Warning Plate
Air Inlet
Pipe
Fully Assembled
and Installed
End Cap Vanes
(typical)
End Cap
Exhaust
Vent
Exterior Wall
Gas Vent Directly Below
Keep Free of Obstructions
Warning Plate
Exhaust
Vent with
built in Vent
Screen
Combustion
Air-Inlet
(between
back of vent
terminal and
exterior wall)
Vent Terminal
