Trinity Lx │Installation and Operation Instructions Lx Series
30

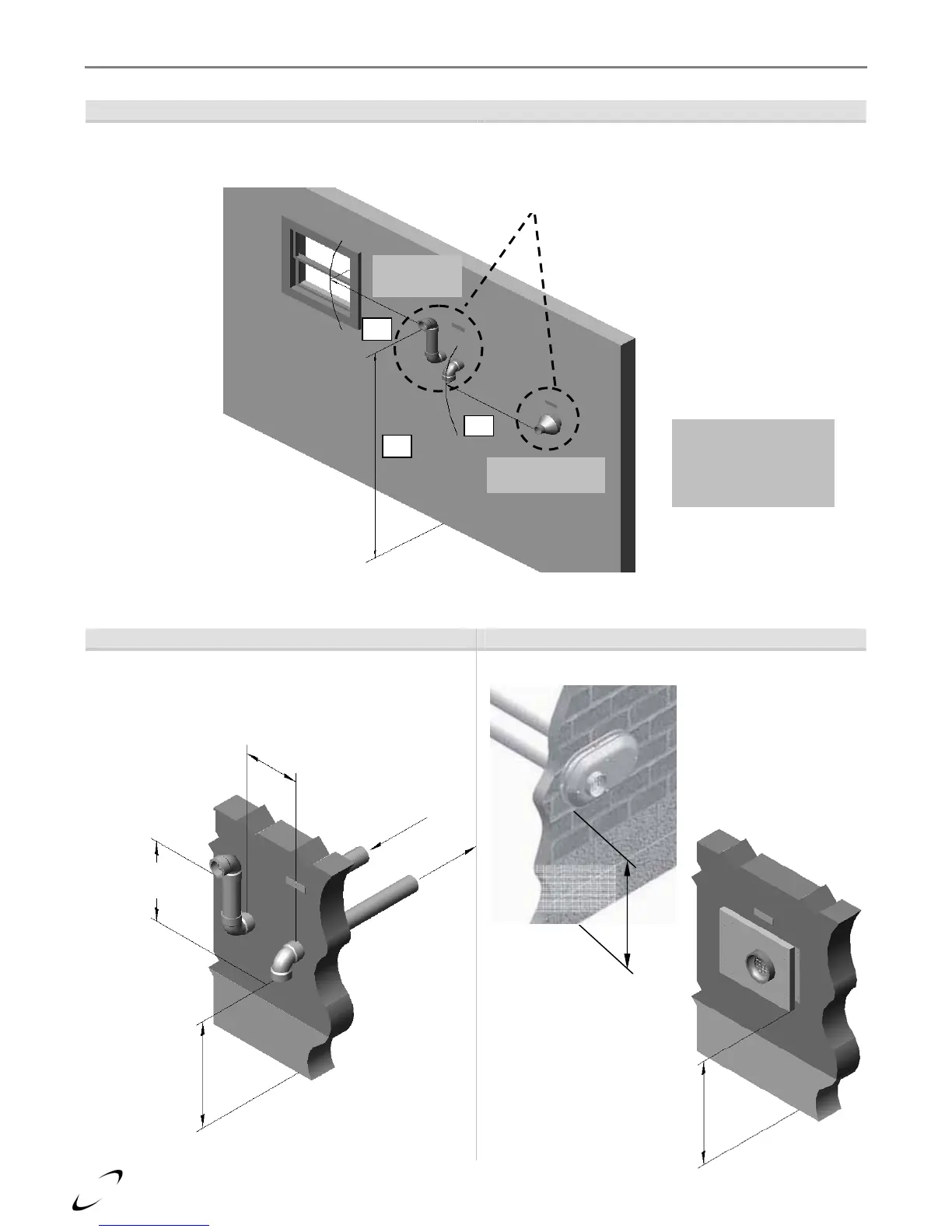

Illustrations of Termination Clearances
Figure 5-2 All Models
Side Wall Termination - Clearances Above Grade
Figure 5-3 All Models Figure 5-4 Applicable Models
Two-Pipe Side Wall Clearances Low Profile and Side Wall Kit Clearances
Vertical Separation
Horizontal Separation
4-12” [102 mm – 305 mm] or
greater than 36” [915 mm]
From
appliance
exhaust
Minimum
12” [305 mm]
above grade
and snow level
To appliance
air-inlet
connection
Minimum 18”
[457 mm]
Concentric Vent
Termination
Q
Two-Pipe
Termination
Clearances “F” and “G”
Canada – Minimum 3 ft [915 mm]
The US
– Minimum 1 ft [305 mm]
F
Clearance “Q”
Adjacent to Public
Walkway or Driveway
Minimum 7ft [2.13 m]
G
The letters represents a
specific Termination
Position. Refer to Table
5-1 for corresponding
termination clearances.
Minimum
12” [305
mm]
above grade
and snow level
Minimum 12” [305
mm] above grade
and snow level
