NUM 1040 M - Page 364

C - 6 en-938821/2

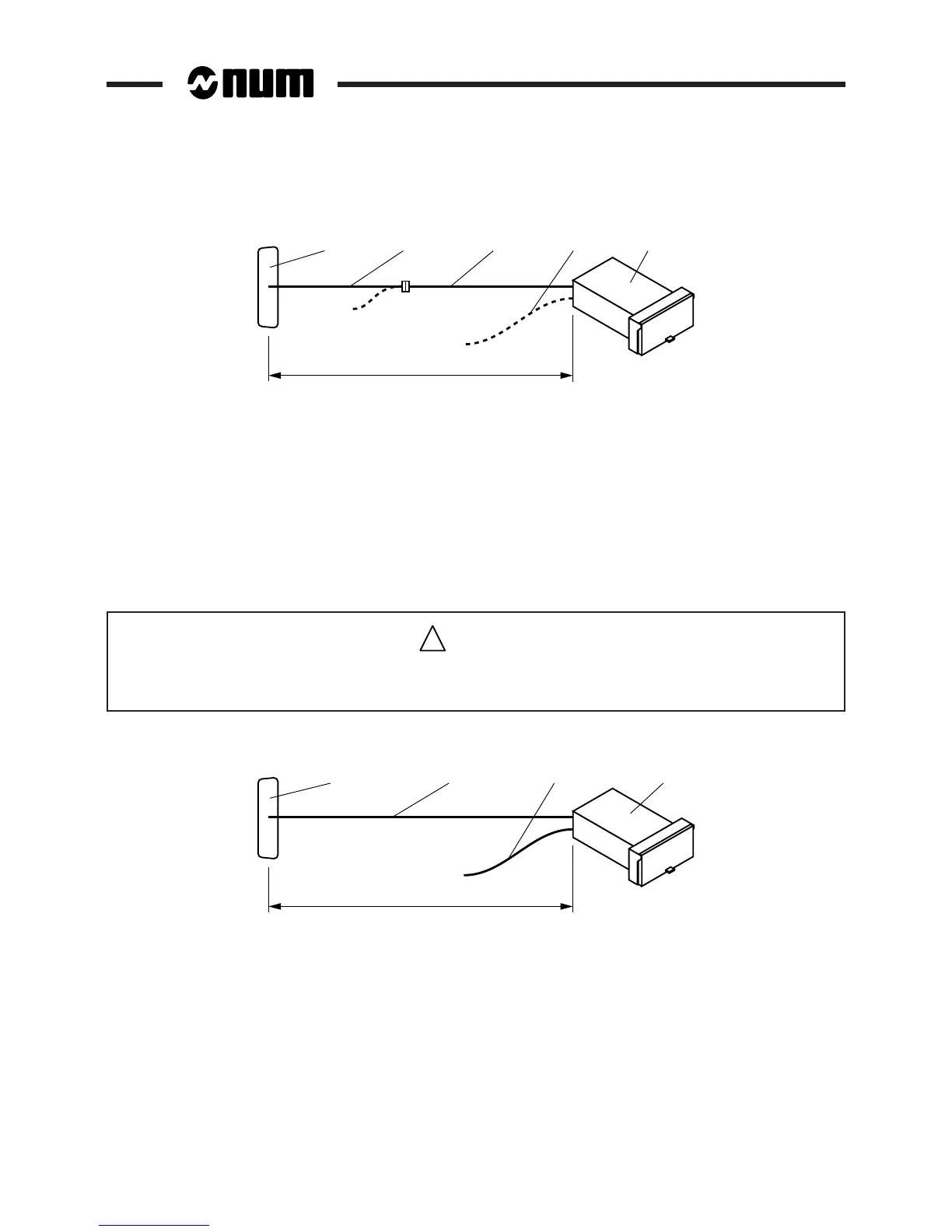

C.1.1.6 Connection of NUM Diskette Drive with Remote RS 232 Line
1 3 5
24 V
42
24 V
≤ 10 m
1 - RS 232 line:
• 25 contacts on machine and CNC processors, TTL/RS 232 adapter or UC SII CPU
• 9 contacts on UC SII CPU
2 - RS 232 line cable on V2 machine processor, V2 CNC and 1020, 1040 or 1050 with or without power supply:
• Remote on machine panel (See C.1.2.6)
• Remote on compact panel (See C.1.2.6).
3 - RS 232 serial link cable (See C.1.2.4) or cable supplied (P/N 206203324)
4 - Drive power cable (only when cable 2 does not provide the power supply: See C.1.2.5)
5 - NUM diskette drive
REMARK Configure the serial lines using the serial line parameters utility (See 8.3). Set the
lines for RS 422 standard.
!
CAUTION
The NUM diskette drive can only be used on the 25-contact line of the UC SII CPU when the
UC SII CPU has a card with an index number equal to 204202896/H or above.
C.1.1.7 Connection of NUM Diskette Drive to an RS 422 Line
1 2 4
24 V
3
≤ 40 m
1 - Multistandard line configured for RS 422
• 15 contacts on IT/serial line card
• 9 contacts on V2 machine processor, V2 CNC and UC SII, 1020, 1040 and 1050 (serial) CPUs
2 - RS 422 serial link cable (See C.1.2.7)
3 - Drive power cable (See C.1.2.5)
4 - NUM diskette drive
REMARK Configure the serial lines using the serial line parameters utility (See 8.3).
