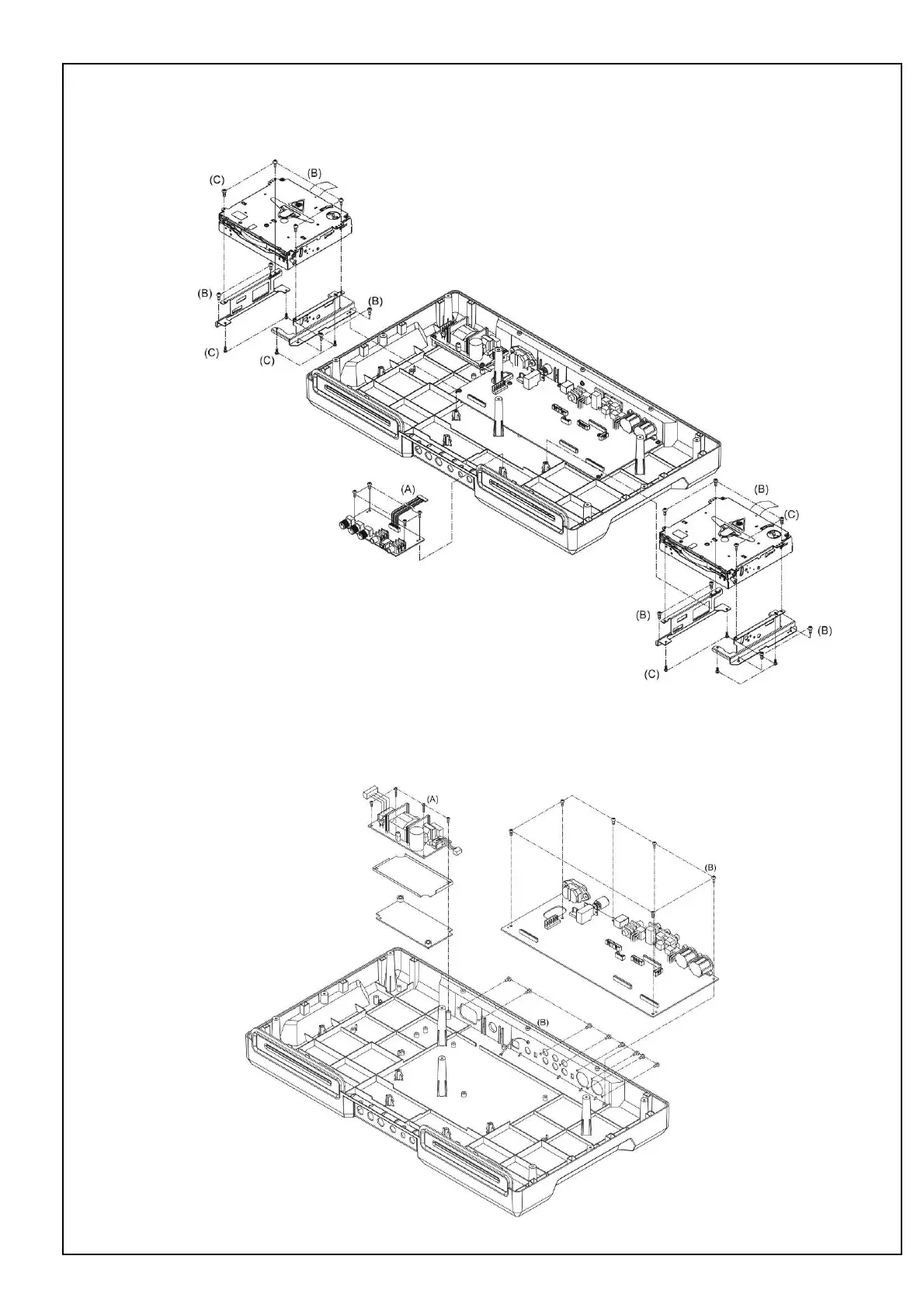

2.REMOVAL OF FRONT PCB AND SLOT-IN LOADER ASSEMBLY. (Fig.2)
(A) REMOVE THE 4 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF
FRONT PCB ASSEMBLY.
(B) REMOVE THE 8 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF
SLOT-IN LOADER
ASSEMBLY.
(C) REMOVE THE 16 PCS SCREWS BEFORE REMOVAL OF FIXED PLATE(R/L).
Fig.2
3.REMOVAL OF SWITCHING POWER AND MAIN PCB ASSEMBLY.(Fig3)
(A) REMOVE THE 4 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF SWITCHING POWER
ASSEMBLY.
(B) REMOVE THE 14 PCS SCREWS AND 1 PC GND WIRE BEFORE REMOVAL OF S MAIN PCB ASSEMBLY.
Fig.3
To Next Page
