Numark MIXDECK EXPRESS BLACK

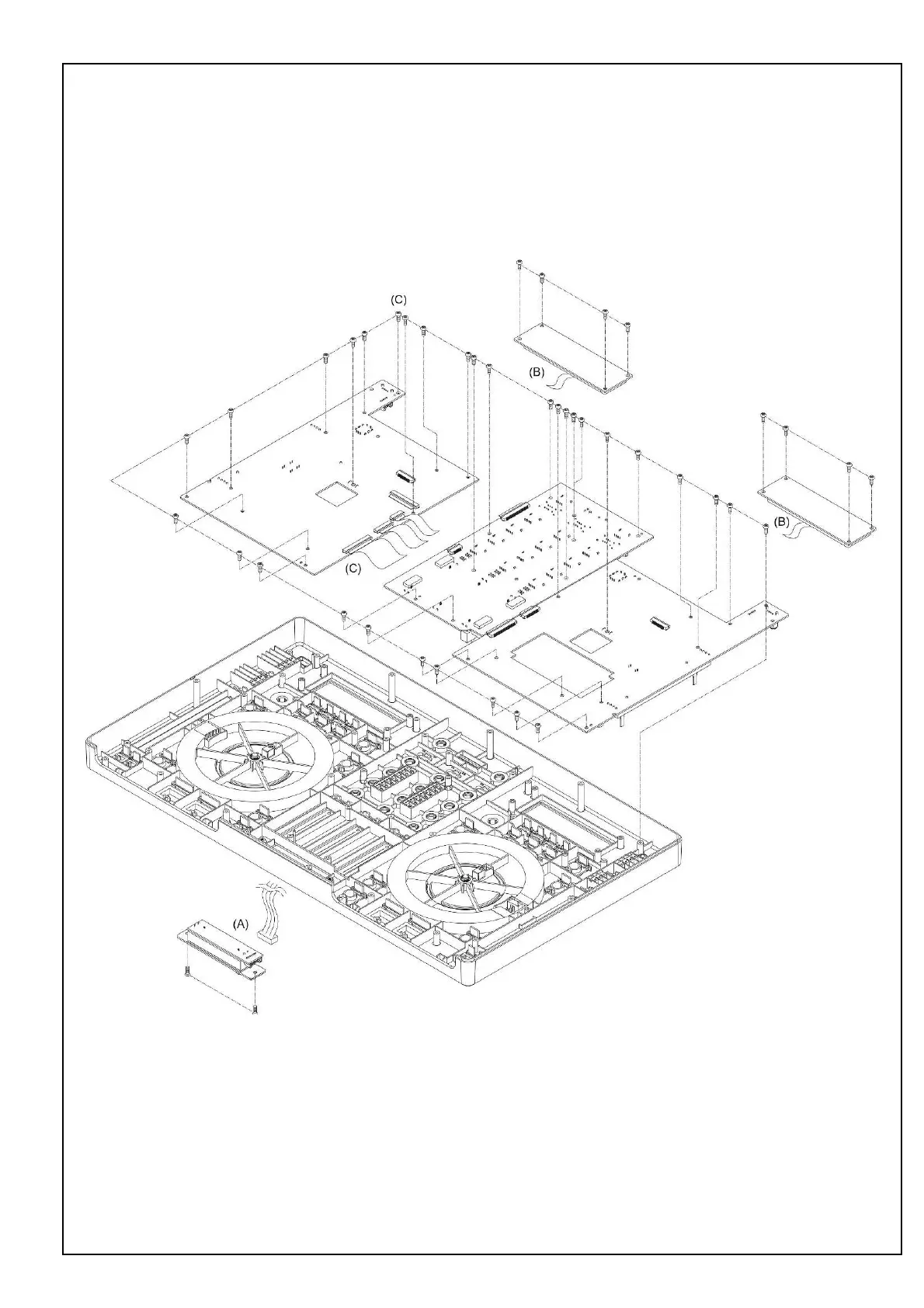

4.REMOVAL OF LCM PCB AND MIXER PCB AND RIGHT \ LEFT CTRL PCB AND CROSS FADER PCB
ASSEMBLY.(Fig4)
(A) REMOVE THE 2 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF CROSS FADER PCB
ASSEMBLY.
(B) REMOVE THE 8 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF LCM PCB ASSEMBLY.
(C) REMOVE THE 32 PCS SCREWS AND 3 PCS CONNECTORS BEFORE REMOVAL OF MIXER PCB AND RIGHT
\ LEFT CTRL PCB ASSEMBLY.
Fig.4
