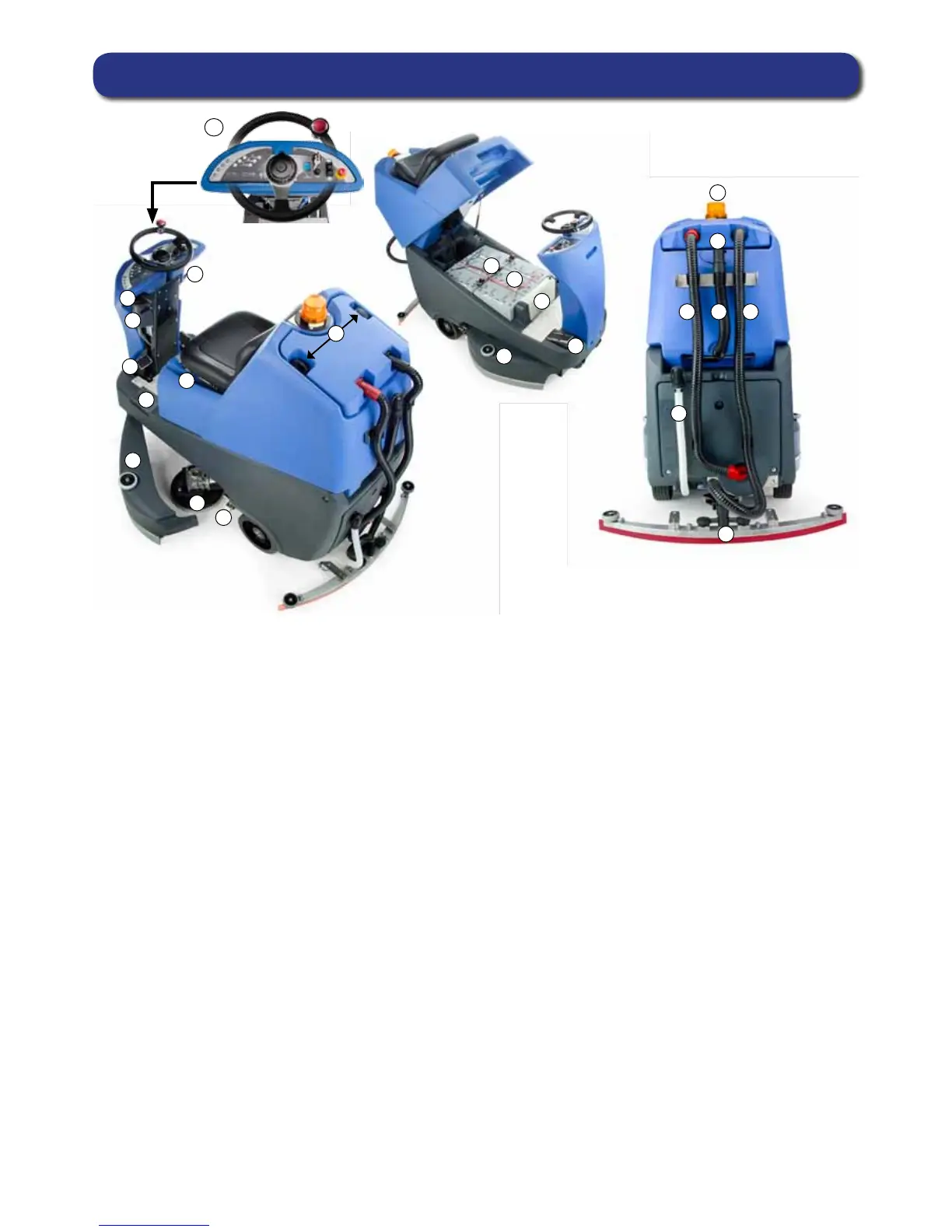

Numatic TTV 678-300 - Machine Overview and Components; Identification of Key Machine Parts

235470 09/13 (A10)
3
1. Operator control panel ( see page 4 )
2. Brush load-adjuster knob
3. Brush deck-release lever
4. Brush deck-foot pedal
5. Clean-water tank ll point
6. Side pod and skirt
7. Brush deck motors x3
8. Brush deck cover adjustment / width lever
9. Floor-tool raise / lower lever
10. Seat adjustment lever
11. Separator release catches
12. 30 Amp battery fuses x4 ( 8 battery machine )
40 Amp battery fuses x3 ( 6 battery machine )
13. Gel batteries (606167)
14. Chemical dosing tank ( 4 litre )
15. Accelerator pedal
16. Clean-water tank emptying hose
17. Semi parabolic oor-tool
18. Vacuum hose
19. Waste water emptying hose
20. Floor-tool vacuum hose
21. Air separator assembly
22. Pedestrian warning light
1
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18 19 20
21
22
6
11
2
Machine Overview
