7
Please read before commencing any operation.

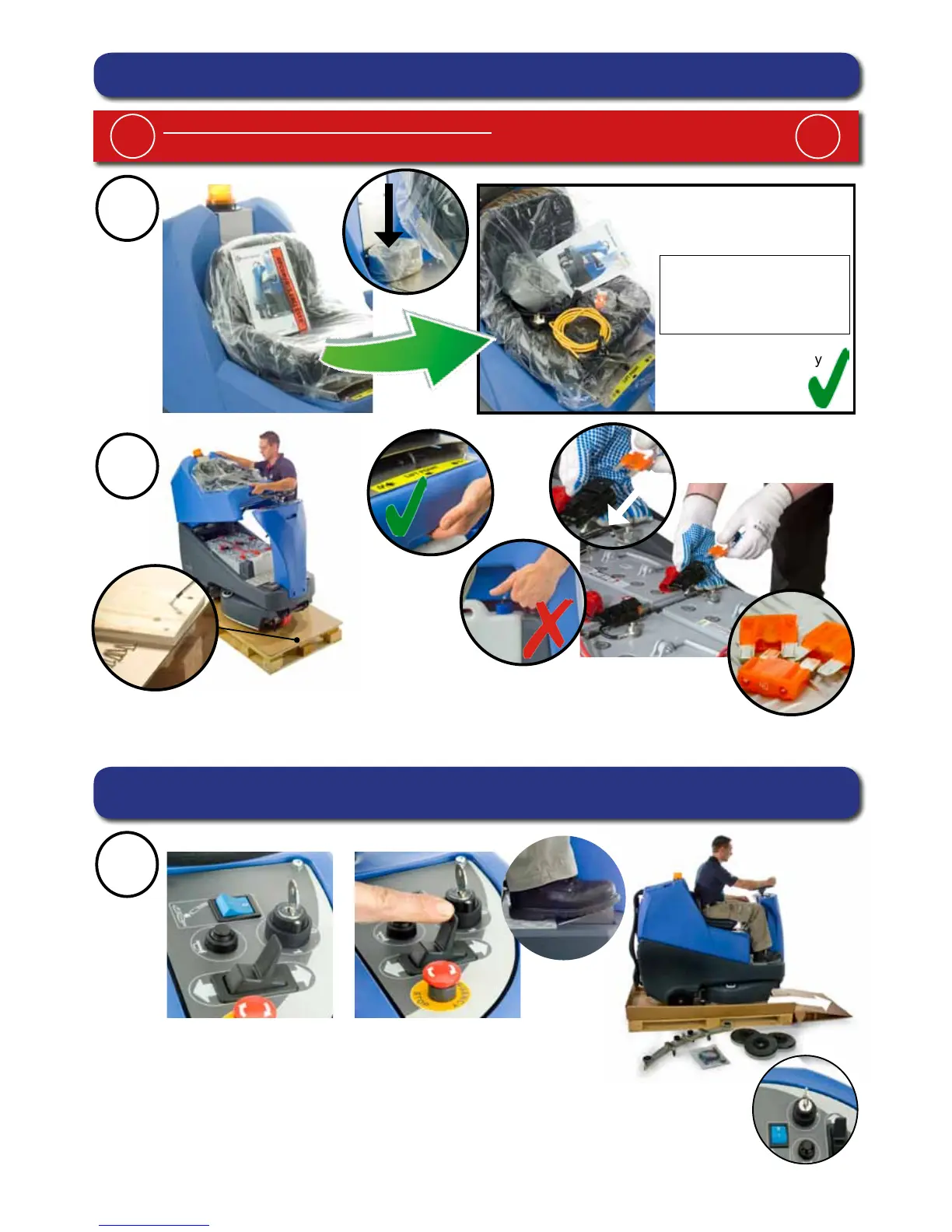

After the removal of all the packaging, carefully open and check the contents of the start up pack (Fig.1).
!
!
1
Contents:
1 x Operator Manual
2 x Battery charging lead
2 x Keys
4 x 40 amp fuses (1 x spare)
TTV678/300T
or
5 x 30 amp (1 x spare)
TTV678/400T
2 x Side pod skirts
1 x Brake disengage key
1 x Maxi fuse-puller
Fig.1
2
Fig.2a
Note: Ensure that no metal objects come into contact with battery terminals while the batteries are exposed.
When inserting the rst fuse you may notice a spark, this is normal.
Lift top tank assembly to reveal battery compartment.
Always lift between points as illustrated to ensure personal safety (Fig.1a).
Fit battery fuses (contained in start-up pack) into the battery fuse holders as illustrated (Fig.2).
Remove transit block from pallet (Fig.2a).
3
Fig.1a
Fig.2
Insert key (Fig.3) into ignition and turn quarter-turn clockwise to the ‘ON’ position.
Ensure that the forward/reverse switch is set to forward (Fig.4).
Depress accelerator pedal with right foot and slowly drive machine off of the pallet
using the ramp provided (Fig.5).
Note: The seat is tted with a pressure sensor that disables the machine until an operator
is seated.
When the machine is removed and in a safe position, turn key back to the off position (Fig.6).
Fig.6
Fig.3
Fig.4
Fig.5
Quick Set Up Guide
