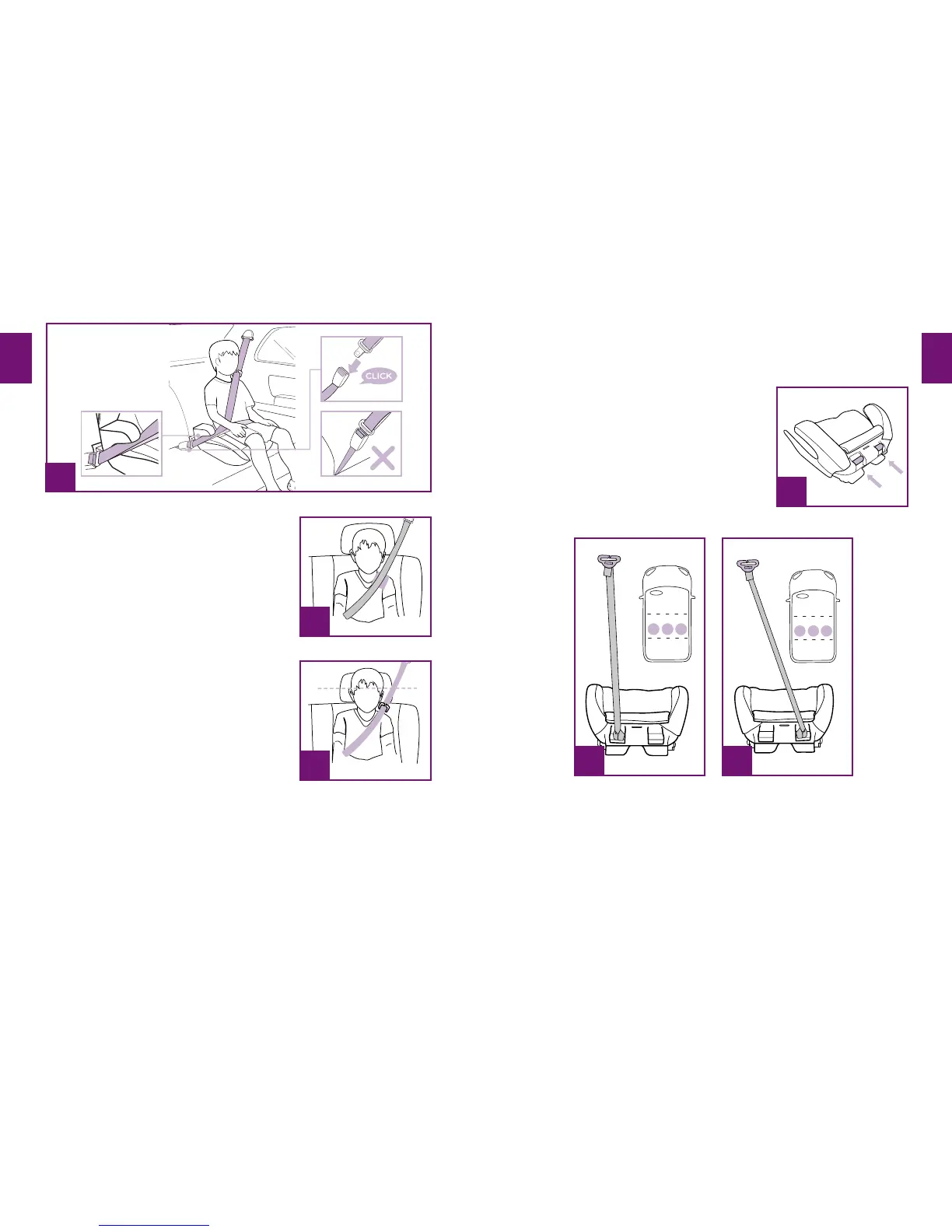

5 If the Vehicle Shoulder Belt falls
outside the purple zone shown in
(28), use the Shoulder Belt
Positioning Clip for proper placement
of the Vehicle Shoulder Belt. Refer to
Shoulder Belt Positioning Clip.
6 Route the Vehicle Shoulder Belt
through the Shoulder Belt Positioning
Clip. Adjust the Shoulder Belt
Positioning Clip by pulling down
on the strap so the Shoulder Belt
Positioning Clip is slightly above the
child’s shoulder as shown (29).
The top of the child’s ears should be AT
or BELOW the top of the vehicle seat
back or the vehicle’s headrest.
29
28
27
2
1
3
30
Use of Shoulder Belt
Positioning Clip
1 The Shoulder Belt Positioning Clip
must be attached to the horizontal bar
located on either side of the booster
seat bottom. (30)
2 The Shoulder Belt Positioning Clip
can be installed on either side of the
booster to achieve the best t for your
child in your vehicle. (31, 32).
31 32
3 Insert the loop end of the strap around the horizontal bar on the
back of the booster (33), pass the Shoulder Belt Positioning
Clip through the loop (34) and pull up on the strap. (35)
