It is important for the Vehicle Shoulder
Belt to fall within the purple zone,
shown in (36).
Cup Holder
Assembly

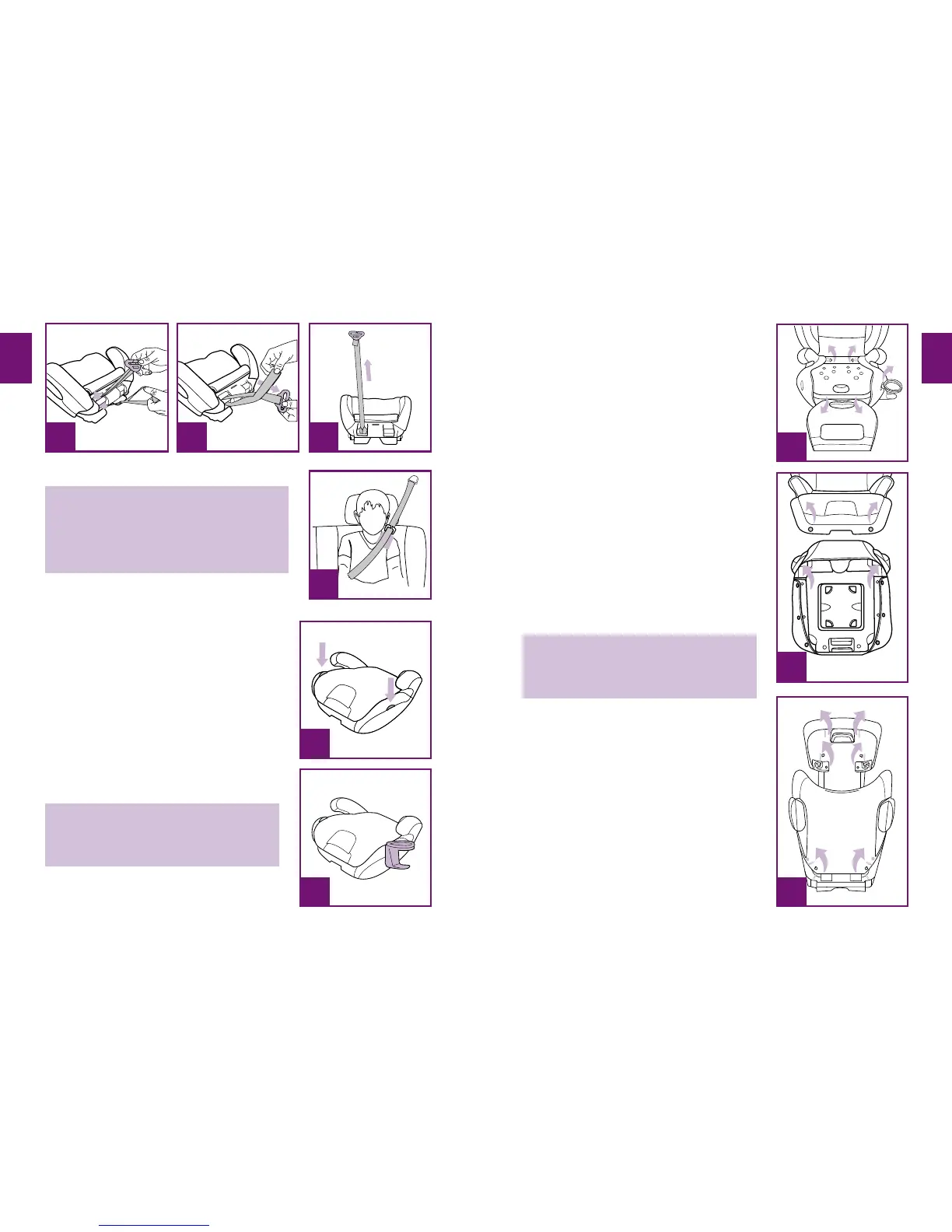

Insert the Cup Holder clip into the
opening on either side of seat. (37) Make
sure the Cup Holder clip is fully inserted
into both the fabric and plastic slot on
booster. (38)
Never place hot liquids in the Cup
Holder.
39
40
41
Detach Covers
1 Remove the Cup Holder and pull out
the seat bottom fabric by removing
the 3 plastic attachments. (39)
2 Open 8 snaps on seat bottom and
remove cover. (40)
3 On the main seat back cover, open
the 2 snaps and unhook 4 elastic
bands on the back side and remove.
(41)
4 On the Head Support, raise to highest
position, then unhook 4 elastic bands
and remove. (41)
To reassemble the covers simply
reverse the steps above.
Use care not to damage energy
absorbing foam when removing
seat covers.
