DO NOT position the Vehicle Lap Belt over the armrest. It must
pass under the armrest.
Make sure the Vehicle Shoulder Belt is routed completely
through the shoulder belt guide.

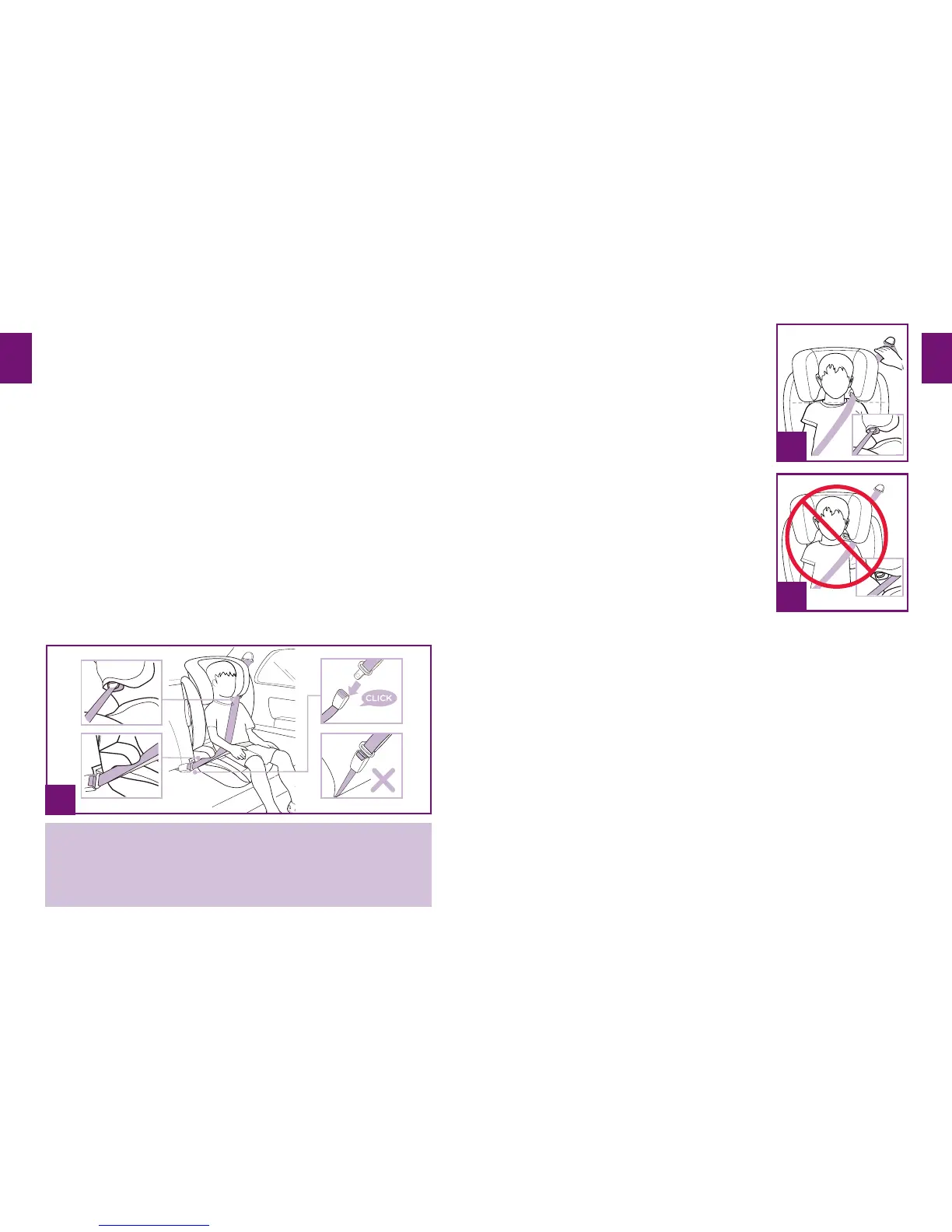

Securing a Child in the High
Back Booster Mode
1 With the booster correctly positioned in the vehicle, raise the
Head Support and route the Vehicle Shoulder Belt through
the RED shoulder belt guide (24)-1. The bottom of the Head
Support should be at the top of the child’s shoulder.
2 Route the Vehicle Shoulder Belt across the child’s chest
through the RED lower belt path, located under the armrest
(24)-2, toward the vehicle buckle then secure the vehicle
buckle and listen for a “click.” (24)-3
3 The vehicle lap belt must lie at and snug across the child’s
thighs. The Vehicle Lap Belt must be positioned low on the
pelvis.
4 The booster can not be used if the vehicle safety belt buckle
(female buckle end) is too long to anchor the booster securely.
(24)-4
25
26
5 To properly adjust the Head Support,
have your child sit in the booster
with their back at against the back
of the booster seat.
The correct Head Support height
is obtained when the bottom of the
Head Support is even with the top
of your child’s shoulders and the
Vehicle Shoulder Belt is laying at
across their chest. (25)
6 Pull up towards the vehicle belt
retractor to remove slack. (25)
7 The Vehicle Shoulder Belt must
route completely through the RED
Shoulder Belt Guide and not fall off
the child’s shoulder. (26)
