Nuna revv - Lower Anchor System Operation; Lower Anchor Belt Installation Steps

Softgoods Removal
Head Support

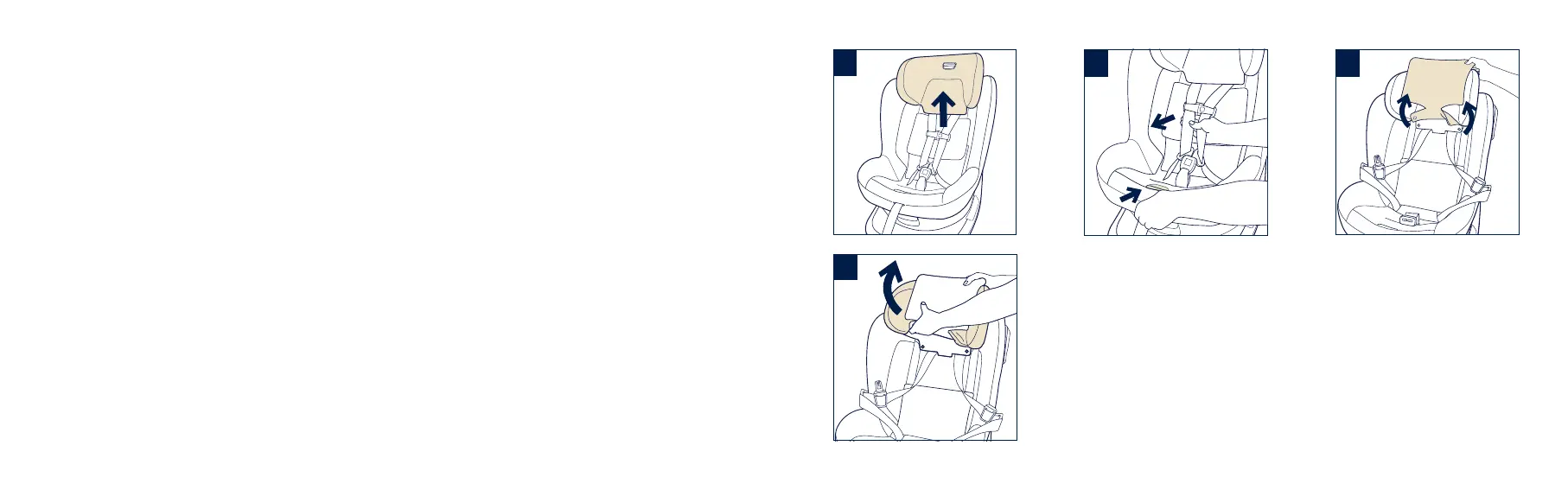

1 - Remove shoulder harness pads, infant insert, infant insert wedge, head insert, hip
harness pads, and crotch pad. Lift the head support to the highest position.
2 - Loosen harness straps, undo the chest clip and harness buckle.
3 - Lift up on the head support lower section and undo the two head support snap
buttons.
4 - Pull head support fabric up and over the head support frame sides. At the same time
guide the elastic strap up the back of the head support frame. Remove the head
support fabric.
2 3
1
4
