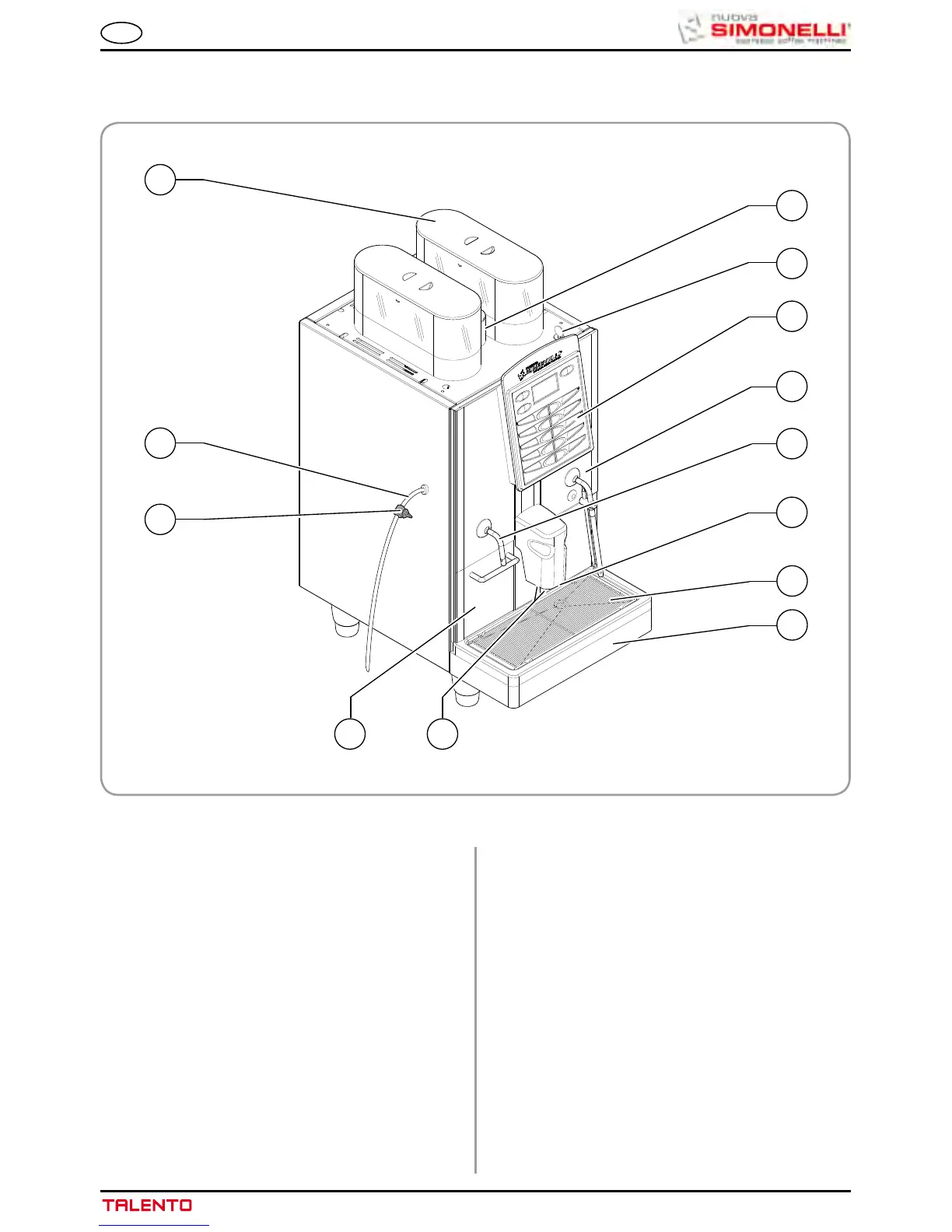

Fig. 1
37
EN
LEGEND
1 Coffee bean holder cap
2 Control panel
3 Front door
4 Steam pipe / Hot water pipe
5 Drop collecting tray grid
6 Coffee grounds drawer
7 Coffee nozzles
8 Milk/Cappuccino nozzle
9 Control panel hatch opening / locking key
10 Ground coffee conveyor hatch
11 Milk suction tube
12 Milk flow adjusting tap
13 Water collecting tray
1. DESCRIPTION
37
9
10
5
13
6
12
11
1
7
2
3
4
8
