PREPARE THE CABINET (CONT’D)

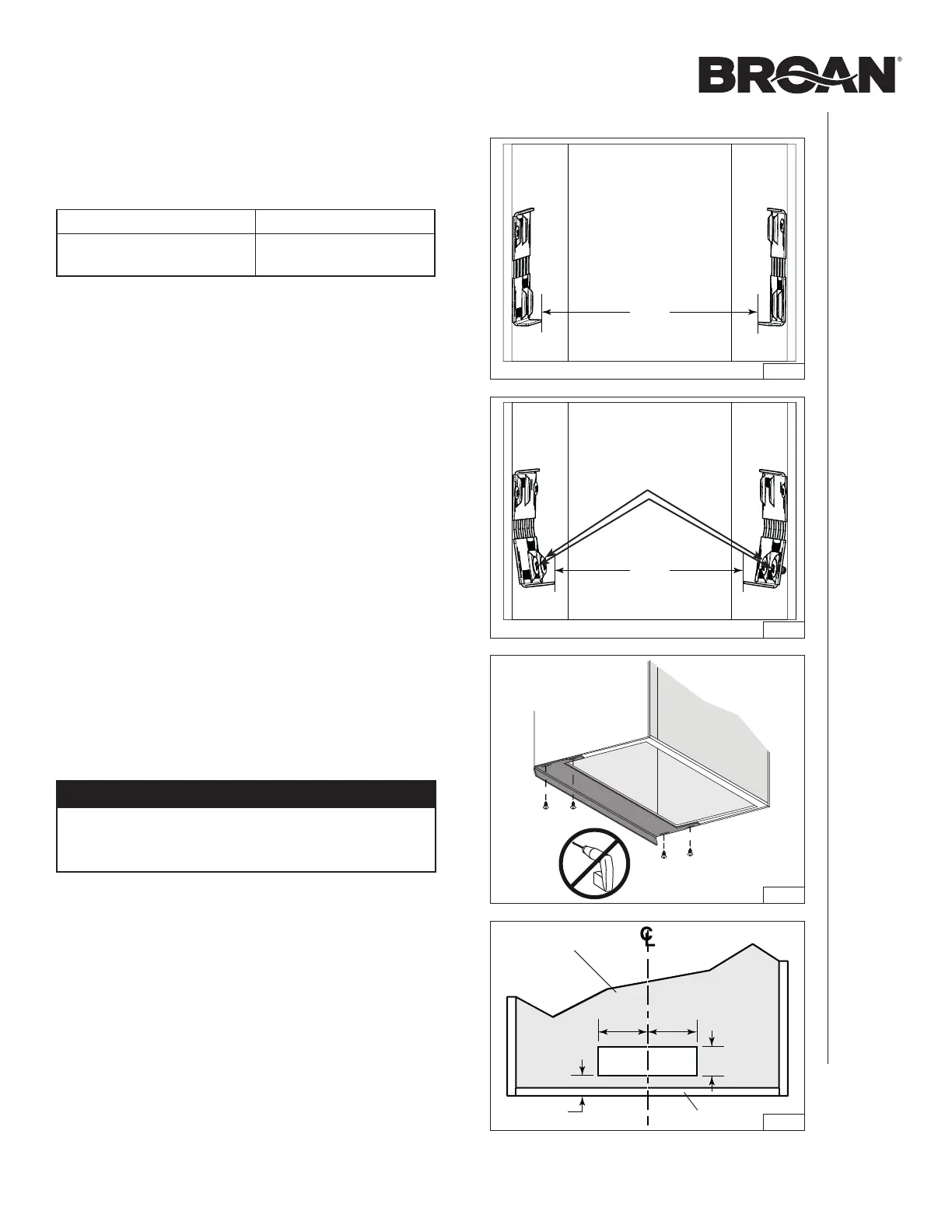

6. Measure the distance between both bottom bracket
edges (F) (FIG. 10). The table below shows the approriate
distance needed.
NARROW EDGE WIDE EDGE
F
From 27-7/8” to < 28-1/16”
F
From 28-1/16” to 28-5/16”
If the measured distance needs to be shortened, screw two
no. 8-32 x 1/4” machine screws, in each bottom embossed
cabinet brackets hole; this will slightly bend the bottom part
of the brackets (FIG. 11). Screw both brackets until the
appropriate distance is obtained.
FIG. 13
CABINET BACK WALL
CABINET BOTTOM
7. There are 3 different sizes of filler included with these units,
designed to fit up to 13-in. depth cabinets. For up to 15-in.
depth cabinets, another set of 4 fillers is available (order
HADTBN30). Choose the filler that fits to cover the back
bottom edge of the cabinet. Use 4 no. 6 x 5/8” truss head
wood screws (included) to mount it (FIG. 12).
HORIZONTAL EXHAUST INSTALLATION ONLY
This powerpack insert is factory shipped to exhaust vertically;
however, it is possible to make it exhaust horizontally (3¼” x 10”
ducting only).
8. Cut the hole for the horizontal exhaust through the back
wall of the cabinet using the dimensions shown. (FIG. 13).
FIG. 12
CAUTION
Never use an electric screwdriver or drill to screw the
filler to the bottom edge of cabinet; use a standard
screwdriver.
FIG. 10
FIG. 11
Screws in bottom
embossed holes
To Next Page
