NuTone Evolve PTE511RK - New Construction;Retrofit Installation

PTE511RK
n
PTE1115RK
n
PTEL511RK
n
PTEL1115RK Installation Guide
Page 4

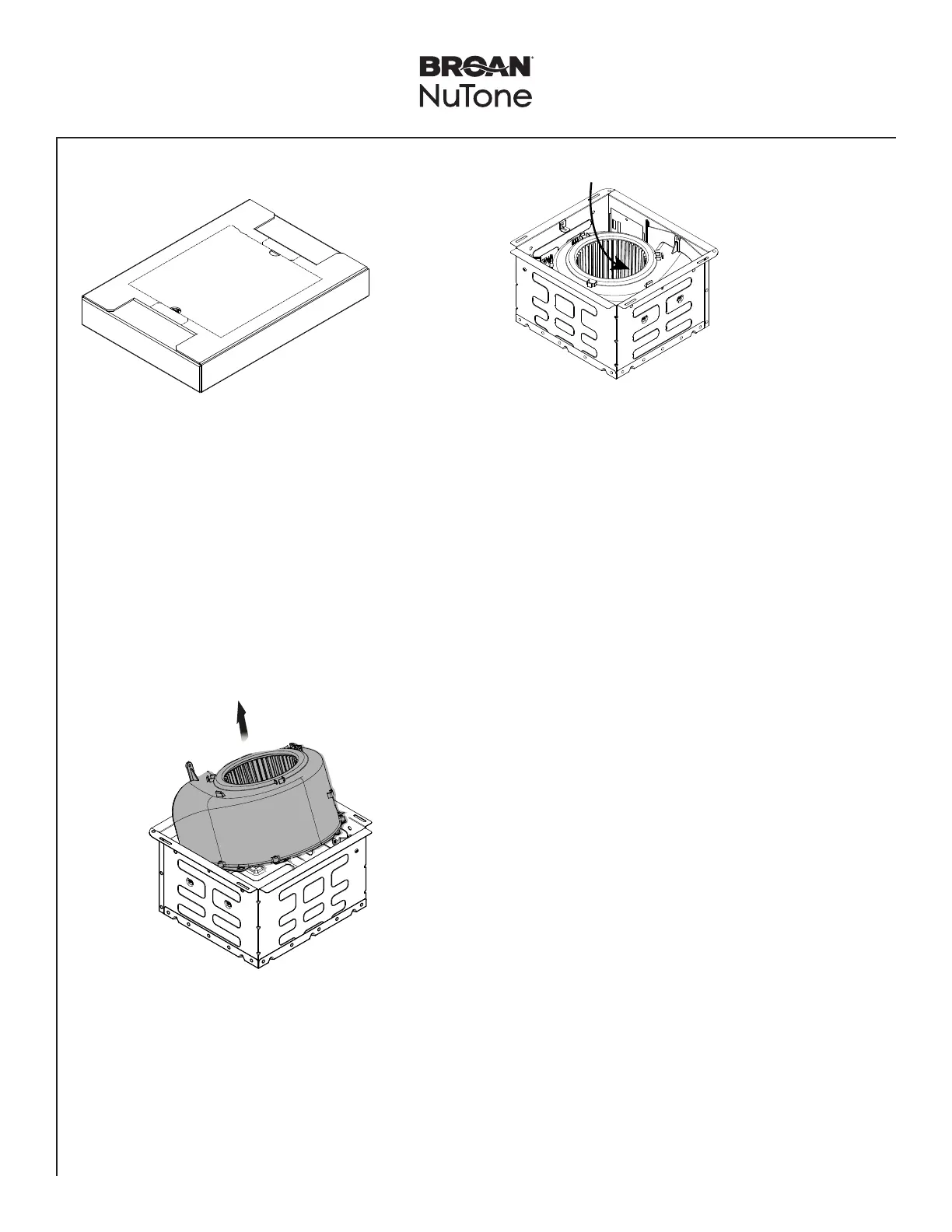

New Construction/Retrofit Installation
1
Remove Packaging
2
Remove Blower
Assembly
• Slide the Blower Assembly. Tilt the Blower Assembly.
• Remove and set aside the Blower Assembly.
Remove
Parts Bag from
Blower.
Remove
Grille from Grille Filler.
Lit Models Only:
Remove Jumper
Cable from Grille
Filler.
Tilt blower to
clear metal tabs.
