New Construction Installation
3

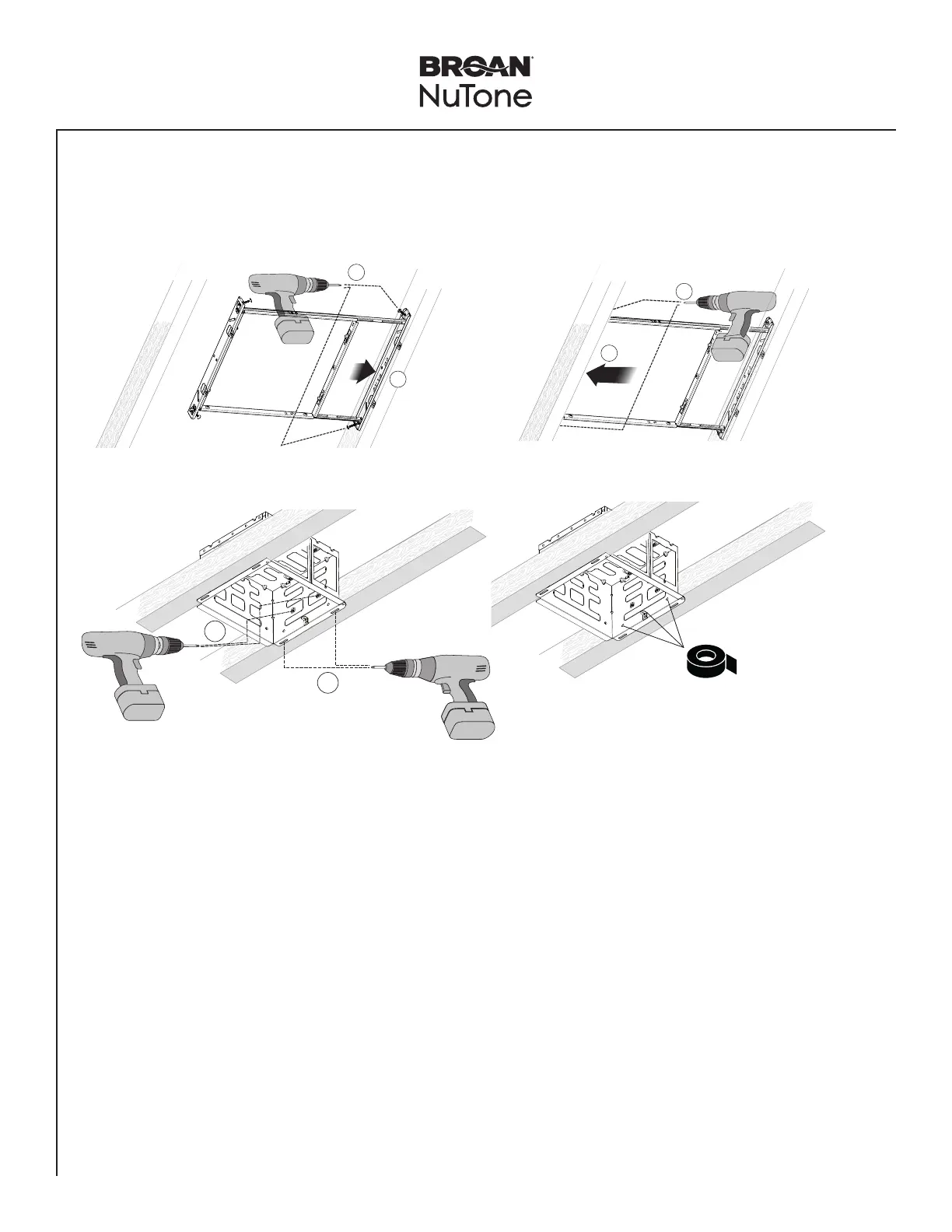

Mount Housing
NOTE: Use 4 screws preattached to mounting frame to mount to
joist.
Using Mounting Frame (Recommended Installation)
Directly to Joist (Alternate Installation)
1
2
NOTE: Use 4 screws preattached to mounting frame to mount to joist.
1
2
4
3
Mount the frame 1/2" above the bottom of the joist. Housing flange should be level with the joist when installed.
Make sure UP
on the mounting
frame is oriented
correctly.
NOTE: If using alternate
installation method
without mounting frame,
tape off mounting frame
holes on the housing,
on both sides, using
foil tape to prevent air
leakage.
