Quadro K4000/K5000/K6000 SDI DU-05337-002_v01
|
20
Chapter 03 : Windows–Using the Graphics to SDI Control Panel
Understanding the Status Indicators
The LEDs on the NVIDIA SDI Output Card connector bracket indicate the status of the
SDI outputs and the synchronization input signals.

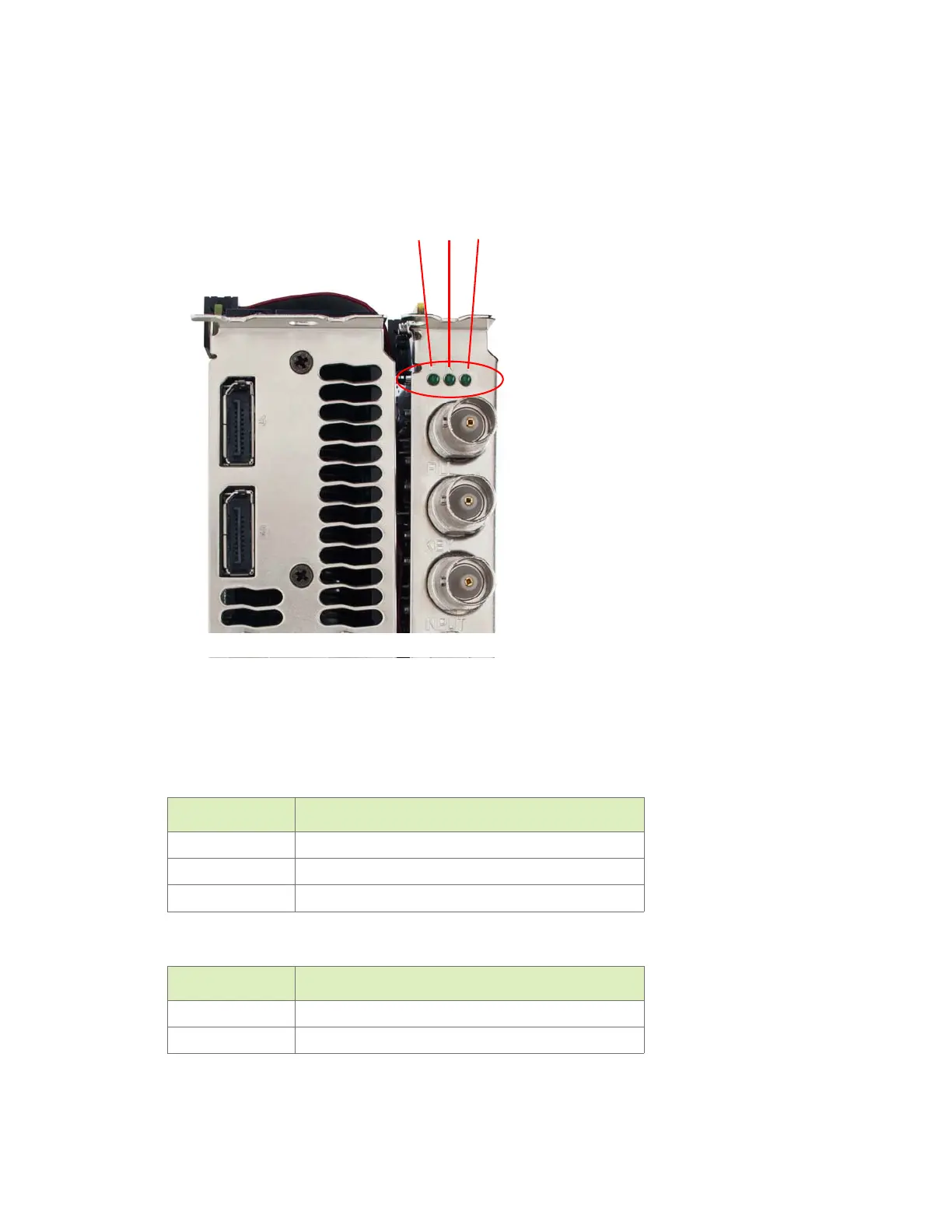

Figure 3.1 SDI Connection LED Indicators
The activity of the LEDs indicates the signal status as follows:
FILL or KEY Out
Input
Status Meaning
Off (gray) SDI output is not in use
Steady Green SDI output has power.
Blinking Green SDI output is active.
Status Meaning
Off (gray) SDI input synchronization is disabled.
Blinking Green Valid SDI synchronization signal is detected.
SDI Output Card LEDs
FILL KEY INPUT
