Quadro K4000/K5000/K6000 SDI DU-05337-002_v01
|
21
Chapter 03 : Windows–Using the Graphics to SDI Control Panel
Advanced Adjustments
This section describes the following additional settings that you can control using the
Graphics to SDI Output page:
“Adjusting the Desktop Area” on page 21
“Applying Gamma Correction” on page 23
“Setting Up the Color Space Conversion” on page 24
“Synchronizing the SDI Output to an External Source” on page 19

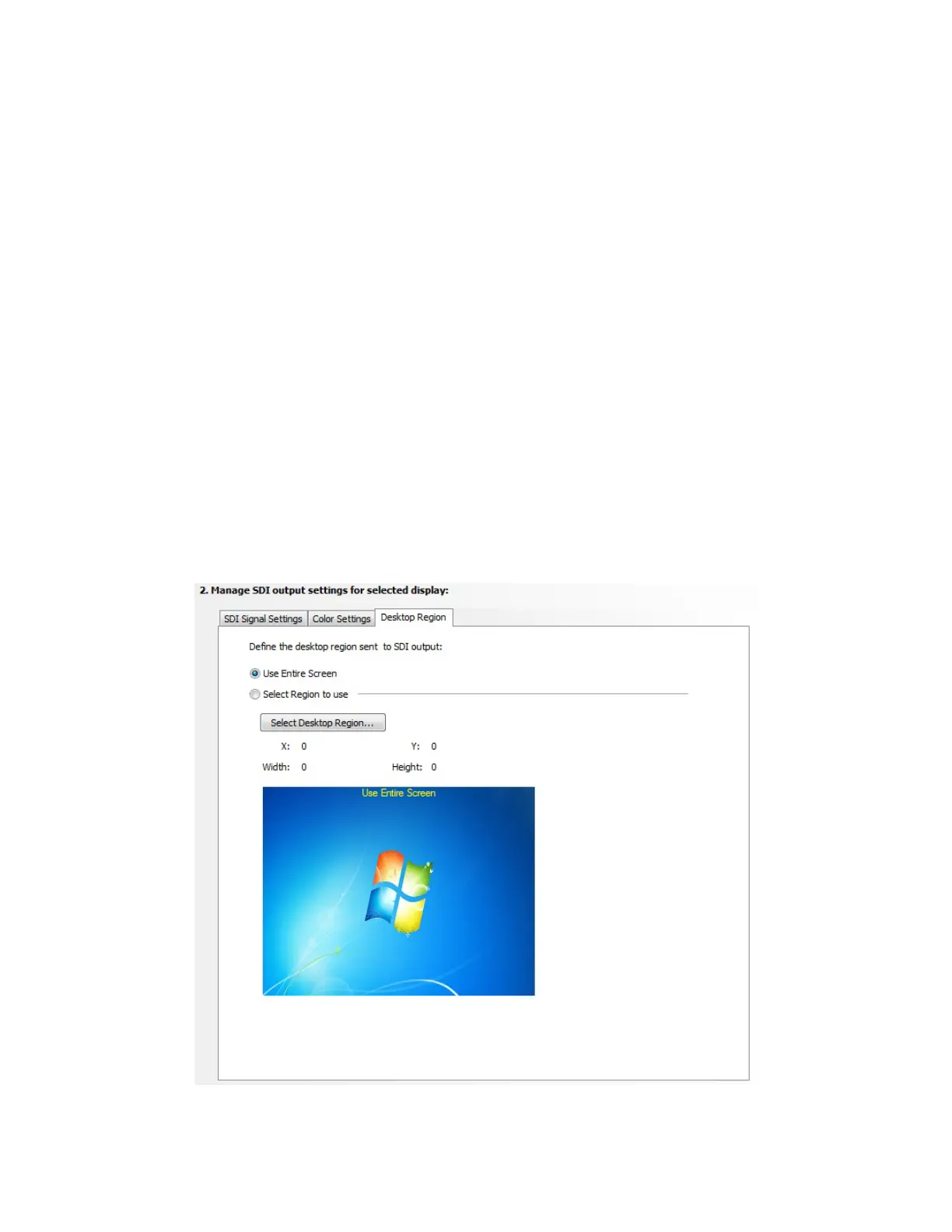

Adjusting the Desktop Area
By default, the entire desktop is converted to SDI output. If the desktop is smaller than
the size of the SDI output, it will be scaled to fit. If the desktop is larger than the SDI
output, it will be cropped to fit.
Instead of using the entire desktop, you can specify a region of the desktop to convert to
SDI output as follows:
1 From the NVIDIA Control Panel navigation tree pane, under Workstation, click
Manage SDI Output Settings and select the Desktop Region tab.
