Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 9
Chapter 02 : NVIDIA Graphics-to-SDI
Operating NVIDIA SDI
The following sections provide an overview of SDI operation:
 “Understanding the Connections” on page 9
 “About the Software” on page 11
 “Recommended Operating Practices” on page 12
Understanding the Connections

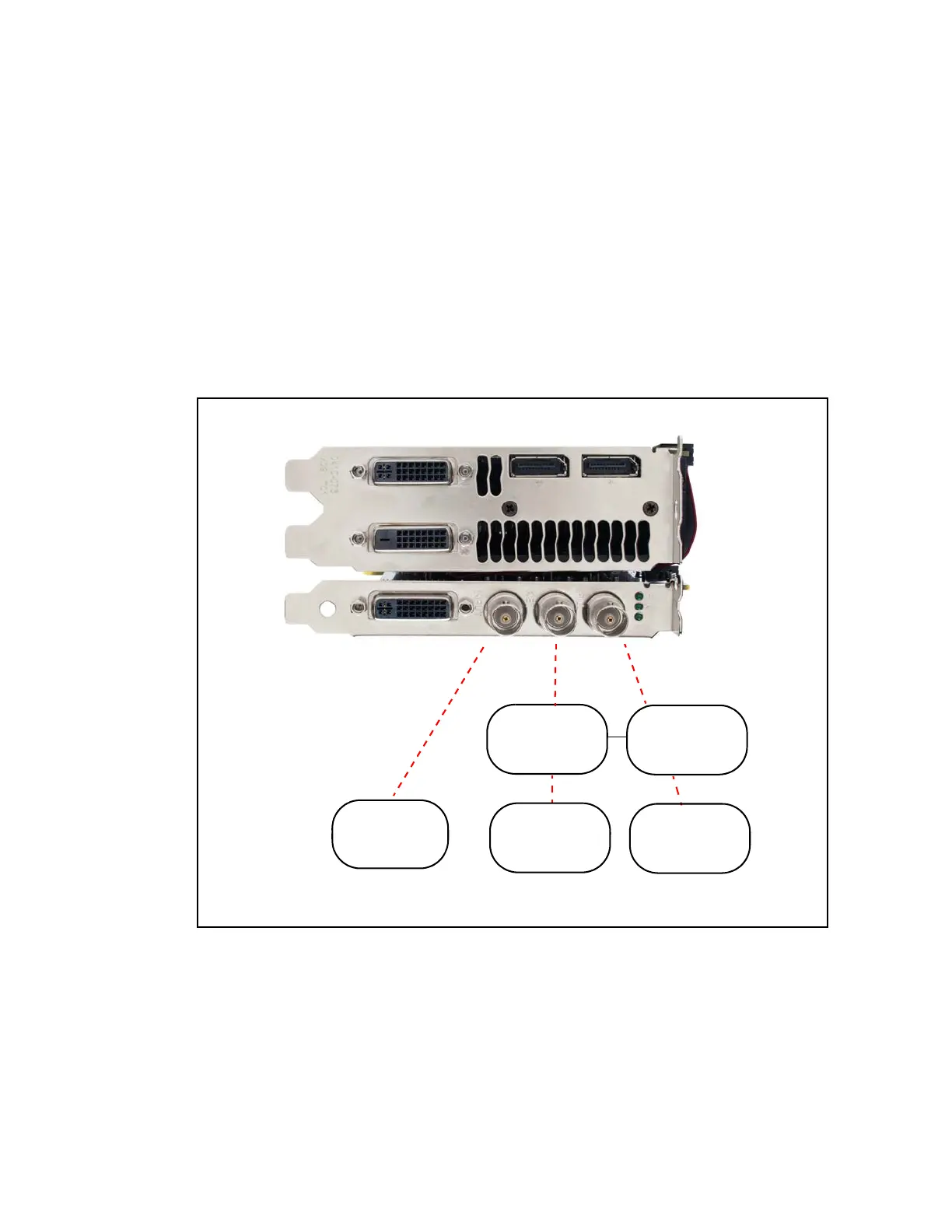

Figure 2.4 shows the available SDI and external sync connectors on the NVIDIA Quadro
SDI.
Figure 2.4 NVIDIA Quadro SDI Connectors
Key portion
of a dual-link
SDI output
Fill portion
of a dual-link
SDI output
- or -
SDI/Composite
Sync Signal
“FILL”“KEY”
“INPUT”
Fill portion
of a single-link
SDI output
Fill portion
of a single-link
SDI output

Nvidia Quadro K4000 Specifications

General

CUDA Cores	768
GPU Memory	3 GB GDDR5
Memory Interface	192-bit
Memory Bandwidth	134 GB/s
Maximum Power Consumption	80 W
Form Factor	Single-slot
Display Connectors	2x DisplayPort, 1x DVI
