Quadro K4000/K5000/K6000 SDI DU-05337-002_v01
|
6
Chapter 02 : NVIDIA Graphics-to-SDI
Installing the NVIDIA Quadro SDI
Step 1: Install the NVIDIA Quadro SDI

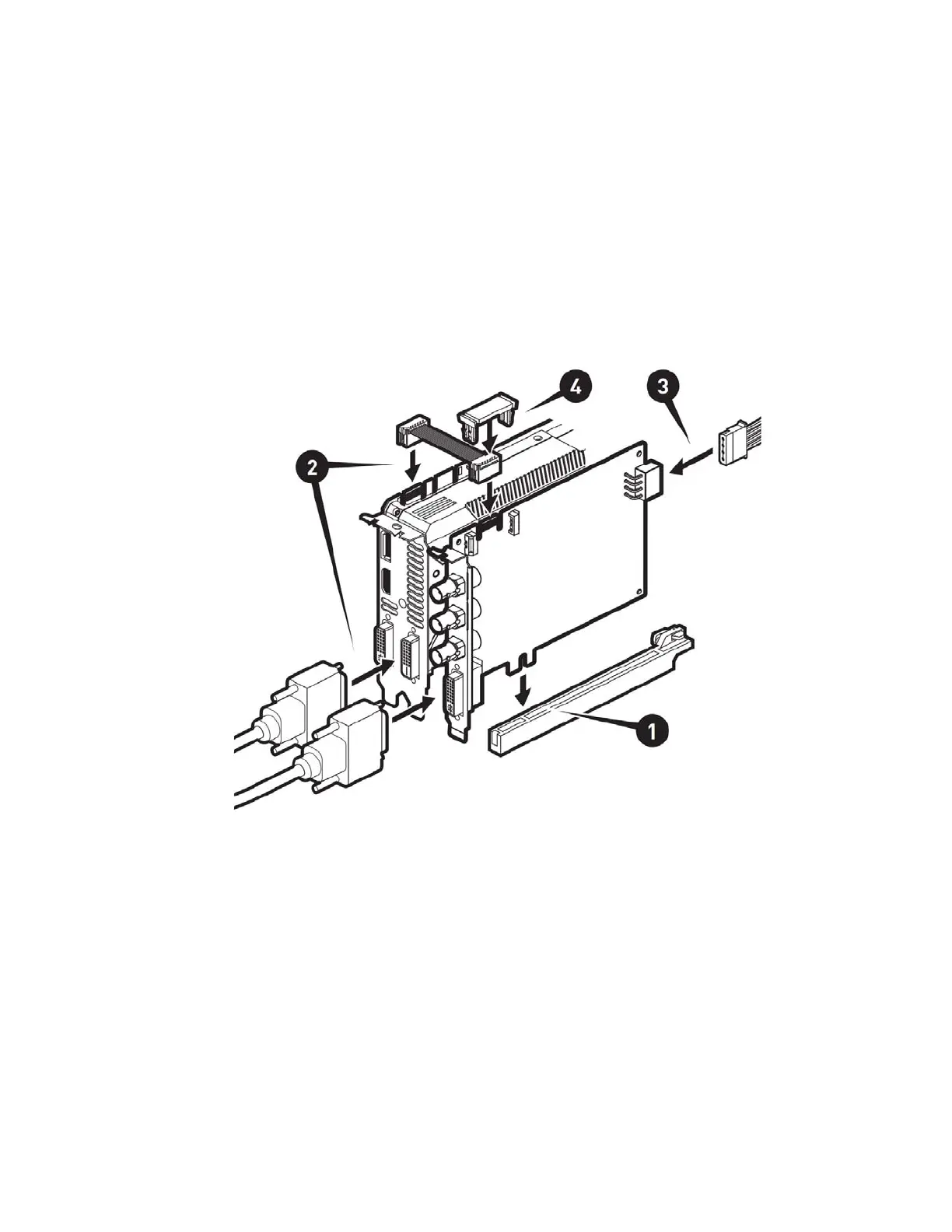

1 Insert the Quadro SDI Output board into a free PCI or PCI Express slot.
2 Connect the included cables between the SDI Output board and Quadro GPU.
Make sure to use the connector labeled "SDI" or "SDI | SYNC" on the Quadro board
3 Connect the Molex HDD power cable to the SDI Output board.
4 Attach the included retention clips to the SDI Output board and Quadro GPUs.
5 Close the chassis cover.
