Quadro K4000/K5000/K6000 SDI DU-05337-002_v01
|
7
Chapter 02 : NVIDIA Graphics-to-SDI
Step 2: Connect the Auxiliary Cabling and Monitor
1 Connect the DVI Connectors.
Connect one end of the DVI cable to the DVI connector on the SDI Output card, and
the other end to the DVI connector on the NVIDIA Quadro SDI card as shown in
Figure 2.1 and Figure 2.2.
The NVIDIA Quadro SDI will not work properly if the cable is connected to the other
digital connectors. .

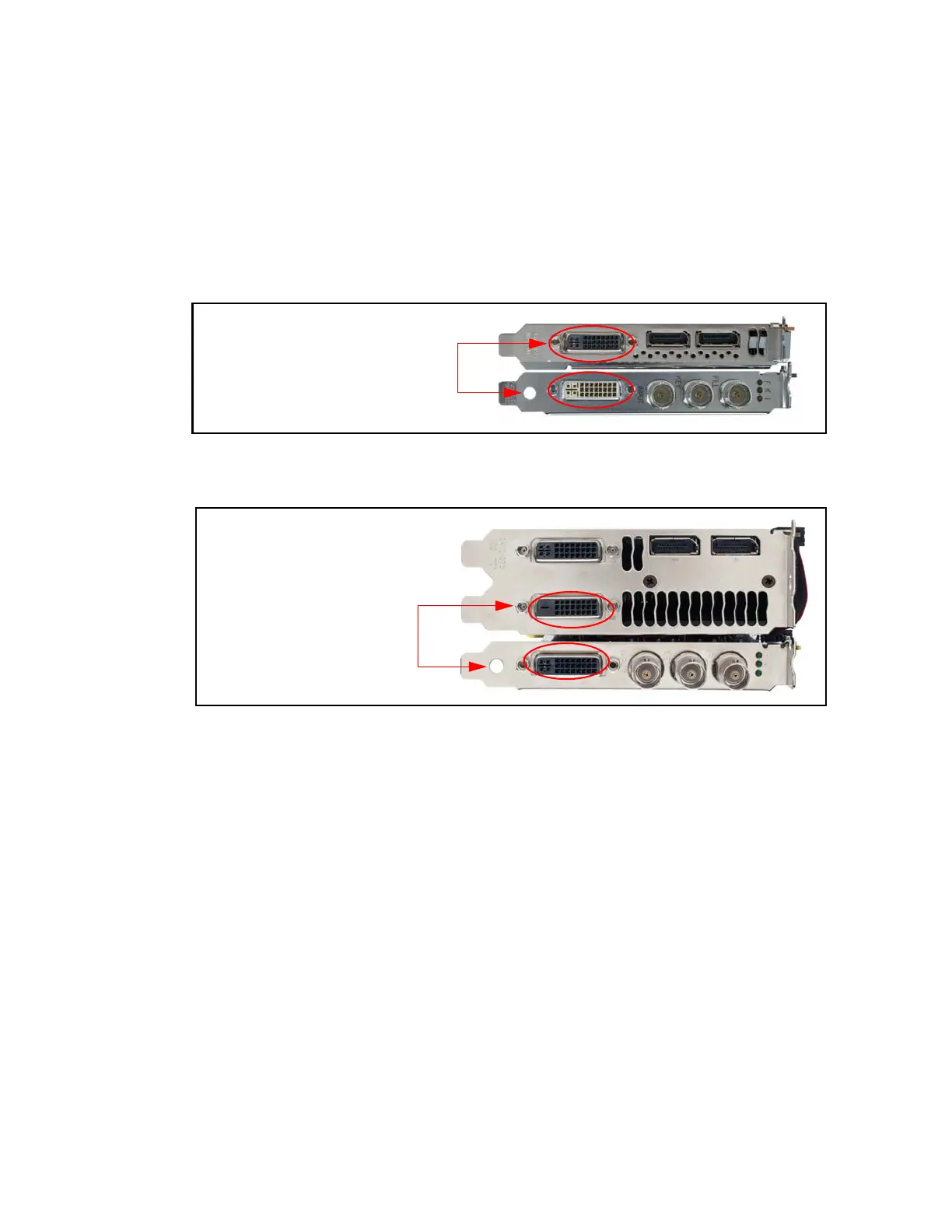

Figure 2.1 DVI Connection: SDI Output card to Quadro K4000
Figure 2.2 DVI Connection: SDI Output card to Quadro K5000/K6000
SDI-Output Card DVI Connector
Quadro K4000 DVI connector
Quadro K5000/K6000
SDI-Output Card
DVI Connector
DVI Connector
